Highlights
◉ Dual Channel, 200 MSa/s, 14-bit Precision
◉ Up to 60 MHz Output
◉ ZeroSurge + VeriPoint Tech: Low Overshoot, Fast Edges, Ultra-Fine Detail
◉ 6 Modulation Types (AM/FM/PM/FSK/ASK/PSK)
◉ Built-in 7-Digit Frequency Counter (100mHz–100MHz)
◉ True Point-by-Point Arbitrary Waveform Output
◉ Frequency Sweep & Touchscreen Control
The TSG3020 and TSG6020 are dual-channel function/arbitrary waveform generators featuring DDS technology, 200 MSa/s sampling rate, and 14-bit resolution. The TSG3020 supports up to 30 MHz output frequency, while the TSG6020 extends to 60 MHz—both providing flexible and accurate amplitude control over waveforms, duty cycle, and edge timing. Ideal for R&D, education, and automated testing.
Features
-
Dual-channel outputoffers amplitude ranges that are dependent on load and frequency, with specific specifications as follows:
This design ensures compatibility with a wide range of complex signal generation scenarios.• 2 mVpp~20 Vpp (high impedance, ＜10 MHz)• 2 mVpp~10 Vpp (high impedance, ＞10 MHz)• 1 mVpp~10 Vpp (50 Ω, ＜10 MHz)• 1 mVpp~5 Vpp (50 Ω, ＞10 MHz)
- 200 MSa/s sampling rate with 14-bit vertical resolution ensures high-fidelity waveform reproduction and minimal distortion.
- Generates standard waveforms (sine, square, ramp, pulse, noise, DC) and supports user-defined arbitrary waveforms.

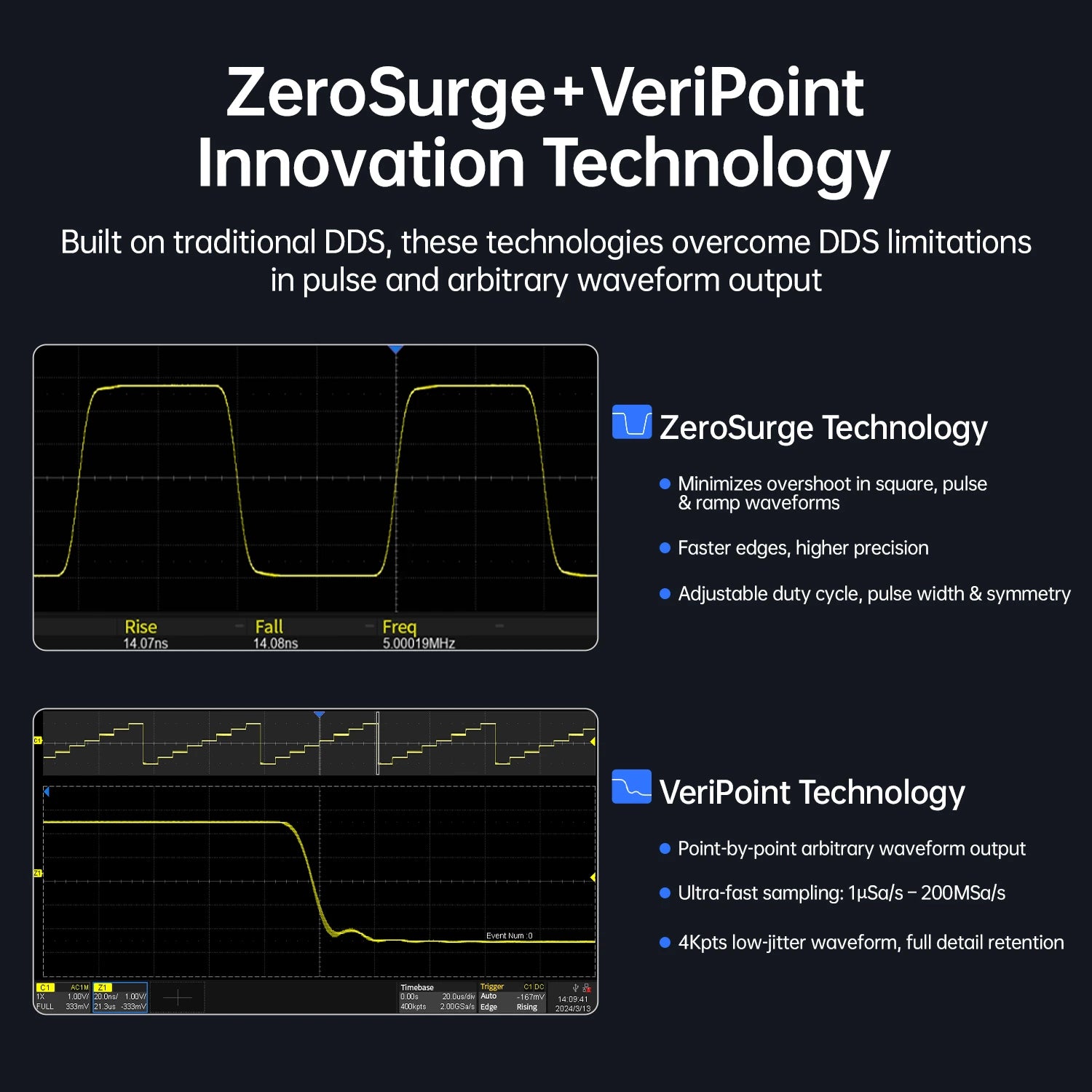

- ZeroSurge technology minimizes overshoot in square, pulse, and ramp waveforms, delivering ≤1% overshoot and ≤13.5 ns rise/fall times for sharper edges and higher precision.
- VeriPoint technology enables true point-by-point arbitrary waveform output with sampling rates from 1 µSa/s to 200 MSa/s, preserving full waveform detail with low jitter (<200 ps).
- Comprehensive modulation support: AM, FM, PM, FSK, ASK, and PSK, suitable for digital communication and RF testing.
- Frequency sweep function with linear/logarithmic modes and sweep time from 1 ms to 500 s ±0.1%, ideal for filter characterization and system response analysis.
- Built-in 7-digit frequency counter measures frequency, period, and duty cycle of TTL-level signals across 100 mHz to 100 MHz with ±51 ppm accuracy.
- High-precision output: 1 mVpp to 10 Vpp (into 50 Ω), phase noise ≤ -125 dBc/Hz @ 10 MHz (10 kHz offset), and harmonic distortion < -40 dBc @ 30–60 MHz.
- 4.3" TFT-LCD touchscreen combined with physical buttons enables intuitive control and fast parameter adjustment in lab or field environments.
- Real-time waveform preview and status display on the screen for clear monitoring during setup and operation.
- Robust output protection includes channel isolation, grounding safety, and TTL-compatible sync/output, ensuring stable performance under demanding conditions.
- High-performance cooling system with aluminum heat sink and quiet fan maintains thermal stability during extended use.
- Non-volatile memory stores up to 24 custom arbitrary waveforms for instant recall without reconfiguration.
- Supports multiple operating modes: continuous, gated output, modulation, and sweep, offering maximum flexibility for automated test systems.
Package List:

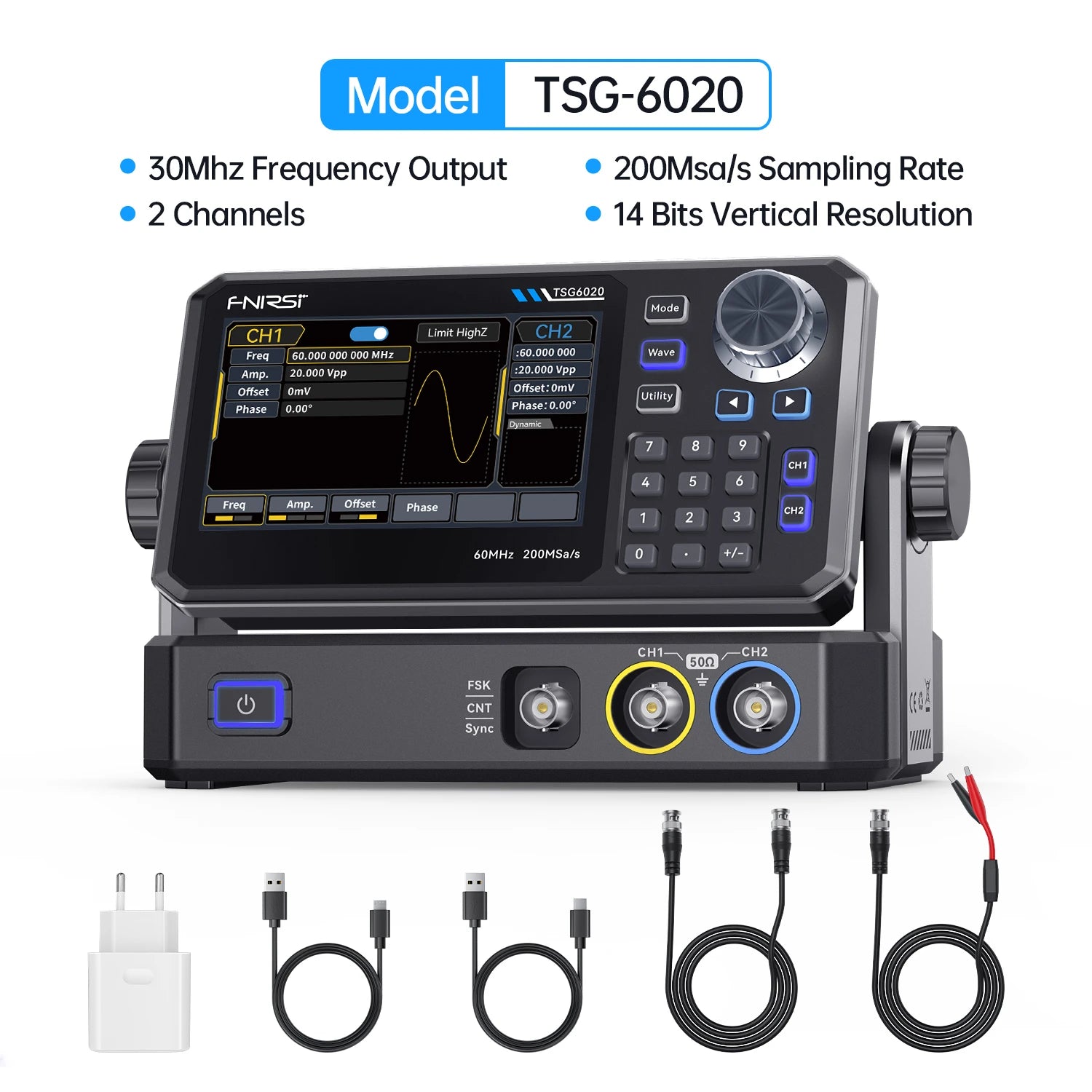

Model TSG6020
◉ TSG6020 Signal Generator
◉ Charging Adapter (US or EU Plug)
◉ Type-C Charging Cable
◉ Data Cable
◉ Test Lead Cable
◉ Alligator Clips
◉ User Guide
Model TSG3020
◉ TSG3020 Signal Generator
◉ Charging Adapter (US or EU Plug)
◉ Type-C Charging Cable
◉ Data Cable
◉ Test Lead Cable
◉ Alligator Clips
◉ User Guide
