Highlights
◉ 10,000-Count True RMS Measurement
◉ AC/DC Current Measurement up to 600A
◉ Bluetooth App Connectivity on DMC-600 Only
◉ Inrush Current Testing for Motor Startup Checks
◉ 2.0-Inch Full-Color TFT Display with Waveform Mode
◉ 1500mAh Rechargeable Battery with Type-C Charging
◉ Voltage, Resistance, Capacitance, Frequency & Temperature Testing

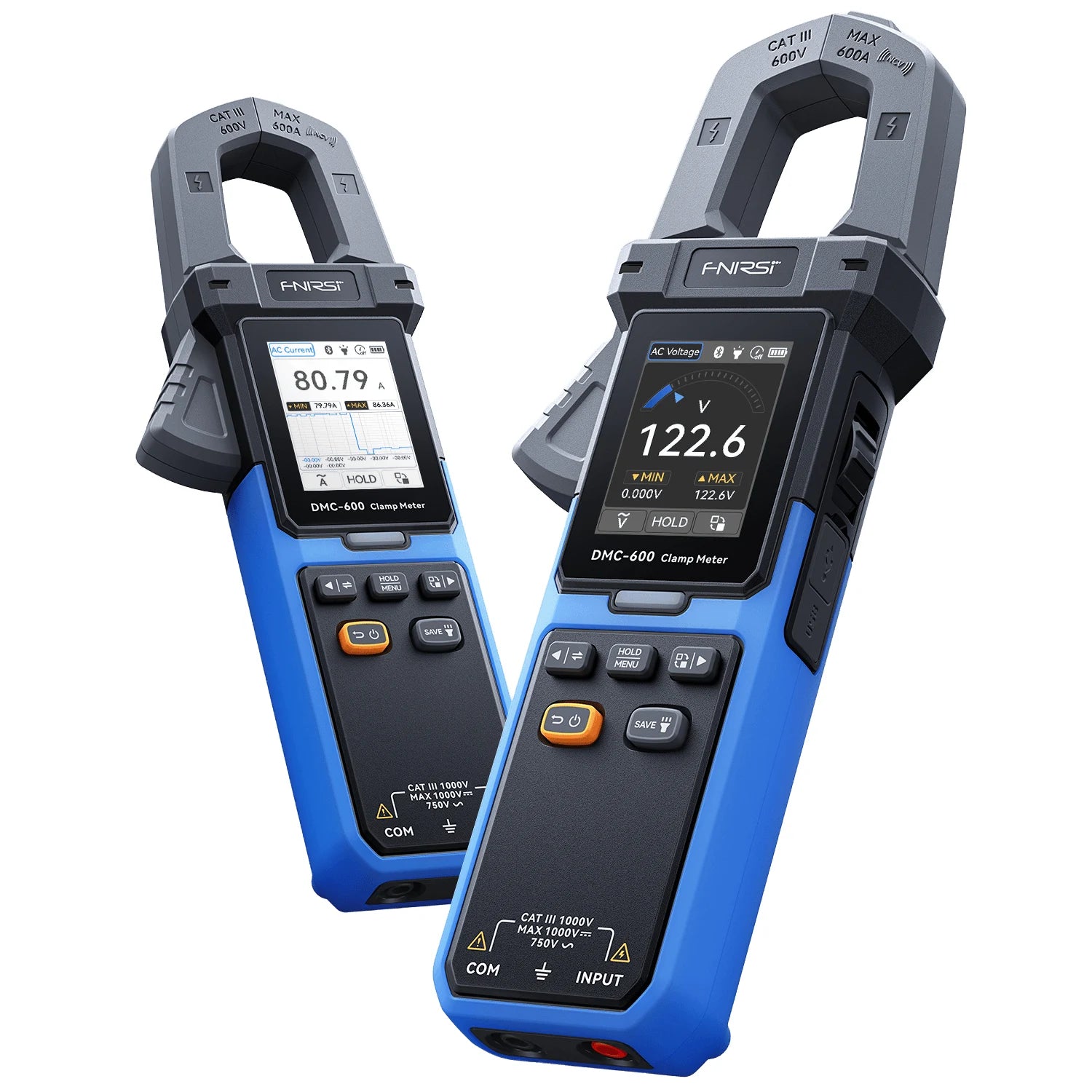

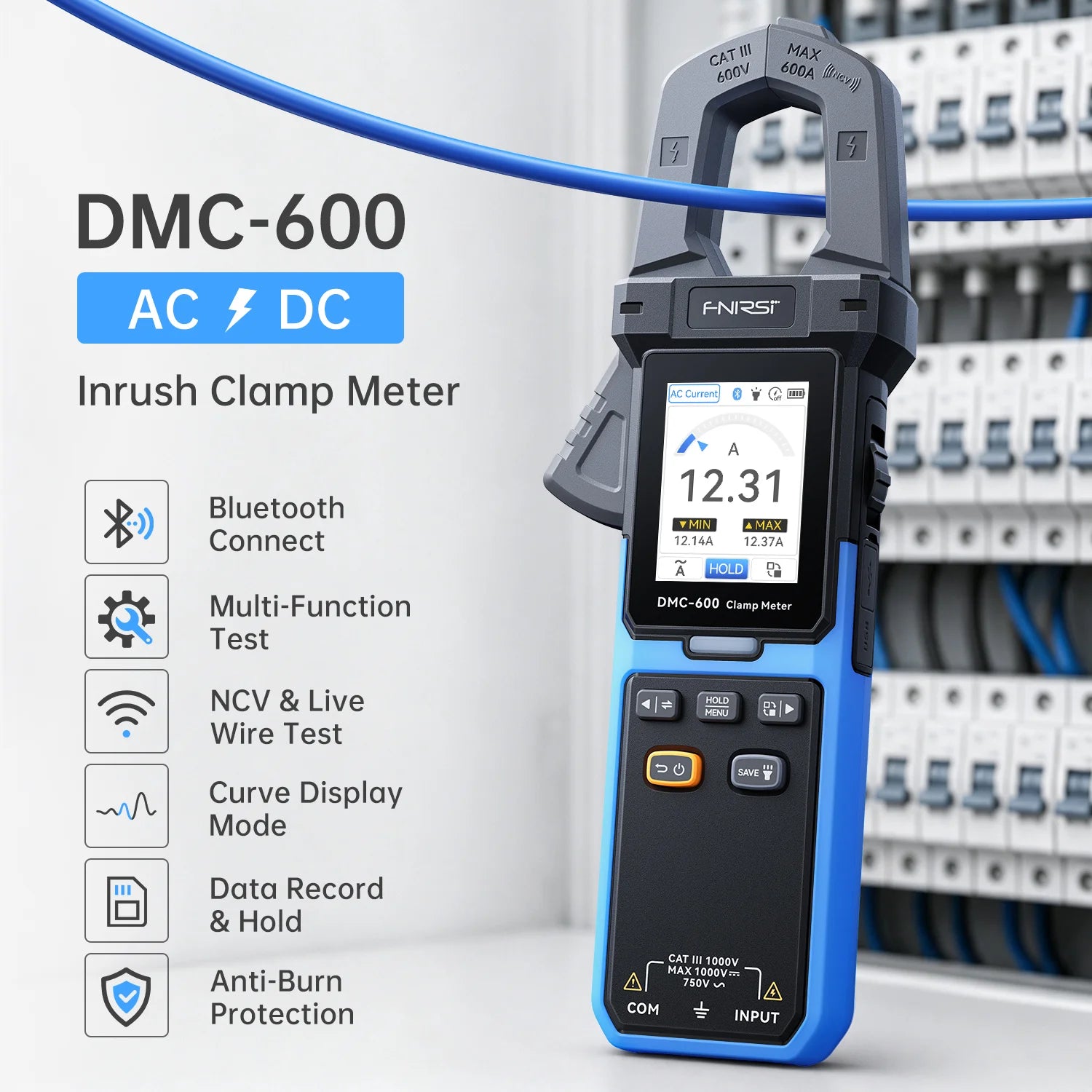

The FNIRSI DMC-600 Series is a 600A True RMS digital clamp meter featuring inrush current testing, real-time waveform display, a full-color screen, and Type-C charging, with optional Bluetooth app connectivity.
Key Features

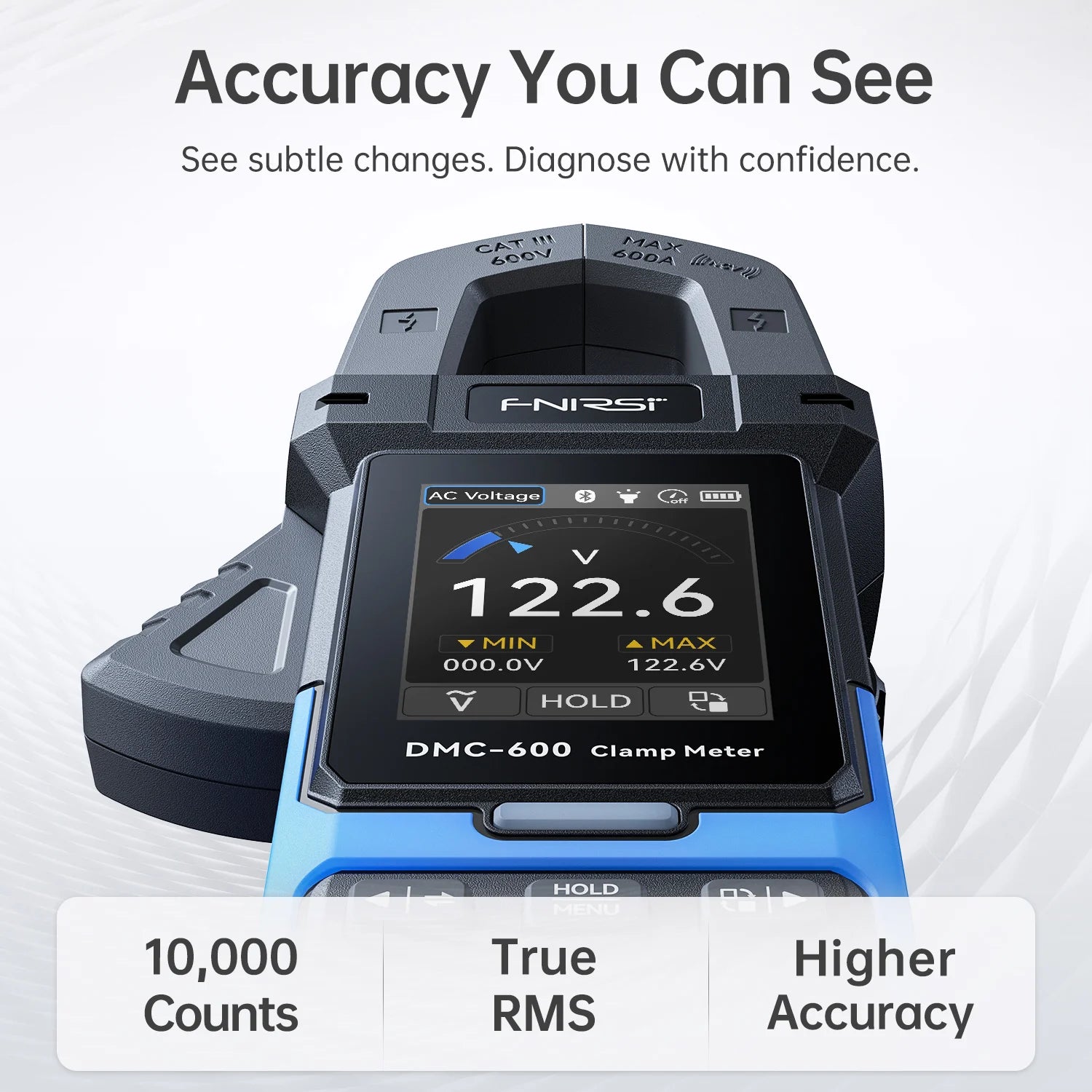

- 10,000-Count True RMS Measurement: Provides high-resolution readings for electrical testing and troubleshooting, with True RMS measurement for AC signals.
- AC/DC Current Measurement up to 600A: Measures AC and DC current from 0.01A to 600.0A, supporting electrical inspection and maintenance tasks.

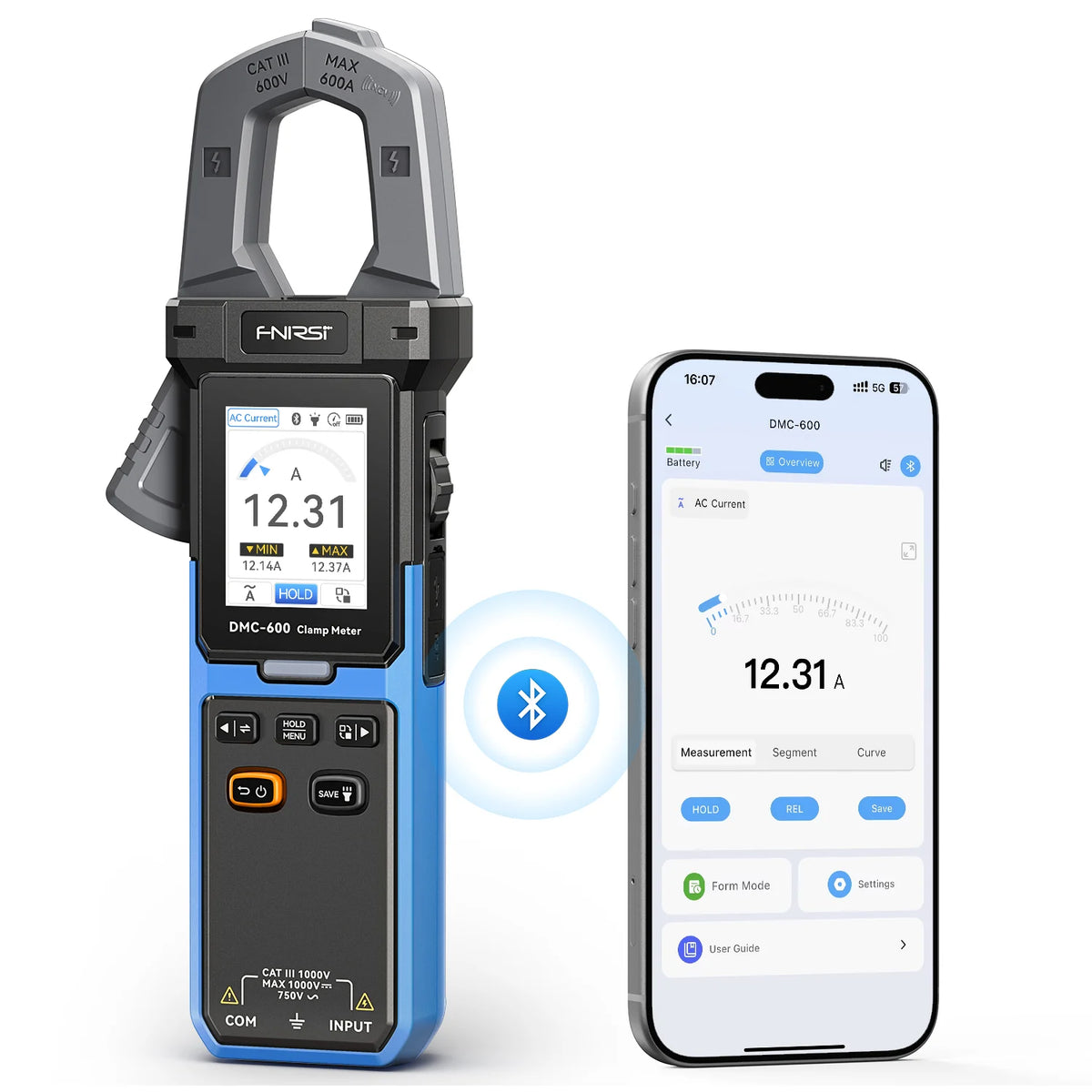

- Bluetooth App Connectivity on DMC-600: The DMC-600 supports Bluetooth connection to a mobile app for remote reading, data viewing and recording. The DMC-600A does not support Bluetooth.

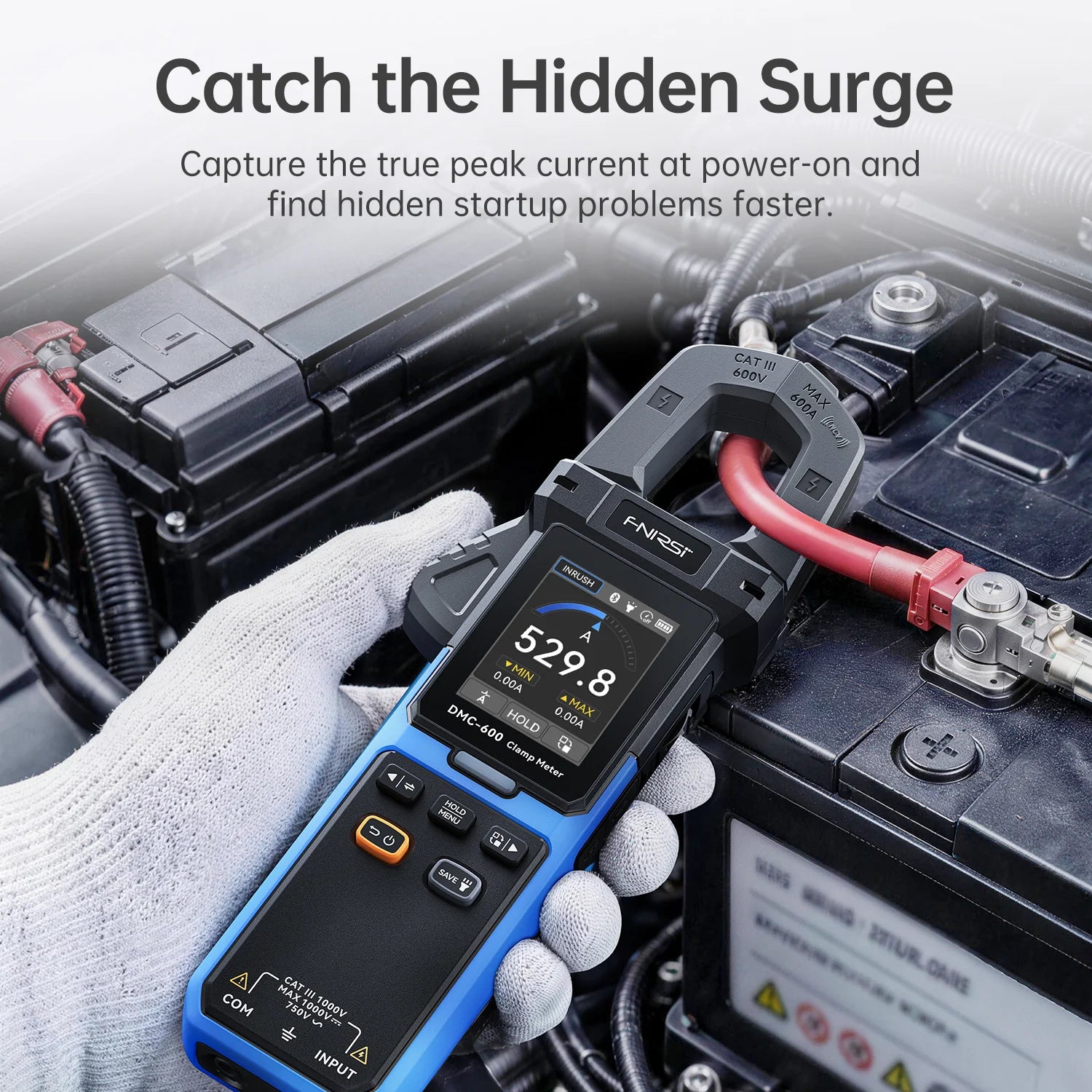

- Inrush Current Measurement: Supports inrush current testing to help check startup current when inspecting motors and other electrical equipment.

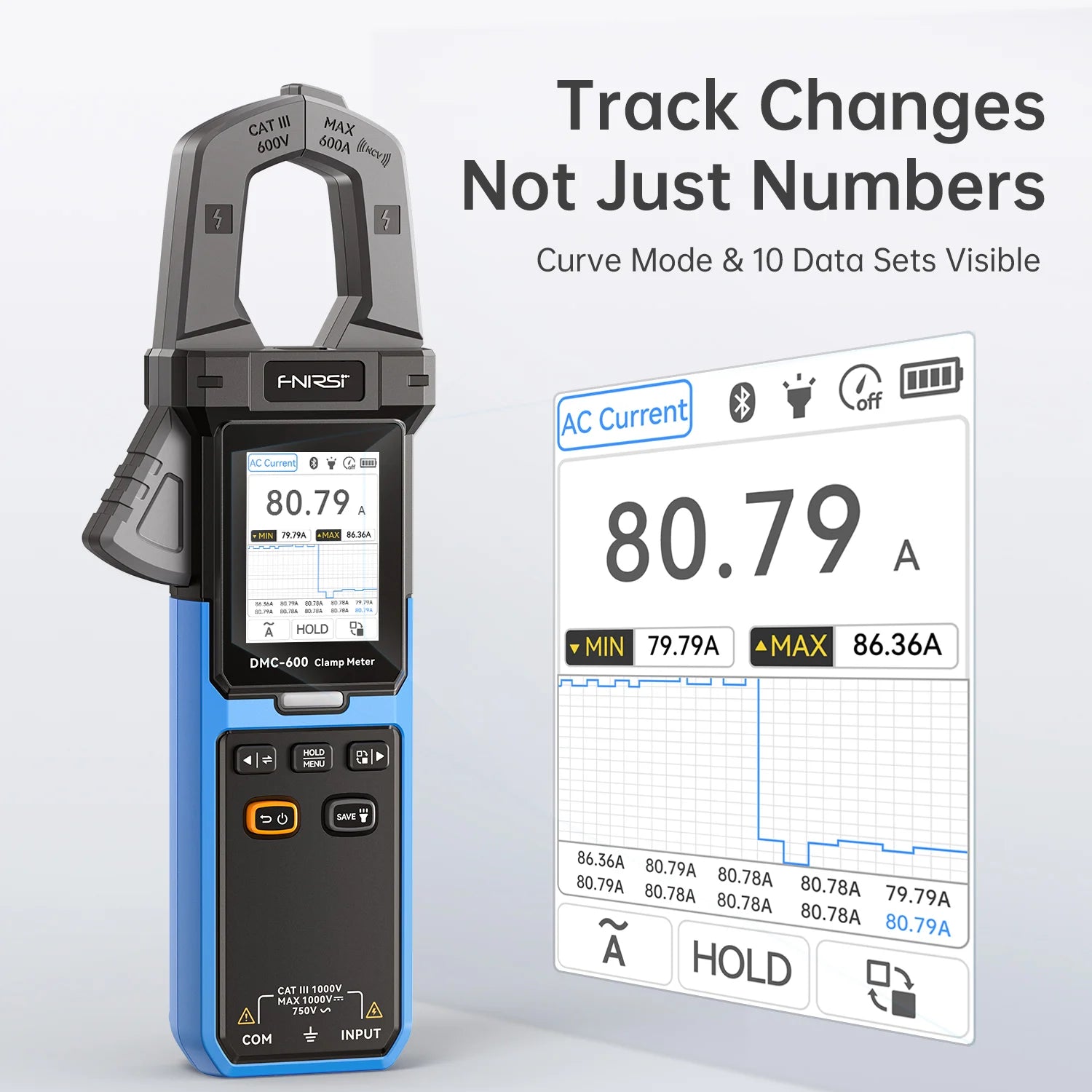

- Real-Time Waveform Display: Waveform Mode displays signal waveforms on the screen and supports viewing saved waveform records, helping users inspect changing electrical signals.
- 2.0-Inch Full-Color TFT Display: The color screen presents measurement readings and operating information for convenient viewing during electrical testing.
- Comprehensive Electrical Measurement Functions: Supports AC/DC voltage, AC/DC current, resistance, capacitance, frequency, temperature, continuity and diode testing for a wide range of electrical troubleshooting tasks.
- AC/DC Voltage Measurement: Measures AC voltage up to 750.0V and DC voltage up to 999.9V, supporting common electrical inspection and maintenance work.
- Resistance and Capacitance Testing: Measures resistance from 0.1Ω to 99.99MΩ and capacitance from 0.001nF to 99.99mF for component and circuit checks.
- Frequency and Temperature Measurement: Measures frequency from 0.001Hz to 9.999MHz and temperature from -55°C to 1300°C (-67°F to 2372°F).

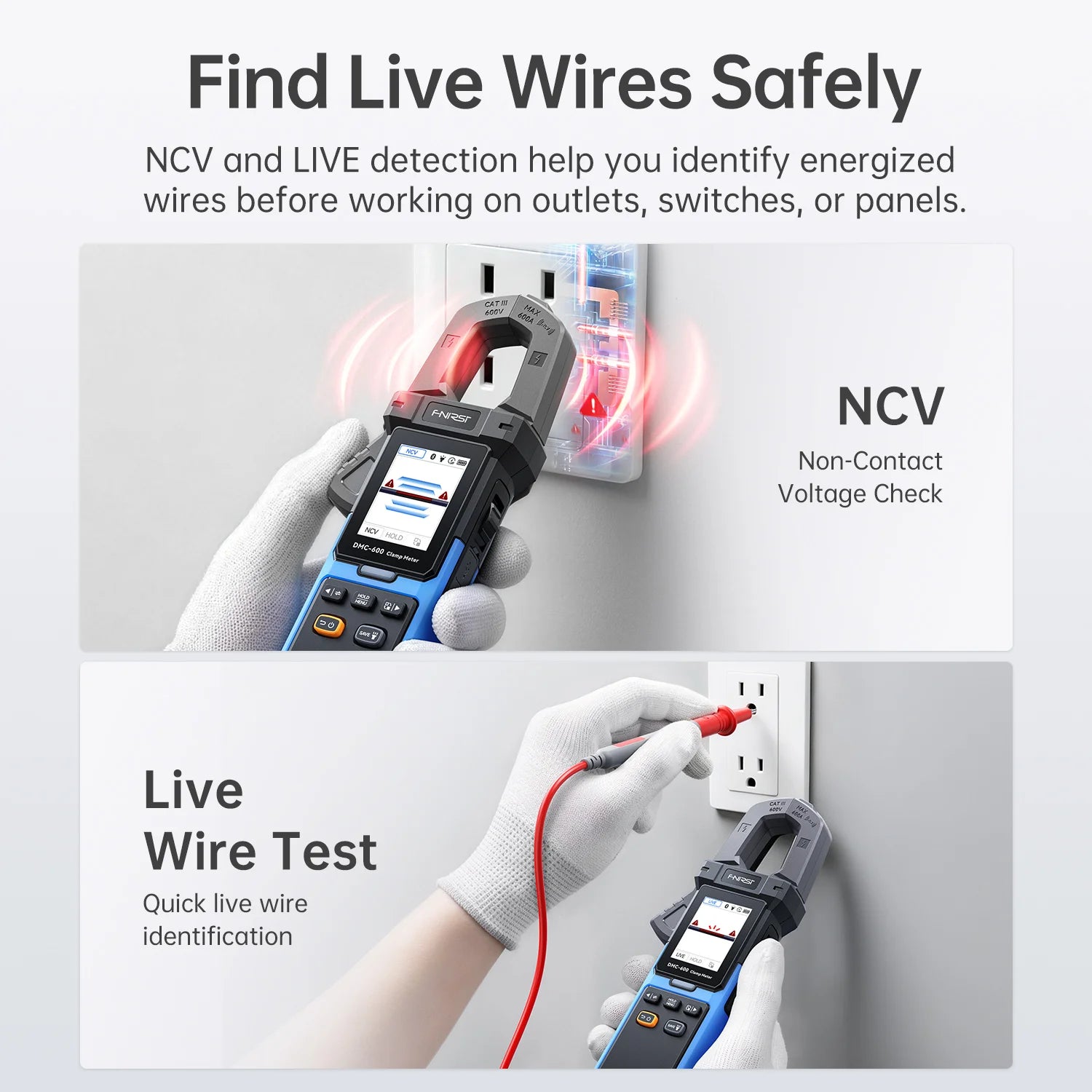

- NCV and LIVE Detection: Non-contact voltage (NCV) detection and single-probe LIVE testing help identify voltage presence during electrical inspection.
- Min/Max and Data Hold Functions: Min/Max recording and data hold help users review measurement changes and retain readings during testing.
- Continuity and Diode Testing: Continuity testing supports circuit checks, while diode mode displays the approximate forward voltage for component testing.

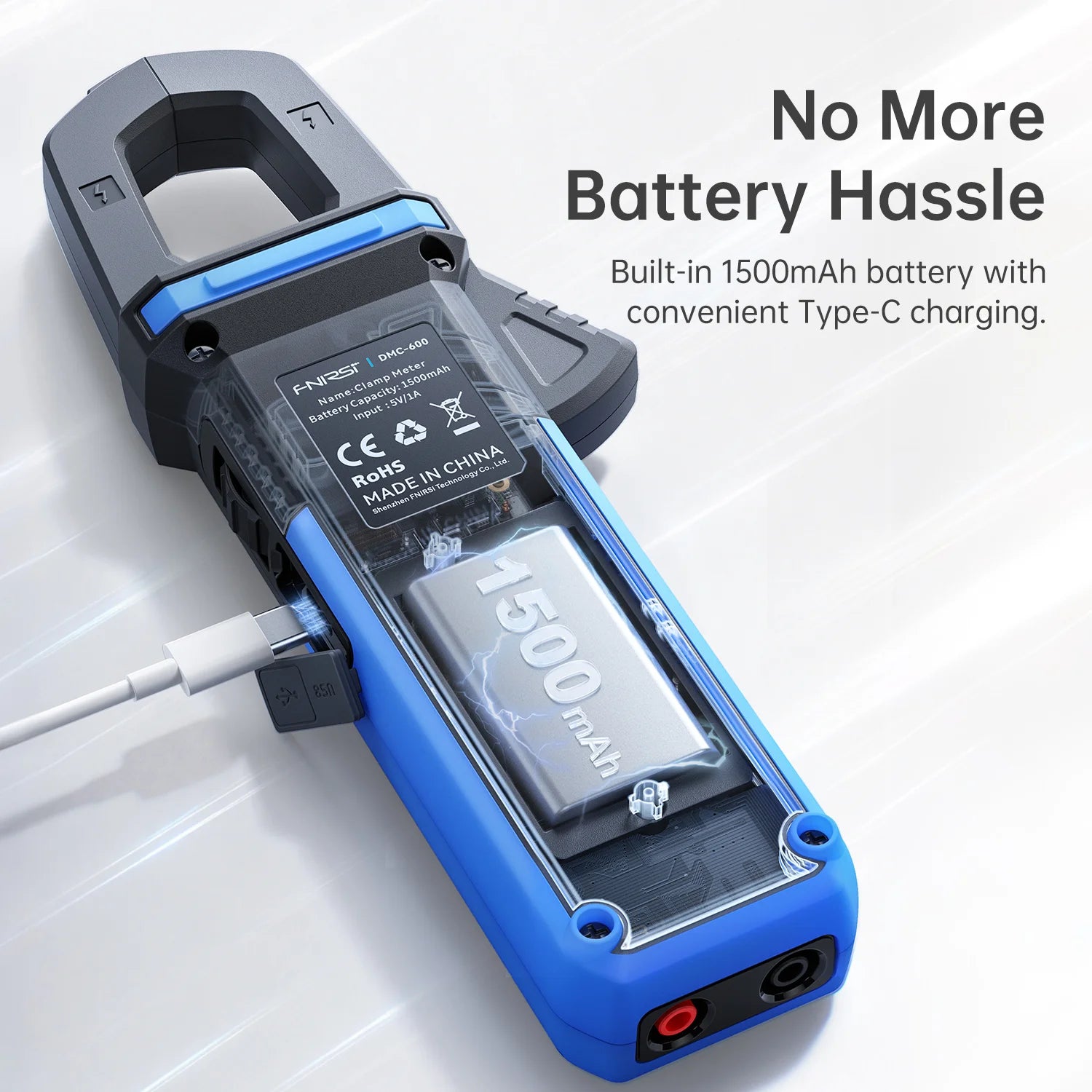

- Rechargeable Battery with Type-C Charging: The built-in 3.7V, 1500mAh lithium battery and Type-C charging interface provide rechargeable power for portable use.
- Additional Practical Functions: Includes a built-in flashlight, automatic power-off settings and firmware upgrade support through a Type-C data cable and computer.
Specifications
Model
DMC-600 / DMC-600A
Display
2.0-Inch Full-Color TFT
Battery
3.7V 1500mAh Rechargeable Lithium Battery
Clamp Jaw Opening
25mm
Display Count
10,000 Counts
Measurement Type
True RMS
Current Range
AC/DC: 0.01A–600.0A
Voltage Range
AC: 0.001V–750V
DC: 0.001V–999.9V
DC: 0.001V–999.9V
Resistance Range
0.1Ω–99.99MΩ
Capacitance Range
0.001nF–99.99mF
Frequency Range
0.001Hz–9.999MHz
Temperature Range
-55°C to 1300°C (-67°F to 2372°F)
Safety Rating
CAT III 1000V
Bluetooth
DMC-600 Only
Measurement Functions
AC/DC Voltage, AC/DC Current, Resistance, Capacitance, Frequency, Temperature, Continuity, Diode, NCV, LIVE
Additional Functions
Inrush Current, Waveform Mode, Data Hold, Min/Max, Flashlight
Charging Interface
Type-C
Auto Power-Off
Never / 5 / 15 / 30 Minutes
Weight
Approx. 250g
Firmware Upgrade
Supported

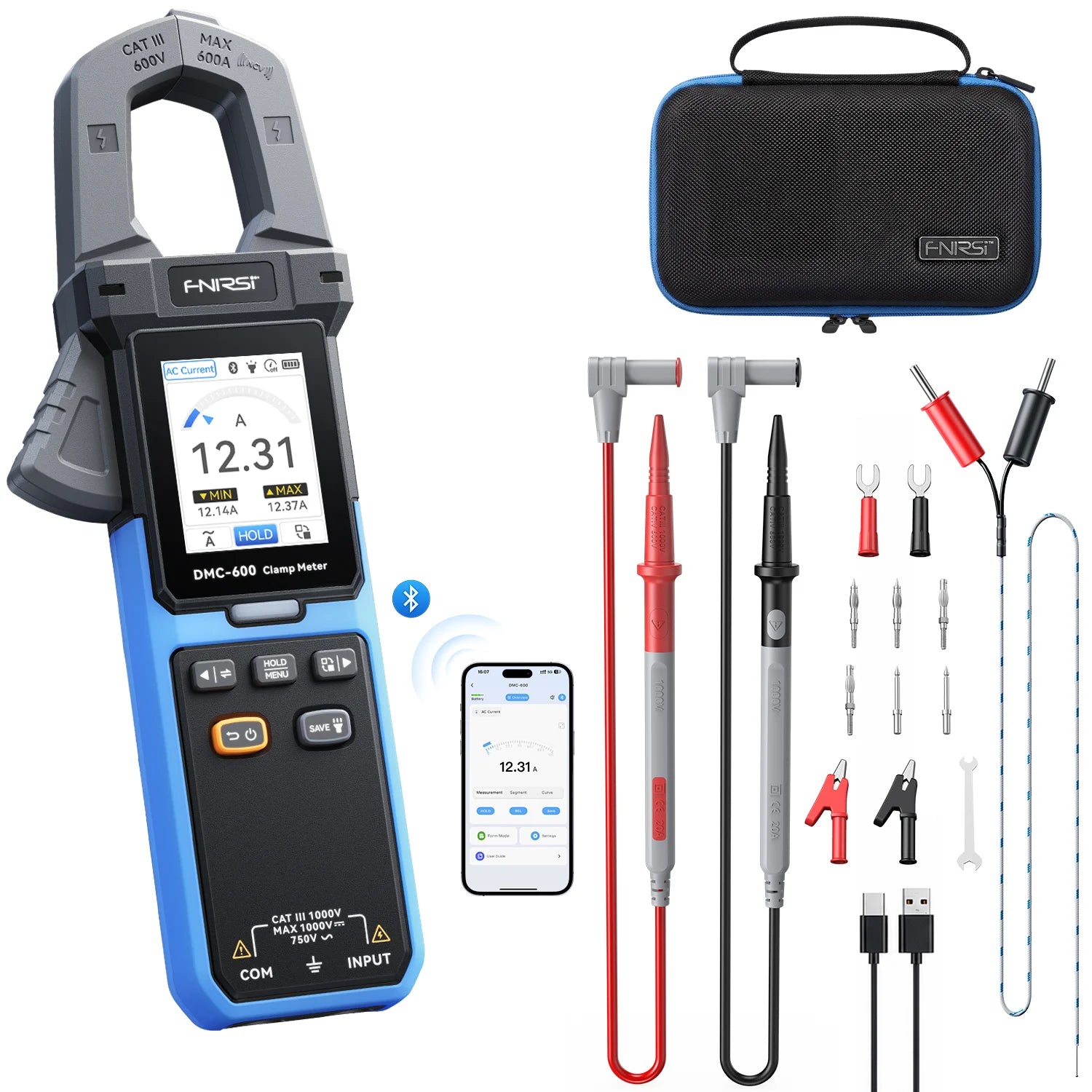

Package List:
◉ Clamp Meter
◉ Test Leads (Red & Black)
◉ Thermocouple Probe
◉ USB Data Cable
◉ Probe Accessories
◉ Storage Bag
◉ User Guide
◉ Test Leads (Red & Black)
◉ Thermocouple Probe
◉ USB Data Cable
◉ Probe Accessories
◉ Storage Bag
◉ User Guide
Package List:
◉ Clamp Meter
◉ Test Leads (Red & Black)
◉ Thermocouple Probe
◉ USB Data Cable
◉ Probe Accessories
◉ Storage Bag
◉ User Guide
◉ Test Leads (Red & Black)
◉ Thermocouple Probe
◉ USB Data Cable
◉ Probe Accessories
◉ Storage Bag
◉ User Guide
Using Environment and Precautions
The device should be stored in a soft case, and the operating environment should be at a temperature of -5~40℃, and the relative humidity should not exceed 80%.
The device should be stored in a clean and dry place to avoid moisture, mold, heavy pressure, mechanical damage,humidity and direct sunlight.
Avoid using in the rain or fog, avoid dropping or shocking.
When the screen on the LCD does not light up, it indicates that the voltage is too low, and it needs to be charged in time.
