Highlights

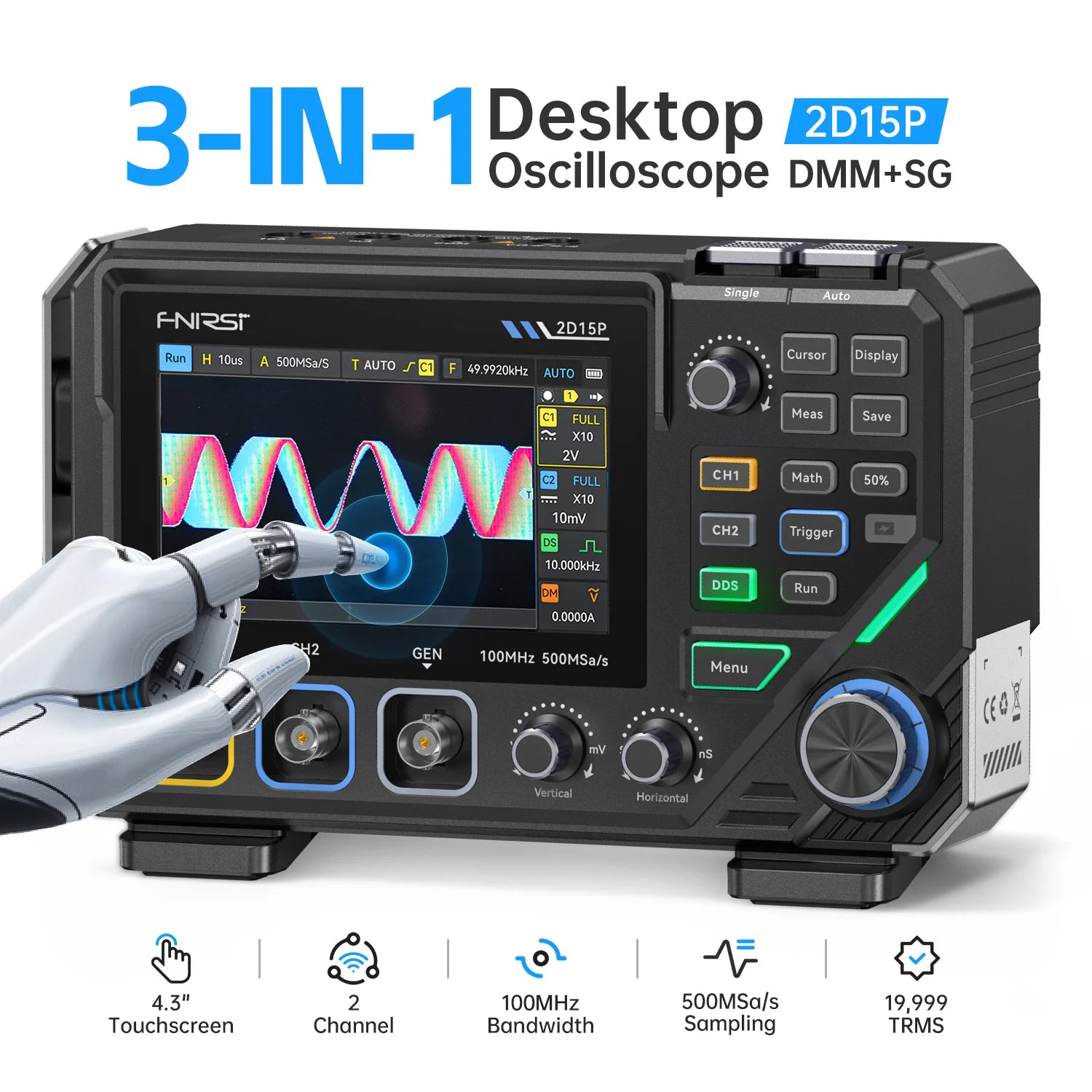

◉ 3-in-1: Oscilloscope · Multimeter · Signal Generator
◉ 4.3" IPS Touchscreen + Physical Keys
◉ 100MHz Bandwidth · 500MSa/s Sampling Rate
◉ 128-Level Grayscale & Color Temp Display
◉ ≈1200fps Waveform Capture Rate
◉ Infinite Persistence · XY Mode
◉ Support Math Functions for Real-Time Analysis

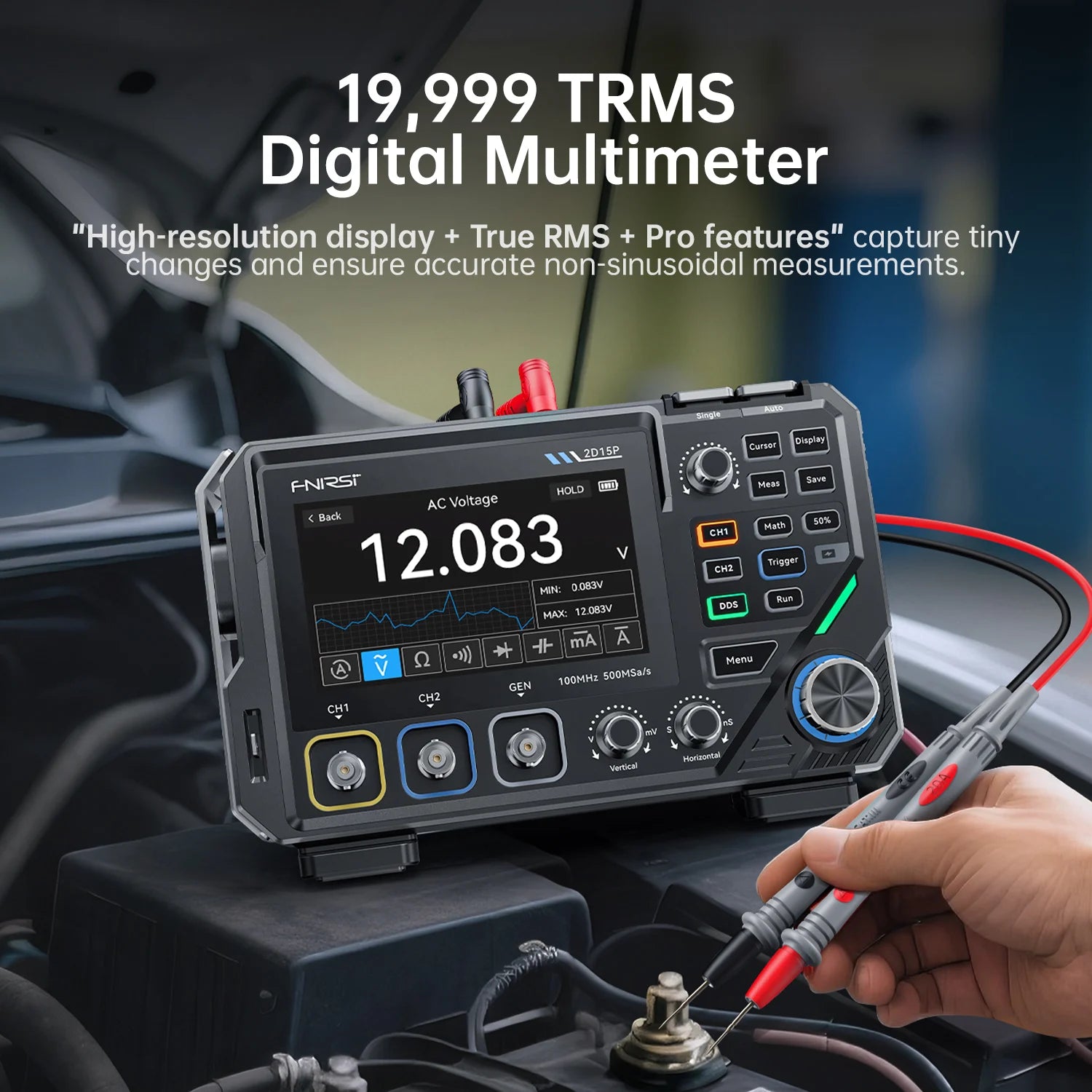

◉ 19999-Count True RMS Multimeter
◉ 5000mAh Battery · Type-C Charging

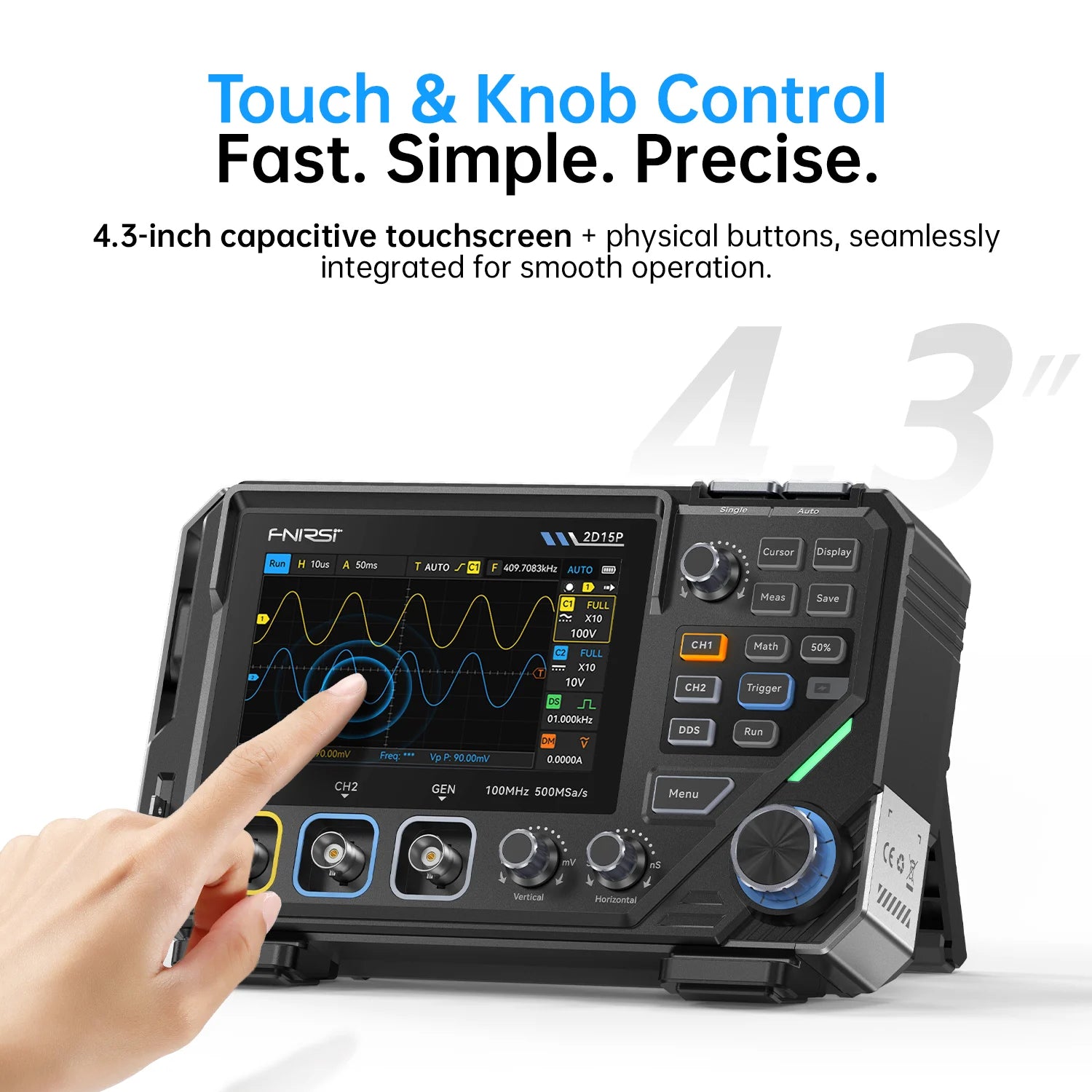

The FNIRSI 2D15P combines physical buttons with a 4.3" capacitive touchscreen. It offers 500 MSa/s sampling, 100 MHz single-channel bandwidth (50 MHz dual-channel), and 10K–1M memory depth. Features include 128-level grayscale display, 1200 fps waveform capture, math functions, 18 automatic measurements, a 10 MHz waveform generator, and a 19999 Counts True RMS multimeter supporting voltage, current, resistance, capacitance, diode, and continuity tests.
Key Features
- Dual-Channel Input — 100 MHz single-channel / 50 MHz dual-channel operation.
- Selectable Memory Depths — 10 K / 100 K / 1 M for flexible data capture.

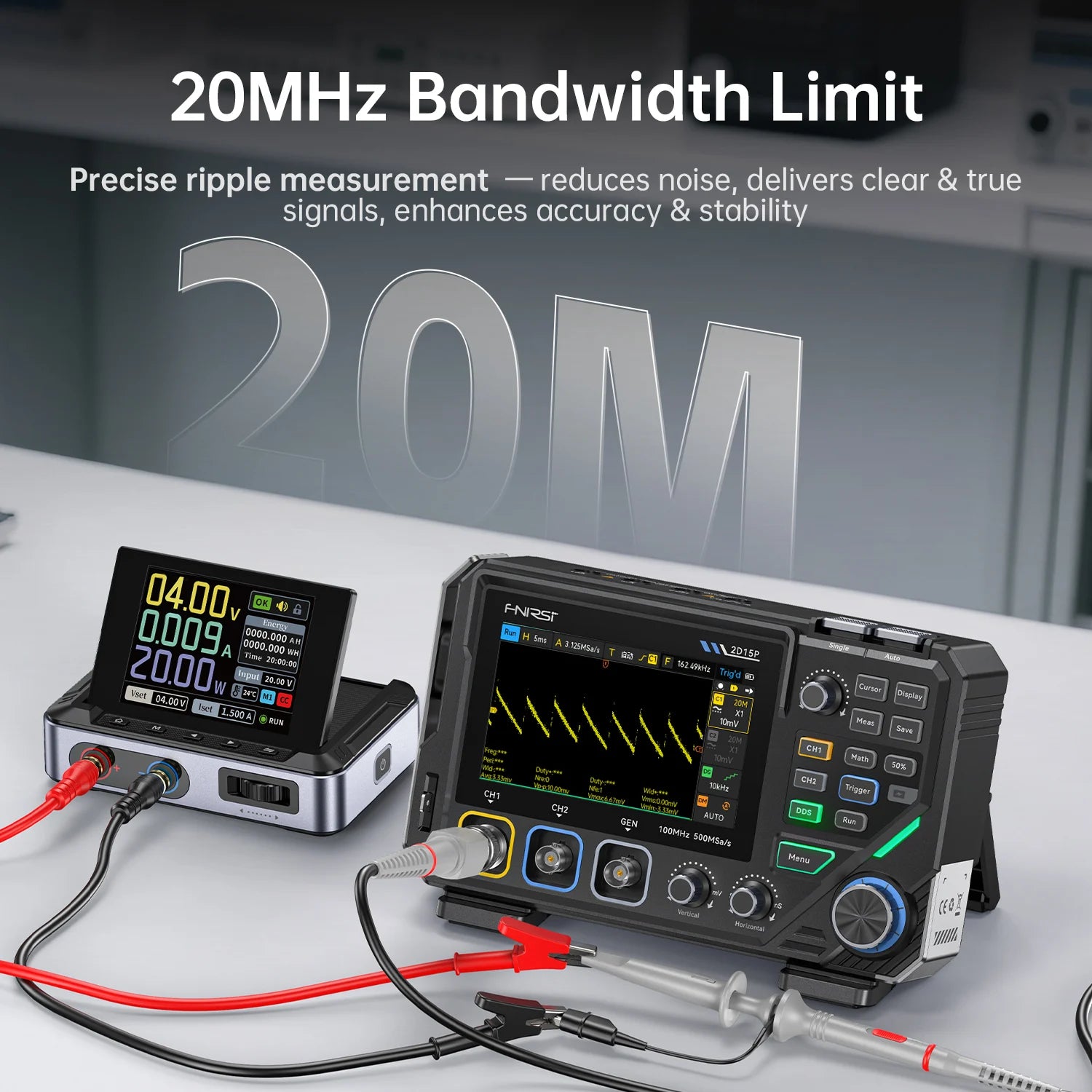

- 20 MHz Bandwidth Limit — Reduces noise for accurate ripple and precision testing.

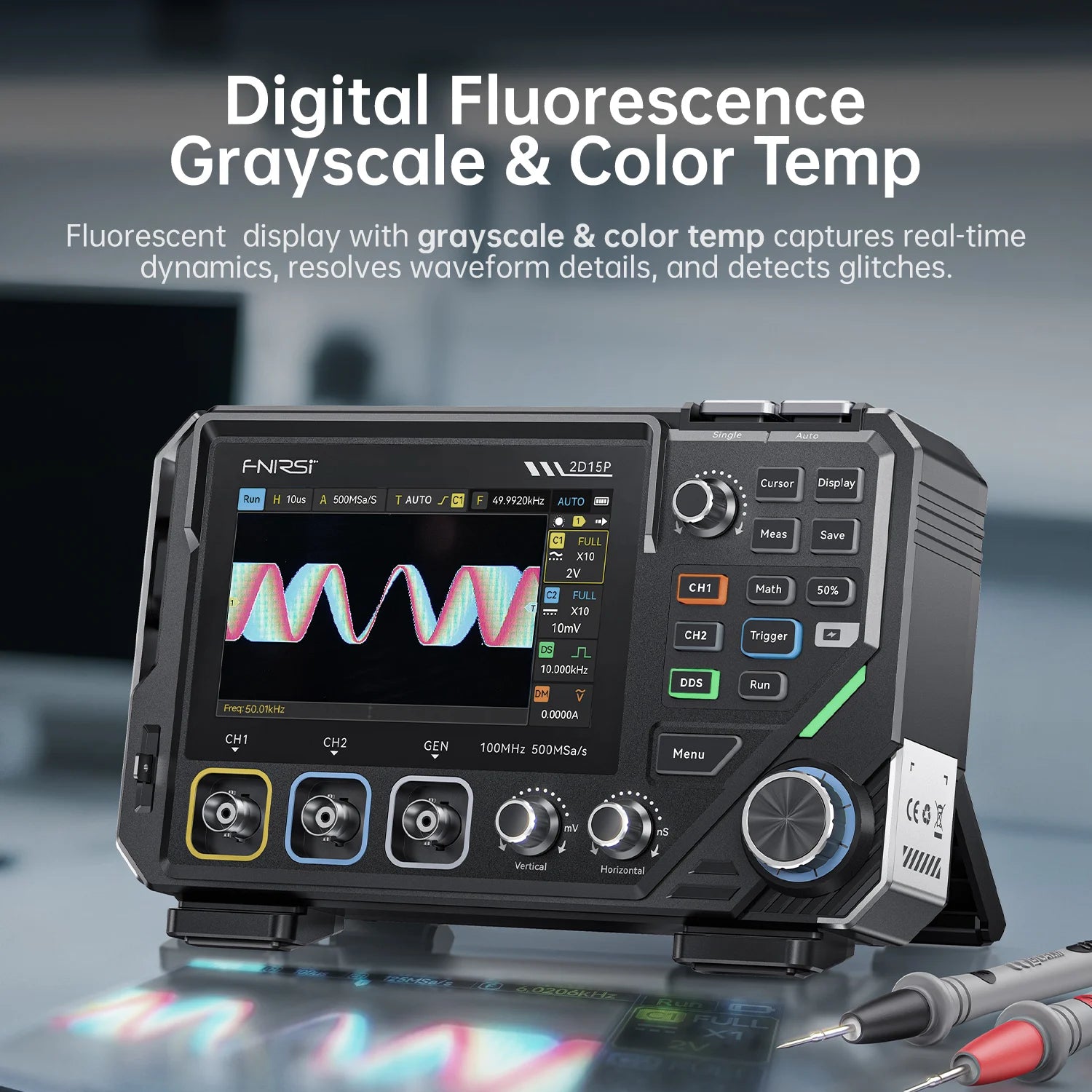

- Grayscale & Color Temperature Visualization — Reveal waveform persistence and signal dynamics.
- Math Operations (Add, Subtract, Multiply, Divide, etc.) — Real-time signal computation.
- XY Mode & Infinite Persistence — Visualize phase relationships and waveform overlap.

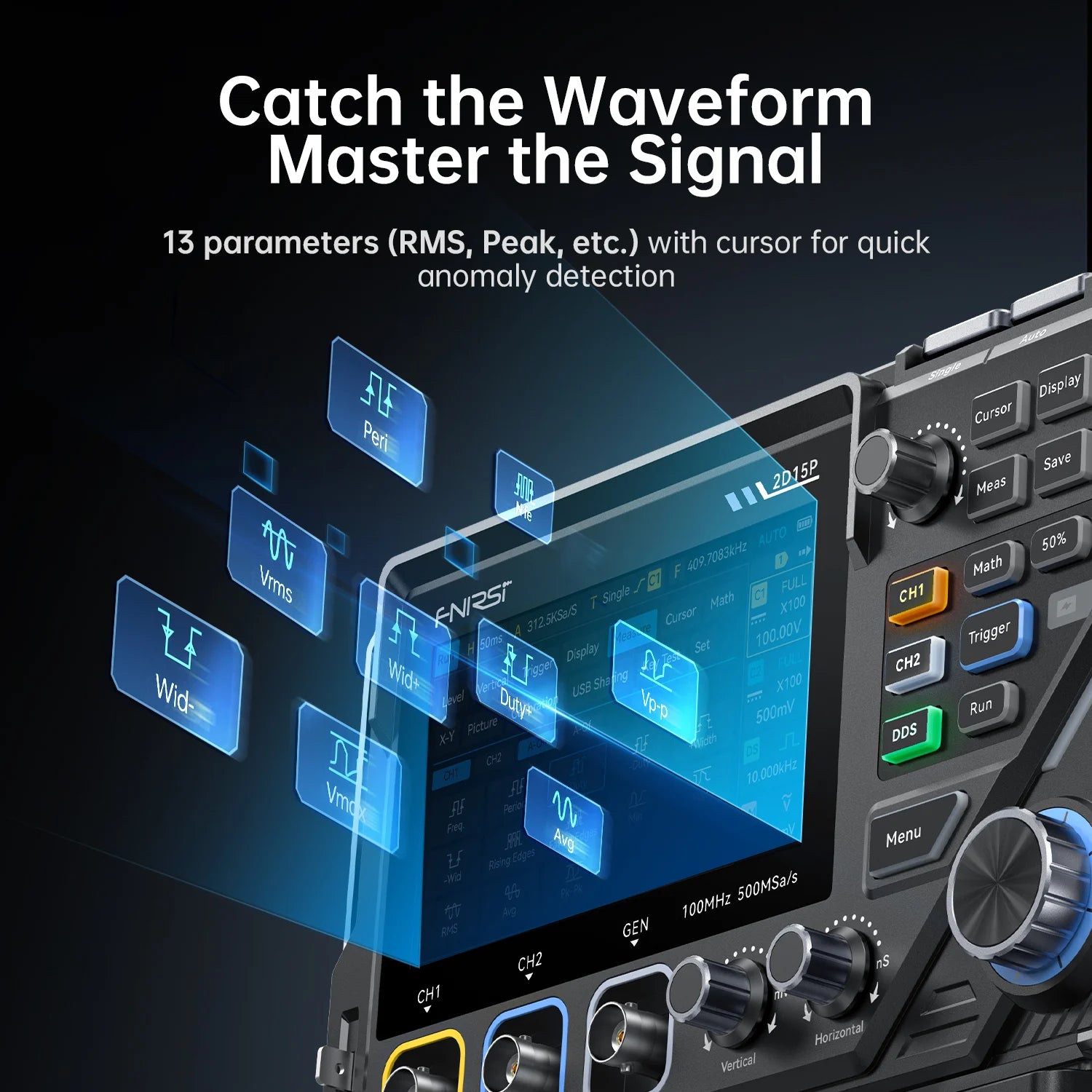

- Cursor Function & 13 Auto Measurements — Quick and clear parameter analysis.
- Auto / Normal / Single Trigger Modes — Flexible signal capture for every testing need.
- 10 MHz DDS Signal Generator — Output up to 11 common waveforms with adjustable amplitude and duty cycle.
- True RMS Multimeter (19,999 Counts) — Supports V/A (AC/DC), Ω, capacitance, diode, and continuity tests.

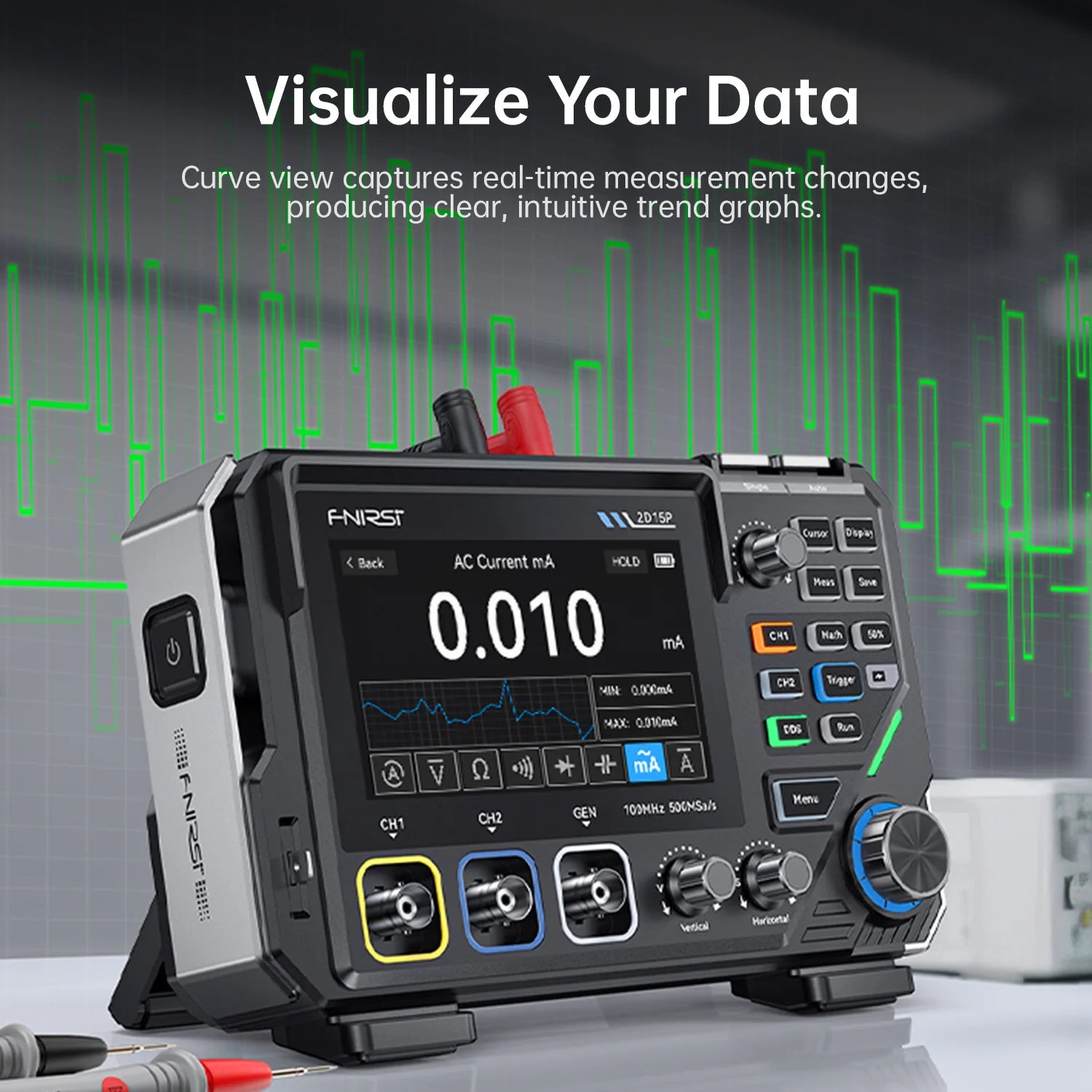

- Curve View Function — Displays real-time trend graphs for visual signal tracking.
- FPGA + MCU + ADC Architecture — Ensures high-speed signal processing and stable performance.

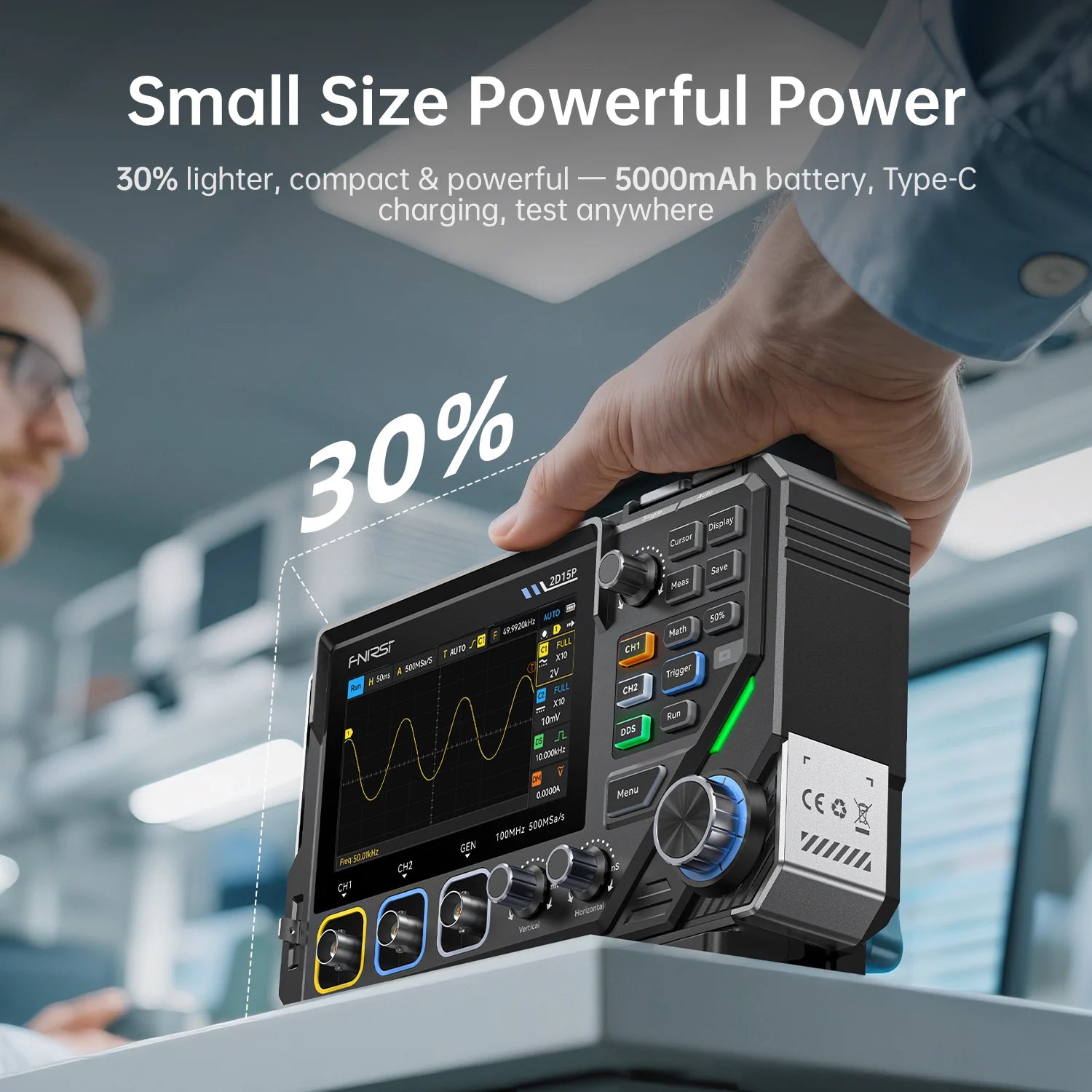

- Compact & Lightweight Design — 30 % lighter body with a powerful 5000 mAh battery.
- Wave Save & Export Function — Store and transfer waveform data for post-analysis.
- Type-C Charging Interface — Convenient, fast, and universal power connection.
Product Parameters
Oscilloscope Specifications:
Channel
Dual Channel
Sample Rate
500MSa/s
Analog Bandwidth
100MHz
Memory Depth
10K, 100K, 1M
Input Impedance
1MΩ
Timebase Range
5ns - 50s
Vertical Sensitivity
10mV - 10V/div
Max Input Voltage
800V (x10 Probe)
Trigger Mode
Auto, Normal, Single
Trigger Type
Rising, Falling, Both Edges
Display Mode
Dot, Vector, Color Temp
Coupling
AC/DC
Persistence
min / 2s / 5s / 10s / 20s / 50s / ∞
Math Operations
✔
Waveform Capture
✔
Waveform Export
✔
Cursor Measurement
✔
Multimeter Specifications:
DC Voltage
1.9999V / 19.999V / 199.99V / 1000V
AC Voltage
1.9999V / 19.999V / 199.99V / 750.0V
DC Current
19.999mA / 199.99mA / 1.9999A / 9.999A
AC Current
19.999mA / 199.99mA / 1.9999A / 9.999A
Resistance
19.999MΩ / 1.9999MΩ / 199.99KΩ / 19.999KΩ / 1.9999KΩ / 199.99Ω
Capacitance
999.9uF / 99.99uF / 9.999uF / 999.9nF / 99.99nF / 9.999nF / 9.999mF / 99.99mF
Diode
✔
Continuity
✔
Signal Generator Specifications:
Channel
1CH
Frequency
0 - 10 MHz
Amplitude
0.1 - 3.0 Vpp
Duty Cycle
0 - 100%
Package List:
◉ 2D15P Scope DMM *1
◉ P6100 Probe *2
◉ Multimeter Probe *1
◉ Alligator Clip Probe *1
◉ USB Data Cable *1
◉ User Guide *1
◉ P6100 Probe *2
◉ Multimeter Probe *1
◉ Alligator Clip Probe *1
◉ USB Data Cable *1
◉ User Guide *1
Package List:
◉ 2D15P Scope DMM *1
◉ P6100 Probe *2
◉ Multimeter Probe *1
◉ Alligator Clip Probe *1
◉ USB Data Cable *1
◉ User Guide *1
◉ P6100 Probe *2
◉ Multimeter Probe *1
◉ Alligator Clip Probe *1
◉ USB Data Cable *1
◉ User Guide *1
Using Environment and Precautions
The device should be stored in a soft case, and the operating environment should be at a temperature of -5~40℃, and the relative humidity should not exceed 80%.
The device should be stored in a clean and dry place to avoid moisture, mold, heavy pressure, mechanical damage,humidity and direct sunlight.
Avoid using in the rain or fog, avoid dropping or shocking.
When the screen on the LCD does not light up, it indicates that the voltage is too low, and it needs to be charged in time.
Copyrights
The product specifications are subject to change without notice, allfinal interpretation rights were reserved by FNIRSI Technology Co., Ltd, All trademarks, product images, technical parameters are properties of FNIRSI Technology Co.. Ltd. All rights reserved.
Warranty
30-Day return and refund guarantee (Refer to our Refund Policy), 2-year warranty (only available for orders purchased directly from fnirsi.com), lifetime technique support by FNIRSI.
Please feel free to reach us with any concerns:
Email: service@fnirsi.com / info@fnirsi.com
We strive to reply to you within 24 hours.
FNIRSI has started researching and development manufacturer of quality optical products including Golf rangefinder, laser,measure device and binoculars since 2016.
Focus on the development,researching, and manufacturing for over 8 years.
We are committed to delivering premium products and exceptional customer service, striving to be your most reliable and intelligent assistant.
At Fnirsi, we are committed to providing our customers with the best value for their purchases. To ensure you always get the best price, we offer a 30-day price guarantee on all products purchased directly from fnirsi.com. This policy aims to give you confidence and peace of mind when shopping with us.
What is the 30-Day Price Guarantee?
Our 30-day price guarantee means that if you purchase a product from fnirsi.com and the price of that product drops within 30 days of your purchase date, you are eligible for a refund of the price difference of the products. (Prices are based on USD. No refunds will be given for price changes in other currencies due to exchange rate fluctuations.)
How Does the Price Guarantee Apply?
- Eligibility: The price guarantee applies only to purchases made on fnirsi.com. Products purchased from other retailers or third-party sellers are not eligible.
- Timeframe: The price drop must occur within 30 days of your original purchase date.
- Product Match: The price guarantee applies to the same product (identical model, specifications, and condition).
How to Apply for a Price Difference Refund
If you notice that the price of a product you purchased from fnirsi.com has dropped within 30 days, follow these steps to apply for a refund of the price difference:
- Documentation: Prepare your order number and proof of the price drop (such as a screenshot and link to the product page showing the reduced price).
- Contact Us: Reach out to our customer support team at info@fnirsi.com .Include your order number, proof of the price drop, and a brief explanation of your request.
- Verification: Our team will verify the price drop and your purchase details.
- Refund Process: Once verified, we will process the refund for the price difference to your original method of payment. It typically takes 1-3 business days for you to receive the refund.
At Fnirsi, we strive to provide our customers with high-quality products and exceptional customer service. Our 30-day price guarantee is just one of the ways we ensure you get the best value for your investment. Shop confidently with Fnirsi, knowing that you are always getting the best deal available.
Thank you for choosing Fnirsi. If you have any questions or need further assistance, please do not hesitate to contact our customer support team at info@fnirsi.com.
S

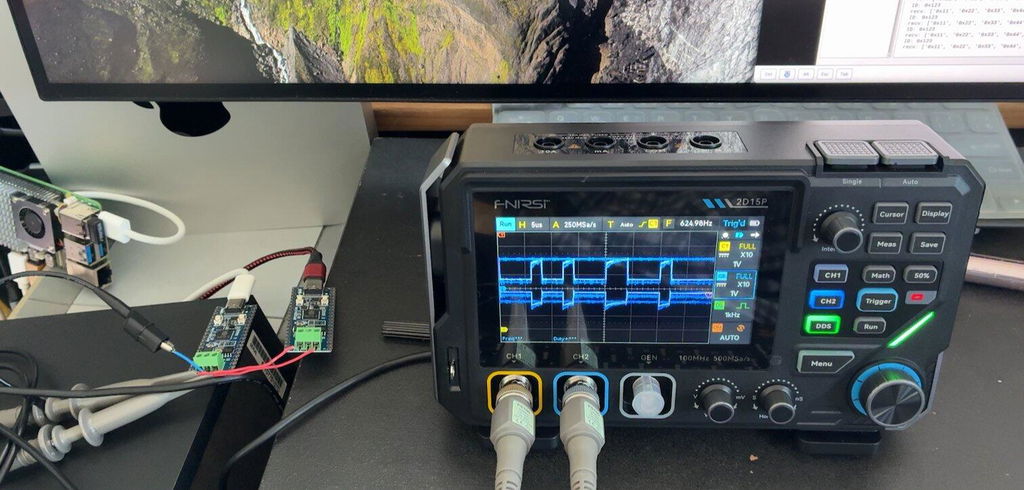

Great scope for remote work, always carry it in my bag and easy to set up and use!
C
Just getting started but this seems like a perfect balance of capabilities, price and ui. Still looking for some good training videos on following IC traces.
J
El paquete fue recibido en el tiermpo estipulado. se cumplio con todo lo ofrecido por FNIRSI. El Osciloscopio 3 en 1 llego en perfecto estado.
c
Uma sugestão para atualização , a escala de multímetro em diodo poderia ter bipe quando em curto e até mesmo ao medir dar bipe indicando que foi detectadoe se em curto bipe continuo isso seria perfeito , evita fica olhando fixado para tela , do mais o produto é ótimo , mas se adicionar esta função iria ficar super ótimo
D
Great little scope to have on the fly and works with automobiles as well.
F
Ho provato tutte le funzioni di questo dispositivo e funziona perfettamente. L’oscilloscopio mostra chiaramente tutti i segnali
H
Good value for $150, combining an oscilloscope, a function generator and a digital multimeter all in one small package. I'm a hobbyist building amplifiers and speakers, so this device allows me to measure ripple noise in my linear power supplies and power outputs in my amplifiers. One star off due to the included DMM test probes that are so mediocre. See my pics on the set up to measure amplifier output.
J
Hello,
I’ve been using the FNIRSI 2D15P for a few days now and wanted to share some feedback based on hands-on measurements.
Overall, I’m very satisfied with the device. For a portable oscilloscope/multimeter in this price range, it offers a surprisingly capable and usable tool. The interface is intuitive, startup is fast, and the screen is clear enough for real work, not just casual checks.

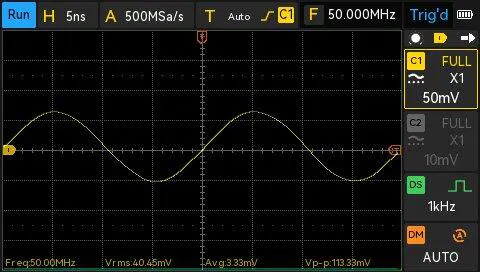

I performed a simple frequency response characterization using a TinySA Ultra as a signal source. The results are consistent with the advertised specifications: the waveform remains clean and stable up to several tens of MHz, and the amplitude response stays within a few dB up to around 100 MHz. For a handheld device, this is quite impressive and perfectly usable in practice.
A few points I particularly appreciated:
* Stable triggering in most practical situations
* Good sampling performance (500 MSa/s in single channel mode)
* USB sharing function (once understood) is very useful to extract screenshots
* Solid build and overall usability
There are also a few areas where improvements would be welcome:
* USB behavior is not very intuitive at first (USB sharing vs USB storage could be clarified in the documentation)
* Some measurements (like rise time on fast edges) require careful interpretation, which might benefit from clearer documentation or examples
* It would be great to have more explicit technical documentation on bandwidth and measurement methodology
In summary, this is a very good instrument for its class. With a bit more documentation clarity and minor usability improvements, it could be even better.
R
ma nejake chybicky ale funguje na moje servisne potreby celkom dobre
T
It is a very easy-to-use and versatile device.
The oscilloscope works great, the multimeter function is also excellent, and the signal generator is brilliant.
Everything went smoothly with the order, payment, and delivery as well, and the device fully matches the description.
I can recommend it.
M
Muy rápido en llegar el pedido, por ahora estoy contentísimo con él y su funcionalidad.
P
This is my first FNIRSI product I have purchased. The 2D15P arrived in a well-packaged box with everything I needed for a portable multimeter/oscilloscope unit. The product is very well-built, and the user interface is intuitive. The best quality for the price paid for the equipment. Is it as good as my $30k Keysight/Agilent oscilloscope? No, but it gives me a quick, reliable way to measure my circuits in the field or on a bench, without expensive equipment. I love that it's battery-powered, so the AC noise coupling from the power line is less of a concern, and it's very portable. I don't yet know the long-term reliability, as it's only been a few months, but I will definitely be buying more FNIRSI equipment in the future.

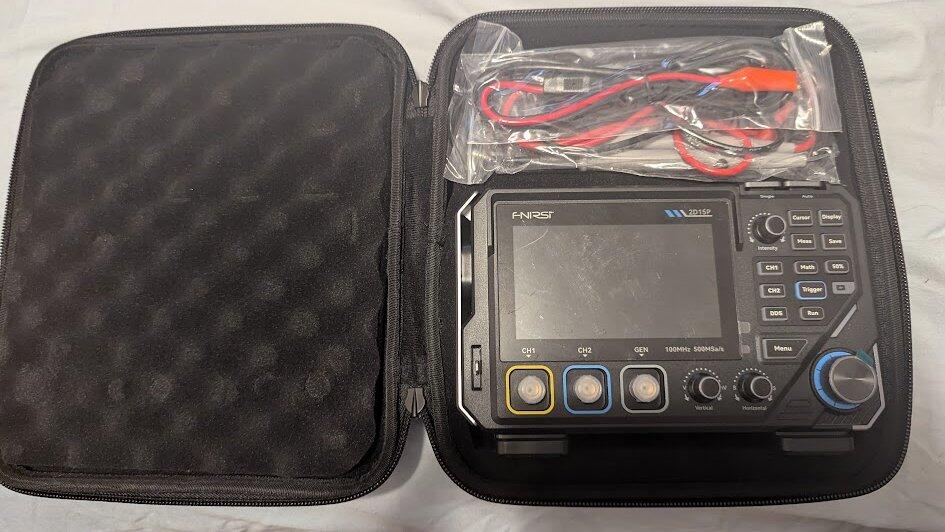

I found a nice protective case meant for an external hard drive that fits the unit and accessories perfectly. Now I can take it anywhere.
S
For the price, it doesn’t get much better than this. The unit even arrived a day early. Loads of functions on this - couldn’t be happier for my first scope.
D
This device is easy to use, valuable to the bench for diagnostic and at a price that was shockingly low!
G
El envío me sorprendió por lo rápido y lo bien empacado que estaba.
Sobre el 2D15P pues es un equipo que cumple con lo básico pero el ancho de banda real del osciloscopio es de 40 MHz en el mejor de los casos, los datos de medición deberían ser un poco más grandes, el auto set se pierde o le cuesta ajustar bien.
La capacidad de la bateria es muy limitada y el no agregar un cargador por lo menos a mí parecer es un fallo.
La sondas del osciloscopio se ven a leguas que son de pésima calidad.
Pero repito es un equipo que cumple si no tienes altas necesidades o exigencias.
M
コンパクトでバッテリー駆動できるので、まず波形を確認しようというモチベになる。また、基本のオシロ機能・テスターの機能（コンデンサの容量も確認できる）・Eye patternを見る機能など十分な性能。エクスポート（データの出力機能）が画面のキャプチャをbmp出力だけなのがちょっと残念。データロガーが出来たら、星6つあげたい
B
1) Of all the scopes I've owned throughout my years, they all had an option to toggle the scopes inputs to ground. This scope doesn't offer that option.

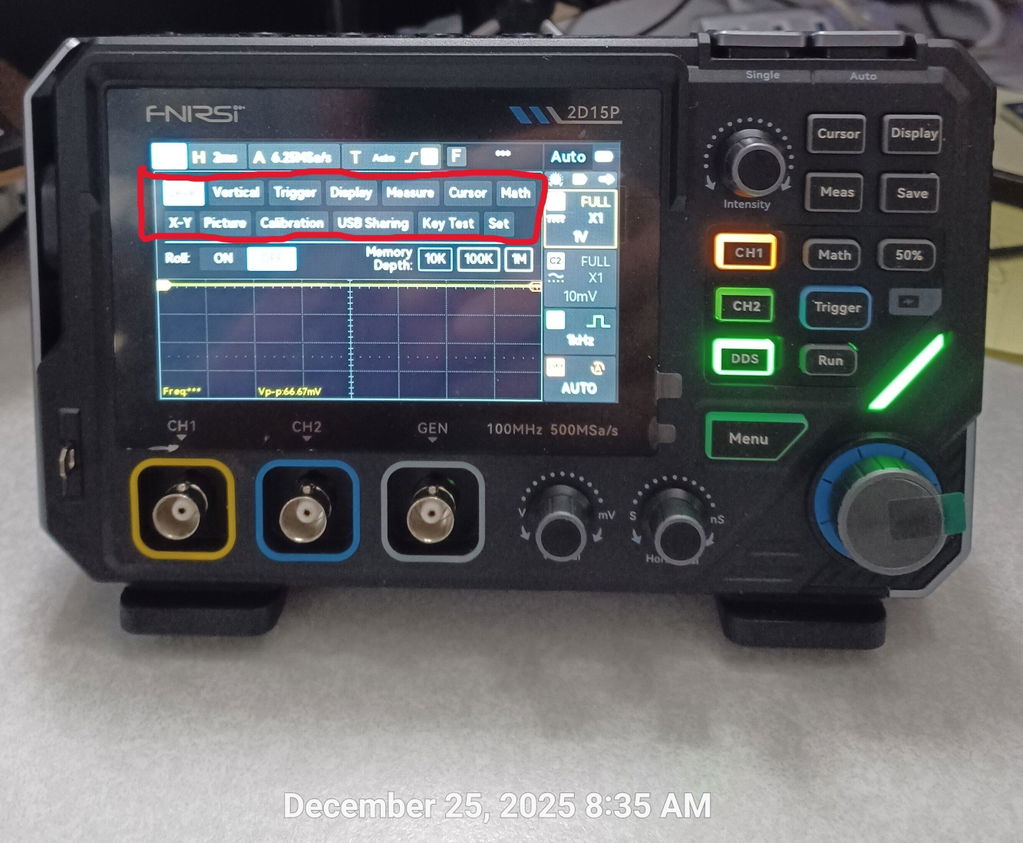

2) I've noticed when I press the keys/buttons Cursor/Display/Measure/Math/Trigger/Menu, the same top section is displayed. I realize when pressing any one of those listed above provide the options on it. That's five hard buttons/keys, where they could have just one key, then the operator chooses which function they want. Kind of like what the 'MENU' button is labeled for.

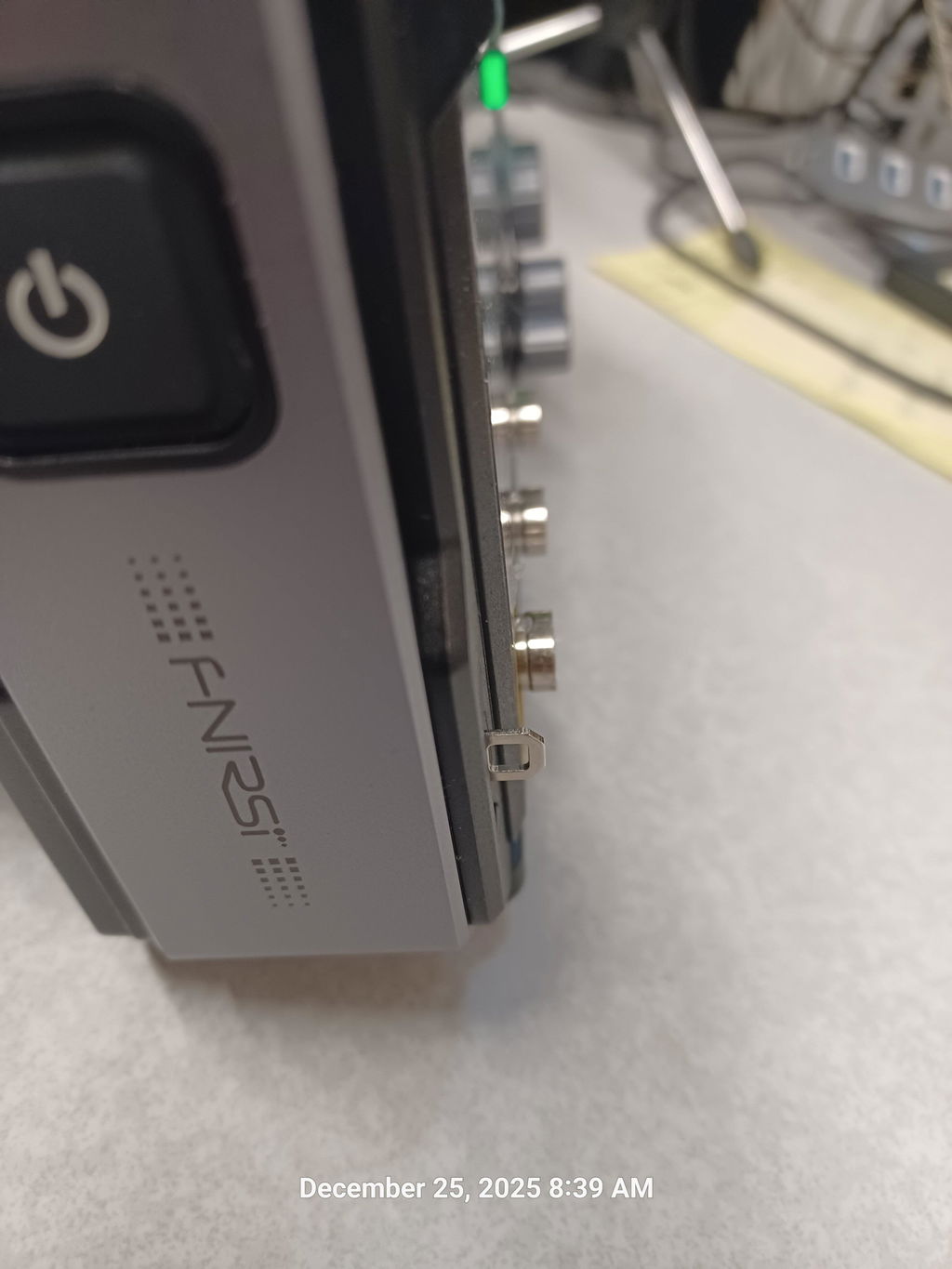

3) FNIRSI could have had those BNC connectors a little further out, making it easier to connect/disconnect the scope probes BNCs
