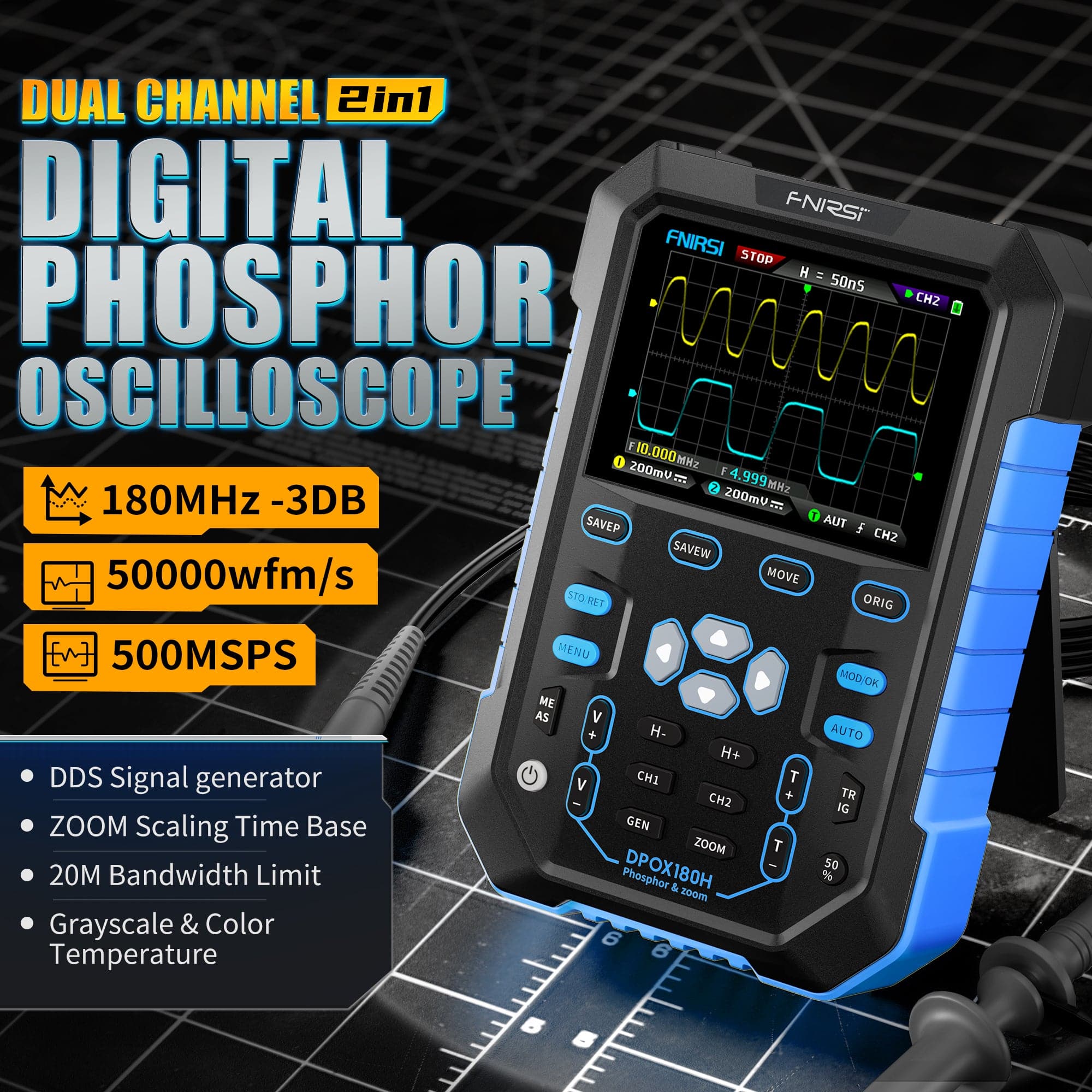

FNIRSI® DPOX180H 2 Channel 180MHZ 2-IN-1 Digial Phosphor Oscilloscope

$127.99
$228.99
$127.99
Save $101.00
BONUS SAVING!TIER DISCOUNTS
Buy More Save More! Codes Auto Applied!
Color: Blue

Highlights

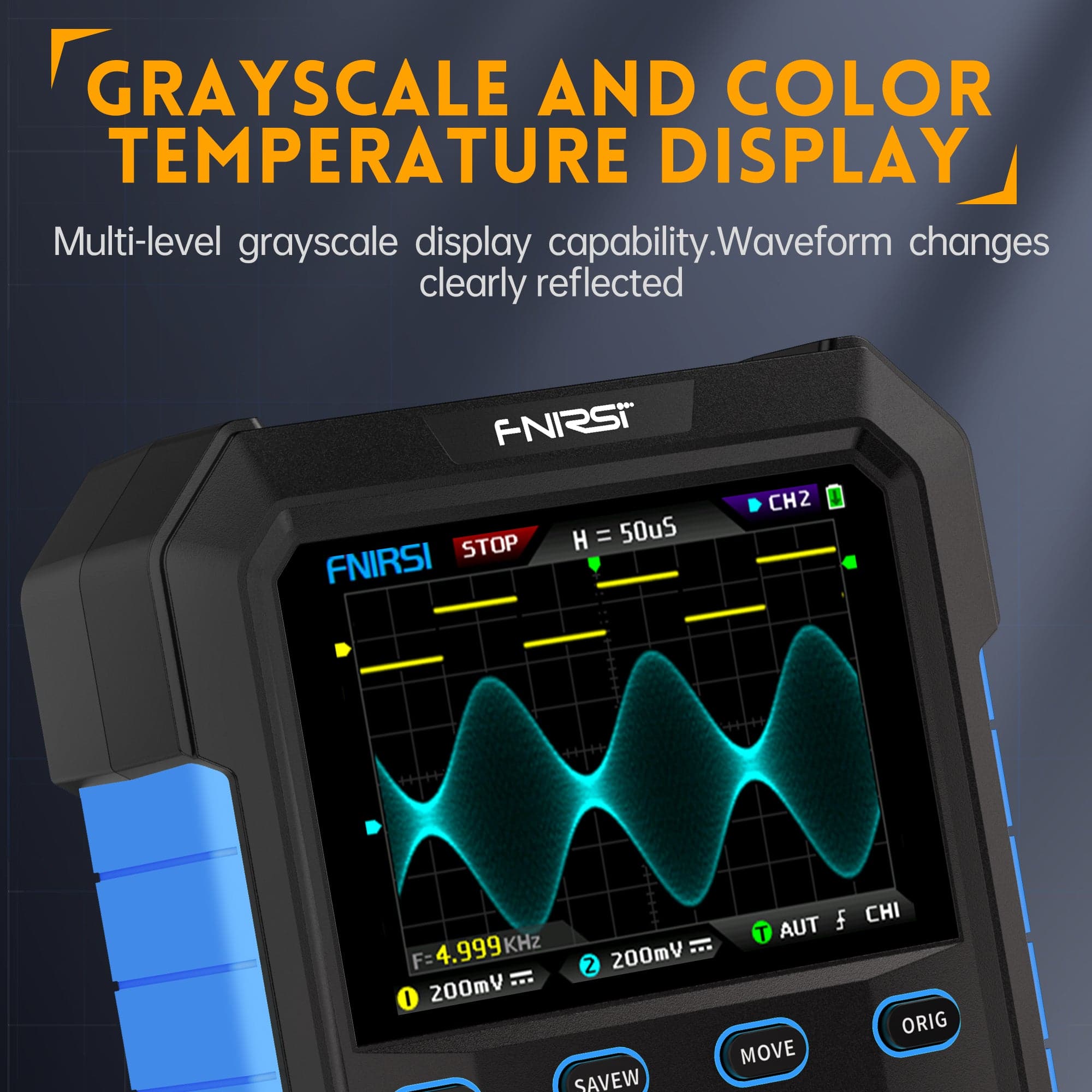

✦ Digital Phosphor Oscilloscope: The DPOX180H minimizes noise and waveform distortion with advanced digital phosphor technology. The color temperature display enhances signal clarity, showing signal distribution and rise/fall times. X-Y mode allows easy comparison of amplitude, frequency, and phase between two signals.

✦ Professionally Designed: Features a 2-channel handheld oscilloscope and DDS signal generator with 180MHz bandwidth and 500MSa/s sampling rate. It includes an innovative digital trigger system, cursor measurement, 5mV sensitivity, 50,000 wfm/s refresh rate, a 2.8-inch IPS display, built-in 4.2V/3000mAh battery, auto shutdown, and high-voltage protection.

✦ Unique and Innovative Features: Offers an adjustable automatic bandwidth limit that adapts to the time base range, filtering out noise for clearer signal analysis. Its adaptive high-frequency rejection suppresses high-frequency components, ensuring stable triggering even with large noise signals.

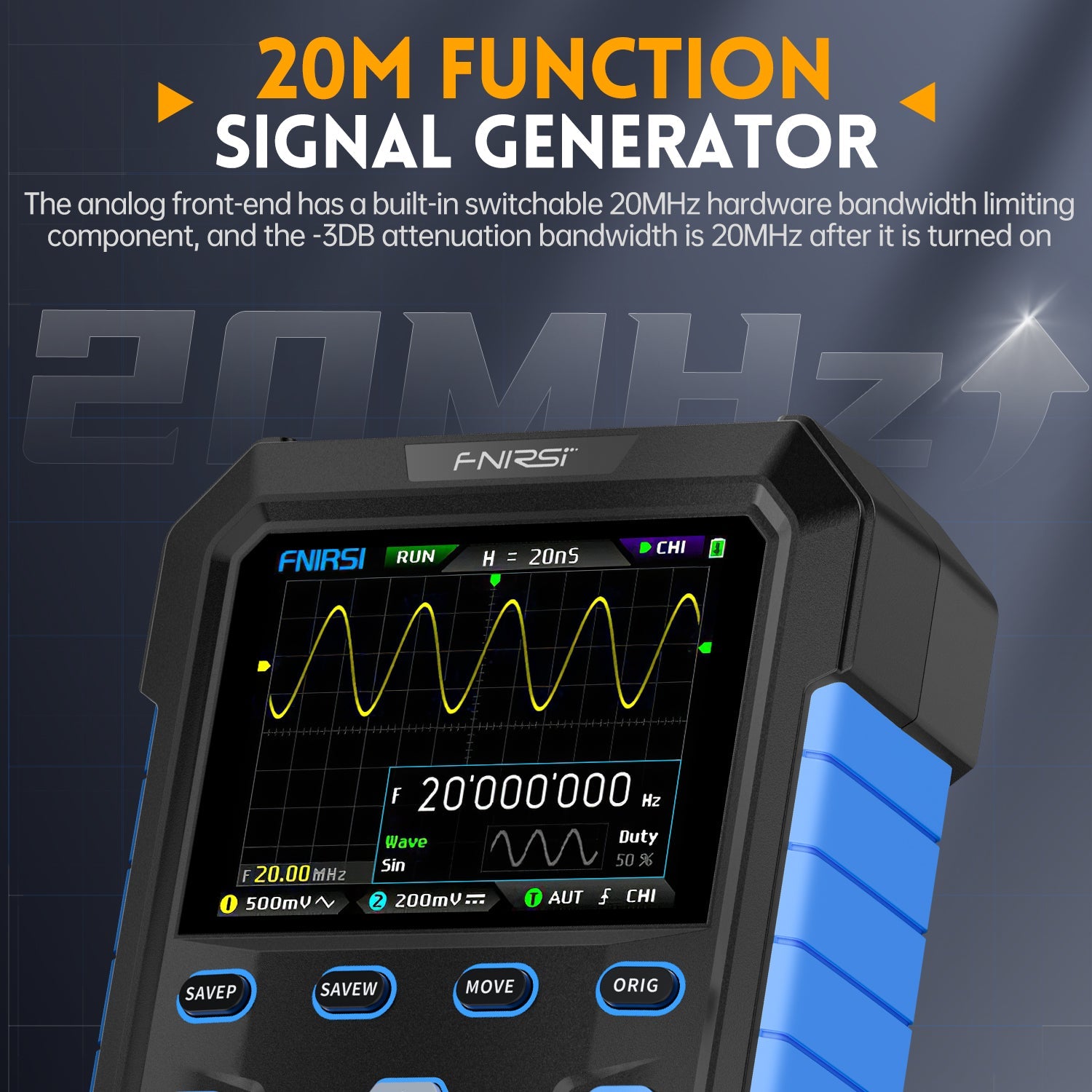

✦ Function Signal Generator: It has a 20M DDS signal generator with 14 waveforms, 1VPP amplitude, 20MHz sine wave frequency, and 10MHz for other waveforms. Its chopping technology offers more accurate, realistic signal output than traditional generators.

✦ Easily Measuring: Equipped with high-efficiency one-button AUTO, adaptive 25%, 50%, 75% trigger, can display the measured waveform without cumbersome adjustment. FFT spectrum display.

✦ Storage Function: One click to save screenshot or waveform, with its own data storage, you can view the saved screenshot file and waveform data. Data can be exported via USB connection to a computer.

FNIRSI® DPOX180H 2 Channel 180MHZ 2-IN-1 Digial Phosphor Oscilloscope

FNIRSI® DPOX180H 2 Channel 180MHZ 2-IN-1 Digial Phosphor Oscilloscope

$228.99 $127.99

FNIRSI® DPOX180H 2 Channel 180MHZ 2-IN-1 Digial Phosphor Oscilloscope

$228.99 $127.99
Color: Blue

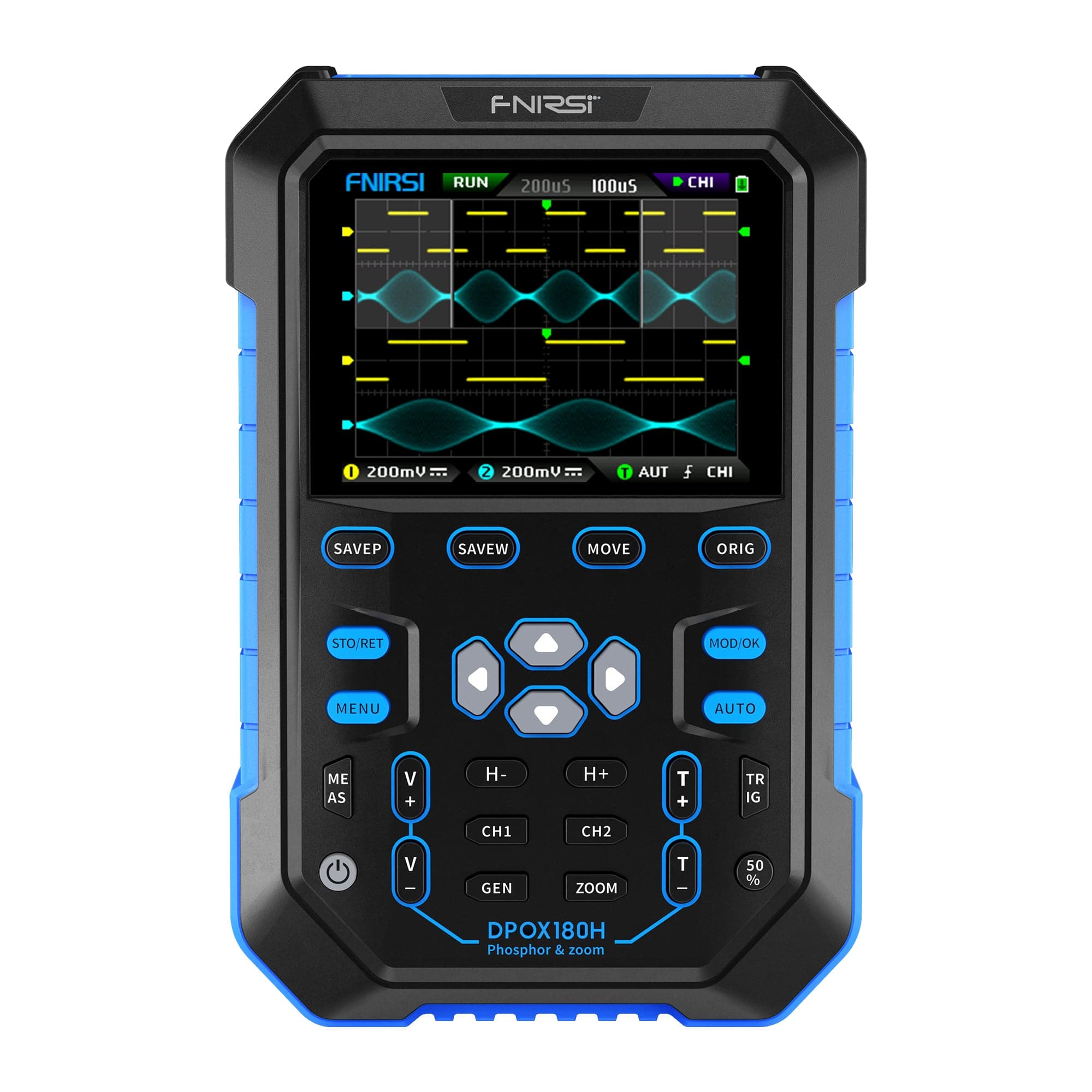

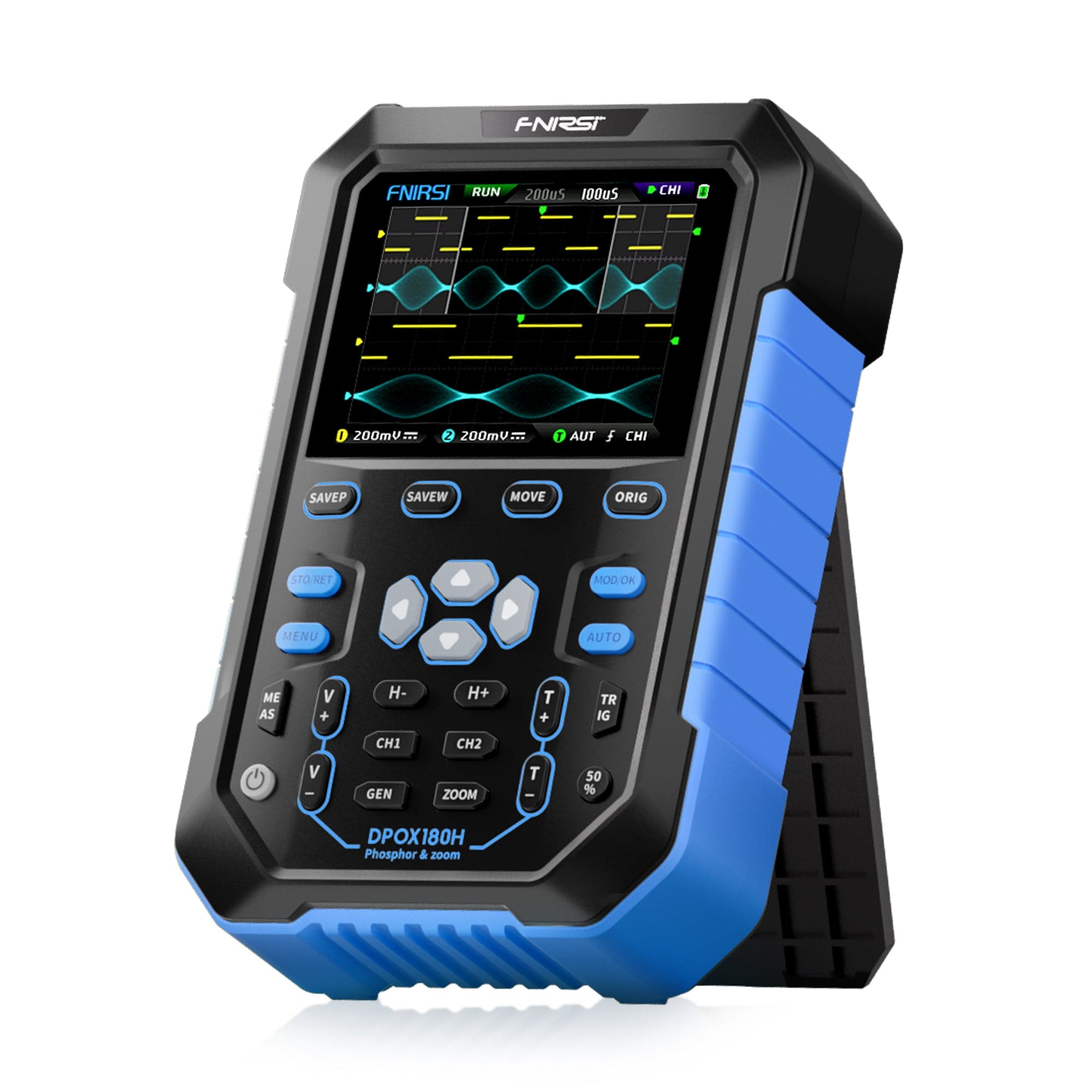

The DPOX180H is a cost-effective, handheld dual-channel digital phosphor oscilloscope from FNIRSI, combining an oscilloscope and signal generator. It features a 500MSPS real-time sampling rate, 180MHz bandwidth, and a 2.8-inch high-contrast IPS LCD. With a refresh rate of up to 50,000 waveforms per second, it captures even rare signal anomalies. The ZOOM time base aids digital protocol analysis, and with 5mV sensitivity, it can measure small signals accurately. Key features include noise filtering, a high-precision digital trigger with three modes, and a DDS signal generator supporting up to 20MHz. Additional functions include one-button auto adjustment, waveform storage for up to 250 sets, high-voltage protection up to 400V, USB export, and fast charging (5V/2A).


Features

  • 2 Channels Digital Phosphor Oscilloscope
  • 2 in 1 Handheld Oscilloscope+ DDS Signal Generator
  • 180Mhz Bandwidth 500MSa/s Sampling Rate
  • Record depth 32kb
  • Maximum measurement voltage ±400V
  • 200mv/div-10v/div vertical sensitivity
  • Support waveform image storage and export.
  • Trigger function: auto/normal/single
  • Effortless Usage: one-key-auto
  • Seamless Operations: Enhanced Data Saving

Specifications

Brand
FNIRSI
Model
DPOX180H
Number of Channels
2
Analog Bandwidth
180MHz
Max Waveform Capture Rate
50000wfm/s
Real Time Sampling Rate
500MSa/s
Maximum Sampling Rate
500MSPS
Input Coupling
DC/AC
Rise Time
2.5nS
Storage Depth
120Kpts
Water Resistance Level
IPX6
Input Impedance
1MΩ-18PF
Vertical Sensitivity
5mV ~ 10V(1X)
Time Base Range
5nS ~ 50S
DC Accuracy
±2%
Time Accuracy
±0.01%
Measurement Range
40mV ~ 80V(1X)
Digital Phosphor Technology
Support
Color Temperature Display
Support
Zoom Scaling Time Base
Support
20M Hardware Bandwidth Limitation
Support
Adjustable Automatic Bandwidth Limitation
Support
X-Y Mode
Support
FFT
Support
Cursor Measurement
Frequency / Period / Amplitude
Trigger Detection
Digital Trigger
Trigger Mode
Auto / Single / Normal
Trigger Edge
Rising / Falling
Roll Mode
Support
Screenshot Storage
90
Waveform Storage
250 Groups
Capture Signal
500
Parameter Measurement
12 Kinds
Signal Generator
14 Standard Function Signals
Auto-adjustment
Support
Waveform Manager
Support
Waveform Output
Support
High-voltage Burnout Protection
Support
Screen Size
2.8 Inches
Screen Resolution
320x240 Pixels
Display Technology
IPS Full View
Expansion Interface
USB Transmission Interface
Auto Power-off
5 minutes ~ 2 hours
Firmware Upgrade
Support
Charging Requirements
5V 2A
Battery Capacity
3000mAh
Standby Time
3.5 Hours at Full Charge
Dimensions
135x90x40mm


Using Environment and Precautions

The device should be stored in a soft case, and the operating environment should be at a temperature of -5~40℃, and the relative humidity should not exceed 80%.

The device should be stored in a clean and dry place to avoid moisture, mold, heavy pressure, mechanical damage,humidity and direct sunlight.

Avoid using in the rain or fog, avoid dropping or shocking.

When the screen on the LCD does not light up, it indicates that the voltage is too low, and it needs to be charged in time.

Copyrights

The product specifications are subject to change without notice, allfinal interpretation rights were reserved by FNIRSI Technology Co., Ltd, All trademarks, product images,technical parameters are properties of FNIRSI Technology Co.. Ltd. All rights reserved.

Warranty

30-Day return and refund guarantee (Refer to our Refund Policy), 2-year warranty (only available for orders purchased directly from fnirsi.com), lifetime technique support by FNIRSI.
Please feel free to reach us with any concerns:
Email: service@fnirsi.com / info@fnirsi.com
We strive to reply to you within 24 hours.

FNIRSI has started researching and development manufacturer of quality optical products including Golf rangefinder, laser,measure device and binoculars since 2016.
Focus on the development,researching, and manufacturing for over 8 years.
We are committed to delivering premium products and exceptional customer service, striving to be your most reliable and intelligent assistant.

At Fnirsi, we are committed to providing our customers with the best value for their purchases. To ensure you always get the best price, we offer a 30-day price guarantee on all products purchased directly from fnirsi.com. This policy aims to give you confidence and peace of mind when shopping with us.

What is the 30-Day Price Guarantee?

Our 30-day price guarantee means that if you purchase a product from fnirsi.com and the price of that product drops within 30 days of your purchase date, you are eligible for a refund of the difference in price.

How Does the Price Guarantee Apply?

  • Eligibility: The price guarantee applies only to purchases made on fnirsi.com. Products purchased from other retailers or third-party sellers are not eligible.
  • Timeframe: The price drop must occur within 30 days of your original purchase date.
  • Product Match: The price guarantee applies to the same product (identical model, specifications, and condition).

How to Apply for a Price Difference Refund

If you notice that the price of a product you purchased from fnirsi.com has dropped within 30 days, follow these steps to apply for a refund of the price difference:

  • Documentation: Prepare your order number and proof of the price drop (such as a screenshot and link to the product page showing the reduced price).
  • Contact Us: Reach out to our customer support team at info@fnirsi.com .Include your order number, proof of the price drop, and a brief explanation of your request.
  • Verification: Our team will verify the price drop and your purchase details.
  • Refund Process: Once verified, we will process the refund for the price difference to your original method of payment. It typically takes 1-3 business days for you to receive the refund.

At Fnirsi, we strive to provide our customers with high-quality products and exceptional customer service. Our 30-day price guarantee is just one of the ways we ensure you get the best value for your investment. Shop confidently with Fnirsi, knowing that you are always getting the best deal available.
Thank you for choosing Fnirsi. If you have any questions or need further assistance, please do not hesitate to contact our customer support team at info@fnirsi.com.

You May Also Like

Customer Reviews

Based on 124 reviews
88%
(109)
10%
(12)
2%
(3)
0%
(0)
0%
(0)
C
Carl S.
DPOX180H nice for the price but be aware it radiates RF

DPOX180H nice for the price but be aware it radiates RF. Got this for audio work but found out that not so useful when working on FM tuner sections as it radiates a bit of interfernce. But for other than FM works ok.

K
Kian N.

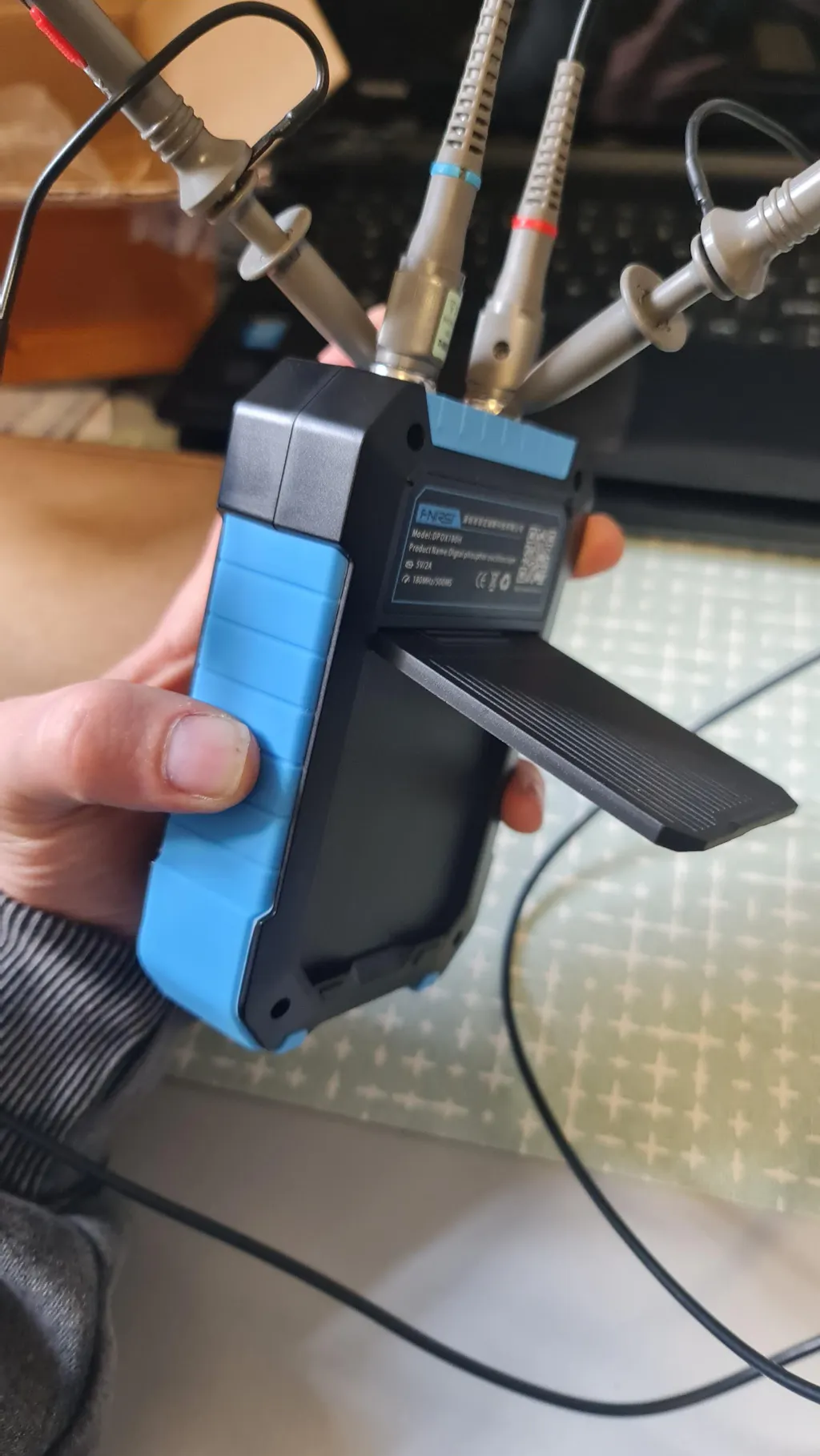

As described. Seems to be robust, has a nice touch . If it came with one box to carry all the pack it would be better. For the price it costs I think this is the minus for this item.

I
Itzel K.

Priishov Shvidko, packed good, for this very normal device

M
Monserrate S.

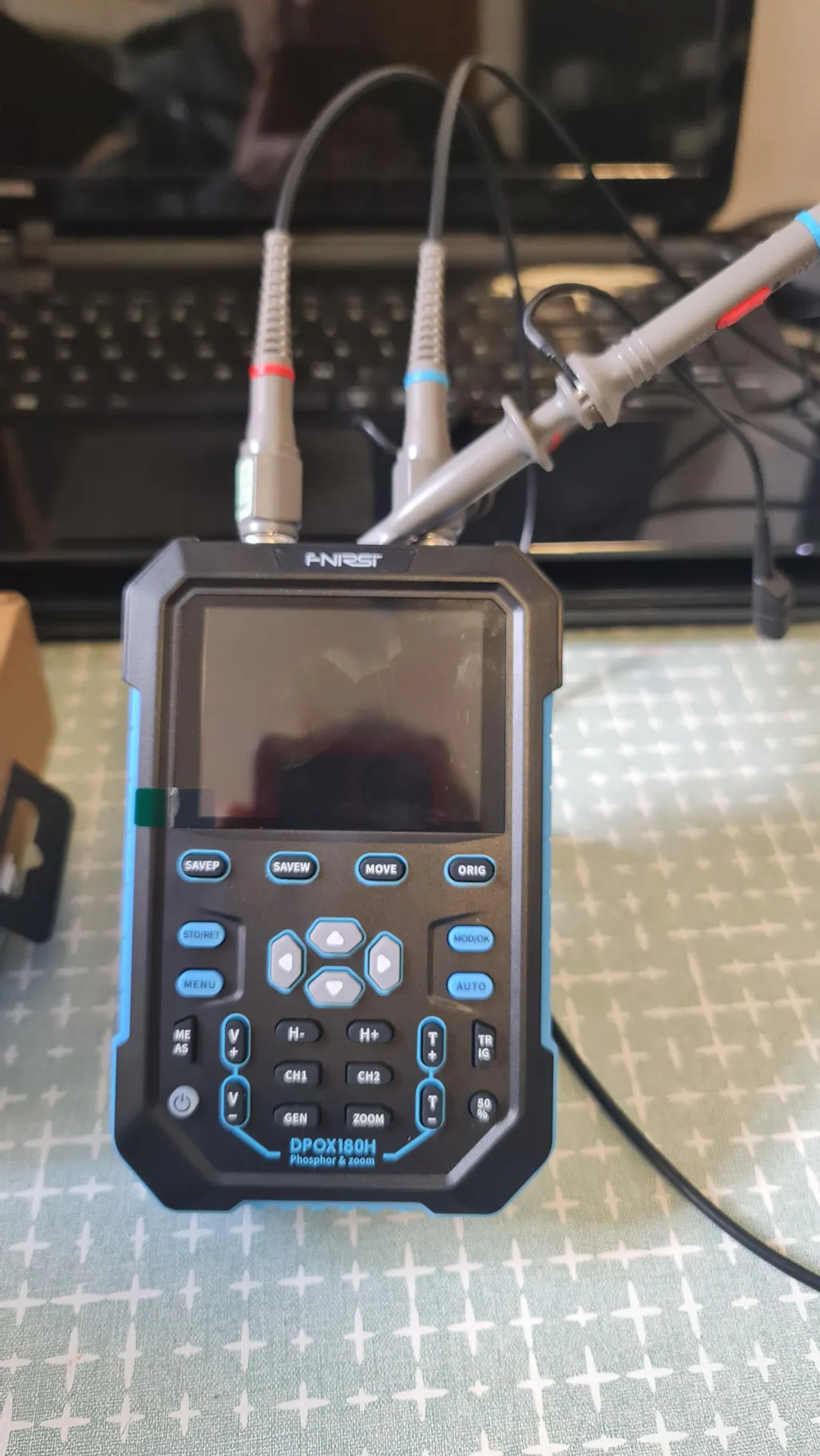

It arrived fast to México, the device is smaller than expected but it looks very nice. I have not tested yet but seems to comply with manufacturer specifications. Happy with the purchase up to now.

A
Aurelio H.

Quick delivery, the seller even added a second adapter (EU), because in the set it was different. I just asked the adapter to be EU type.
I am very satisfied.
