FNIRSI 1C15 Handheld Mini Digital Oscilloscope

FREE SHIPPING OVER $30

Product Details

Basic Specifications:

- Model: FNIRSI-1C15

- Number of Channels: 1

- Screen Size: 2.4 inches

- Screen Resolution: 320 x 240

- Analog Bandwidth: 110M

- Sampling Rate: 500M

- Storage Depth: 12 Kpts

- Time Base Range: 5ns - 10s

- Vertical Sensitivity: 20mv/div - 100v/div

- Voltage Measurement Range: ±40v (x1 file); ±400v (x10 file)

- Charging Method: 5V/800mA

Introduction:

FNIRSI-1C15 is a comprehensive, practical, cost-effective handheld oscilloscope for maintenance and R&D industries launched by our company. 1C15 has a 500M real-time sampling rate and 110MHz analog bandwidth. In addition to having all the functions of a conventional handheld oscilloscope, we have added a one-key quick Auto function on this basis, allowing you to capture waveforms as easily as a desktop computer. The fast waveform storage function can store up to 81 pictures. Persistence and scrolling modes are more convenient for waveform detection and recording. It is equipped with a built-in 3000mAH rechargeable battery, which, when fully charged, can work continuously for more than 10 hours. The body is fitted with a high-quality silicone sleeve, providing anti-slip and anti-fall protection. The joystick replaces the original direction buttons, making operation easier and more efficient.

Display and Technology:

- 2.4-inch screen with a resolution of 320 x 240 for clear and detailed waveform display.

- YT and scroll display modes for flexible waveform viewing.

Functionality and Features:

- 1k Hz self-checking square wave for convenient self-diagnosis.

- One-button automatic operation for quick setup and ease of use.

- Waveform measurement with 14 types for in-depth analysis.

- Reference waveform feature for comparative analysis.

- Frequency accuracy of ±0.01% ensures precise measurements.

Connectivity and Power:

- Micro USB charging cable for convenient charging.

- Channel coupling AC-DC for versatile signal analysis.

Package Size:

- 8.54 x 5.24 x 2.09 inches; 14.39 ounces

- 21.69 x 13.31 x 5.30 cm; 0.408 kg

Package Contents:

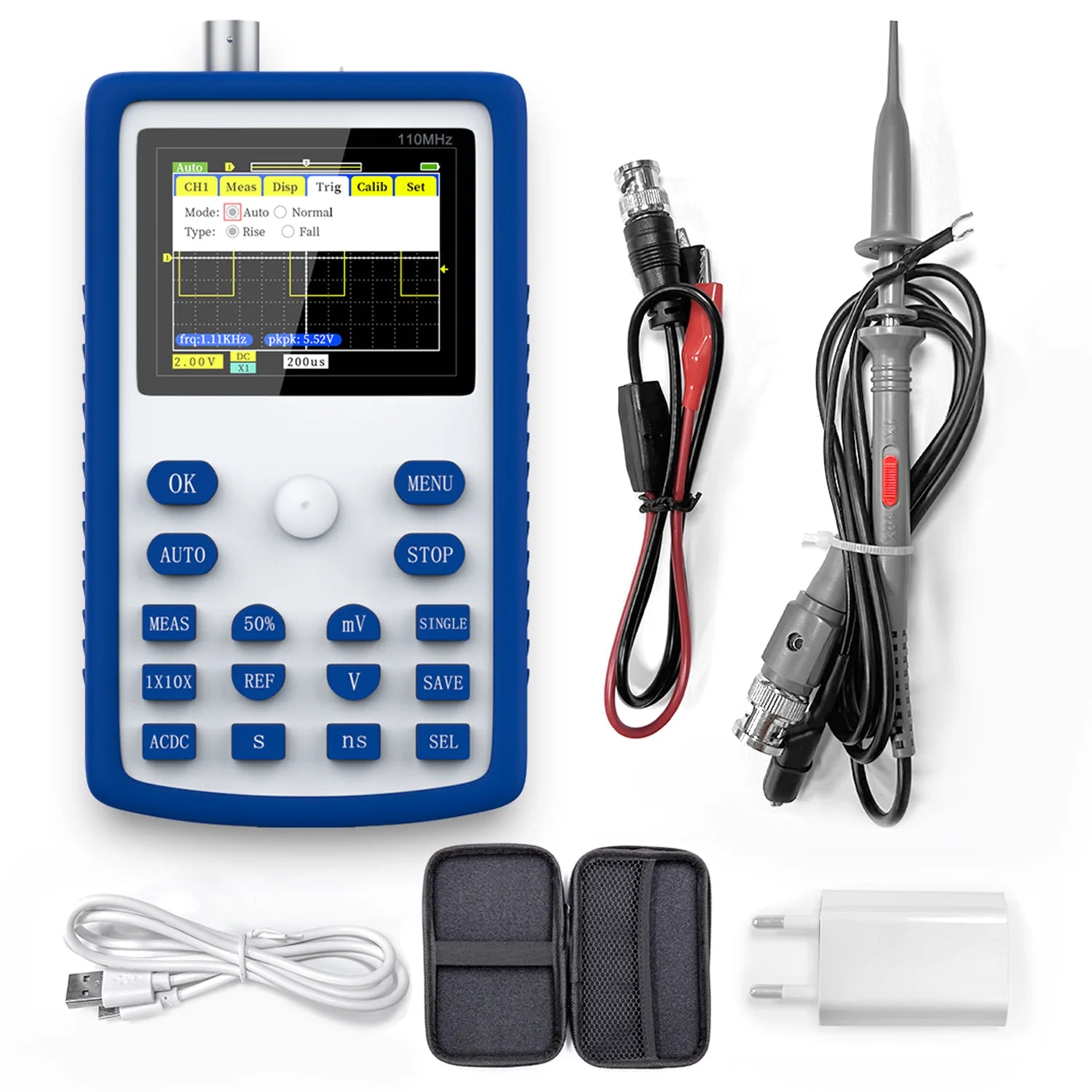

- 1 FNIRSI-1C15 oscilloscope

- 1 P6100 High Voltage Probe

- 1 Alligator Clip Probe

- 1 Micro USB charging cable

- 1 English User Manual

- 1 Cloth bag

Manual:

Warning Tips:

1. Electrical Safety:Always ensure that the device is used in accordance with electrical safety standards to prevent electric shock or damage to the equipment.

2.High Voltage: Exercise caution when working with high voltage signals. Make sure to use appropriate safety measures and protective gear to avoid injury.

3. Proper Grounding: Ensure that the oscilloscope is properly grounded to prevent electrical hazards and ensure accurate measurements.

4. Overloading: Avoid applying signals that exceed the specified input voltage range to prevent damage to the device.

5. Heat Dissipation: Allow the device to dissipate heat effectively by ensuring proper ventilation around the device during operation.

6. Firmware Updates: When performing firmware updates, ensure that the process is carried out correctly to avoid any potential disruptions or errors in the operation of the device.

7. Battery Usage: Follow the manufacturer's instructions for charging and using the battery to prevent overheating, fire, or explosion hazards.

8. Storage and Transportation: Store and transport the device carefully to prevent physical damage or exposure to extreme environmental conditions.

9. User Manual: Always refer to the user manual for proper usage instructions, safety precautions, and troubleshooting guidelines.

10. Maintenance: Regularly inspect and maintain the device to ensure optimal performance and safety. If any abnormalities are detected, discontinue use and seek professional assistance.
