Highlights
✦ Versatile Tester: FNIRSI LCR-P1 measures transistors, capacitors, resistors, inductors, diodes, MOSFETs, and batteries.
✦ User-Friendly Design: Features a replaceable patch seat, 1.44-inch color screen, 300mAh battery, and Type-C charging/data port.
✦ Anti-Burn Protection: Automatically discharges undischarged capacitors to prevent accidental damage.
✦ Infrared Analysis: Supports NEC infrared protocol analysis for remote control debugging and maintenance.
✦ Smart Identification: Automatically detects component pins, parameters, and specifications for faster work efficiency.
The LCR-P1 Transistor Tester is a high-precision, multifunctional electronic testing device designed specifically for electronic engineers, technicians, and enthusiasts.This device is intended for detecting and analyzing the performance and characteristics of semiconductor components such as transistors, diodes, triodes, and field-effect transistors (FETs).Equipped with a color screen, it allows for multi-parameter measurement of various components, automatically identifies the type and pin arrangement of the tested component, simplifying the operation process and enhancing testing efficiency.
Key Features
- Intelligent anti-burning design: Uncharged capacitors automatically discharge upon insertion, with a user-friendly protection mechanism to prevent damage.
- Data export: Supports connecting to a computer to export data, easily transferring the collected measurement data to facilitate further in-depth analysis on the computer.
- Alternate Measuring Modes: Innovatively incorporates replaceable test boards, easily tackling diverse test needs for unprecedented convenience and efficiency.
- Intelligent Recognition Components：Simply Plug & Clamp, One-Button Quick Identification of Component Parameters, Saving Time and Effort.
- Zener diode independent measurement: Independent measurement channel for measure diodes, measuring 0.01-32V with pre-measurement power supply for precise results.
Specifications
Brand
FNIRSI
Model
LCR-P1
Dimensions
13x8.5x4.5mm
Power Supply
Battery
Display Type
Digital Only
Transistor range
10 < B < 600
Capacitance Range
25pF-100mF
Inductance range
10μh-1000μh
Resistance Range
0.01Ω-50MΩ
Diode
Forward voltage < 4.5V
Voltage Regulator Diode
0.01-4.5V / 0.01-32V
Field-Effect Transistor
JFET / IGBT / MOSFET
Bidirectional Thyristor
Turn-on voltage < 5V, Gate trigger current < 6mA
IR Decoding
NEC protocol IR code
Display
1.44'' Color Screen
Power Supply
300mAh lithium battery
Operating Temperature
0~40℃
Charging
USB Type-C, 5V/1A
Anti-burn protection
supported
Data Export
supported
Firmware upgrade
supported
Product Details
Using Environment and Precautions
The device should be stored in a soft case, and the operating environment should be at a temperature of -5~40℃, and the relative humidity should not exceed 80%.
The device should be stored in a clean and dry place to avoid moisture, mold, heavy pressure, mechanical damage,humidity and direct sunlight.
Avoid using in the rain or fog, avoid dropping or shocking.
When the screen on the LCD does not light up, it indicates that the voltage is too low, and it needs to be charged in time.
Copyrights
The product specifications are subject to change without notice, allfinal interpretation rights were reserved by FNIRSI Technology Co., Ltd, All trademarks, product images，technical parameters are properties of FNIRSI Technology Co.. Ltd. All rights reserved.
Warranty
30-Day return and refund guarantee (Refer to our Refund Policy), 2-year warranty (only available for orders purchased directly from fnirsi.com), lifetime technique support by FNIRSI.
Please feel free to reach us with any concerns:
Email: service@fnirsi.com / info@fnirsi.com
We strive to reply to you within 24 hours.
FNIRSI has started researching and development manufacturer of quality optical products including Golf rangefinder, laser,measure device and binoculars since 2016.
Focus on the development,researching, and manufacturing for over 8 years.
We are committed to delivering premium products and exceptional customer service, striving to be your most reliable and intelligent assistant.
At Fnirsi, we are committed to providing our customers with the best value for their purchases. To ensure you always get the best price, we offer a 30-day price guarantee on all products purchased directly from fnirsi.com. This policy aims to give you confidence and peace of mind when shopping with us.
What is the 30-Day Price Guarantee?
Our 30-day price guarantee means that if you purchase a product from fnirsi.com and the price of that product drops within 30 days of your purchase date, you are eligible for a refund of the difference in price.
How Does the Price Guarantee Apply?
- Eligibility: The price guarantee applies only to purchases made on fnirsi.com. Products purchased from other retailers or third-party sellers are not eligible.
- Timeframe: The price drop must occur within 30 days of your original purchase date.
- Product Match: The price guarantee applies to the same product (identical model, specifications, and condition).
How to Apply for a Price Difference Refund
If you notice that the price of a product you purchased from fnirsi.com has dropped within 30 days, follow these steps to apply for a refund of the price difference:
- Documentation: Prepare your order number and proof of the price drop (such as a screenshot and link to the product page showing the reduced price).
- Contact Us: Reach out to our customer support team at info@fnirsi.com .Include your order number, proof of the price drop, and a brief explanation of your request.
- Verification: Our team will verify the price drop and your purchase details.
- Refund Process: Once verified, we will process the refund for the price difference to your original method of payment. It typically takes 1-3 business days for you to receive the refund.
At Fnirsi, we strive to provide our customers with high-quality products and exceptional customer service. Our 30-day price guarantee is just one of the ways we ensure you get the best value for your investment. Shop confidently with Fnirsi, knowing that you are always getting the best deal available.
Thank you for choosing Fnirsi. If you have any questions or need further assistance, please do not hesitate to contact our customer support team at info@fnirsi.com.
Customer Reviews
Based on 51 reviews
88%
(45)
8%
(4)
4%
(2)
0%
(0)
0%
(0)
J
FNIRSI® LCR-P1 Multifunction Transistor Capacitor Tester
S
Perfect
G

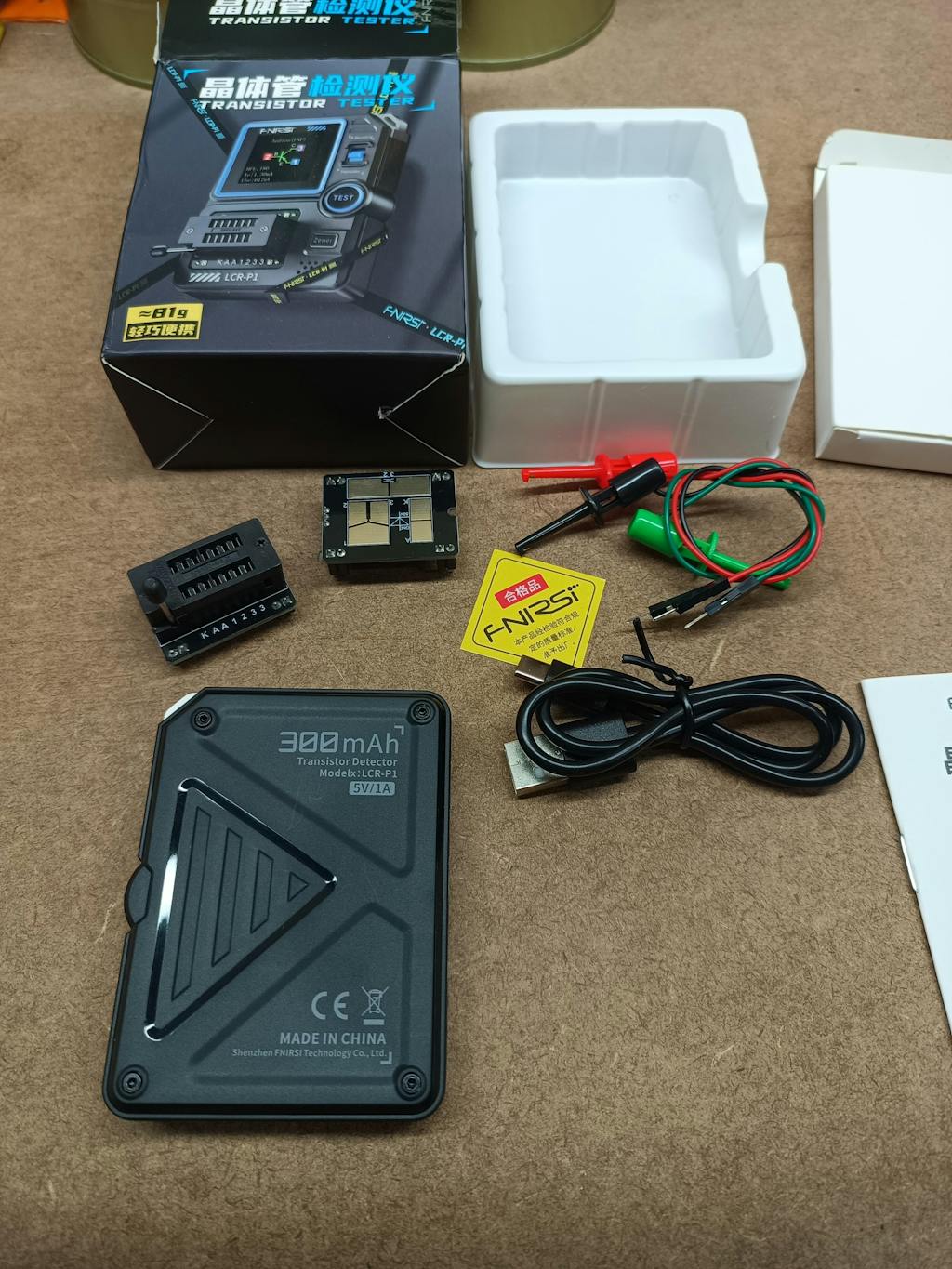

Intelligent bridge tweezers. Appears to be a very high quality piece of equipment and very well made. Also purchased the transistor tester. It also appears to be a very high quality instrument and all very well made. Both items are exactly as described and I would not hesitate to buy from them again.
V

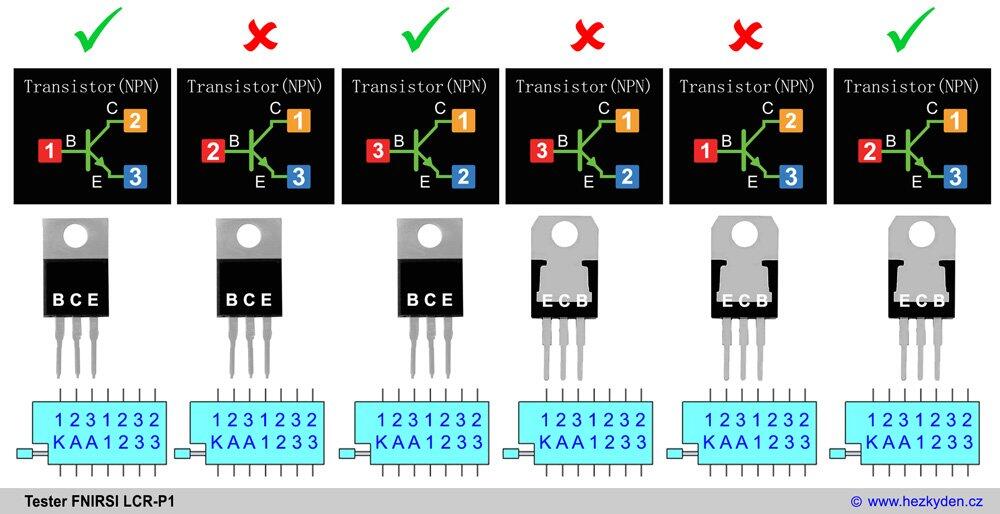

Incorrectly identifies the transistor terminals. In the photo, transistor H945, identified incorrectly. Schottky diode SR160 is identified as a 1.88 kOhm resistor (on photo). Firmware installed 1.0.6. If this is not corrected in future firmware, the device is absolutely unusable.
