Highlights
◉ 150W High Power Fast Heating Performance
◉ DC + USB-C PD Dual Power Input (Up to 150W)
◉ 100–350°C Wide Temperature Control Range
◉ PID Precision Temperature Stability (±3°C)
◉ Dual Mode: Constant Heating & Reflow Soldering
◉ 1.44" Color Display with Real-Time Monitoring
◉ Built-in Safety: Tilt, Overheat & Low Voltage Protection

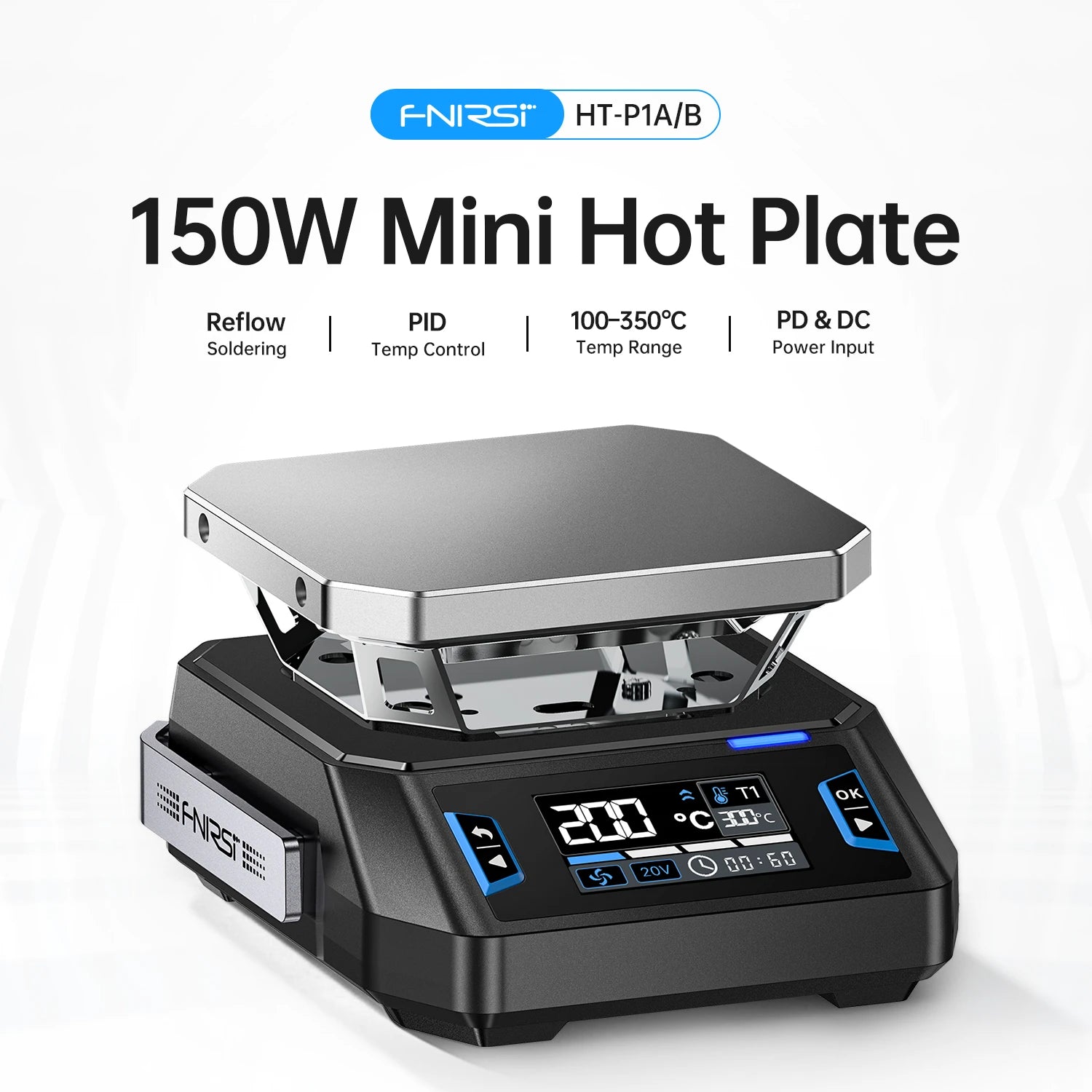

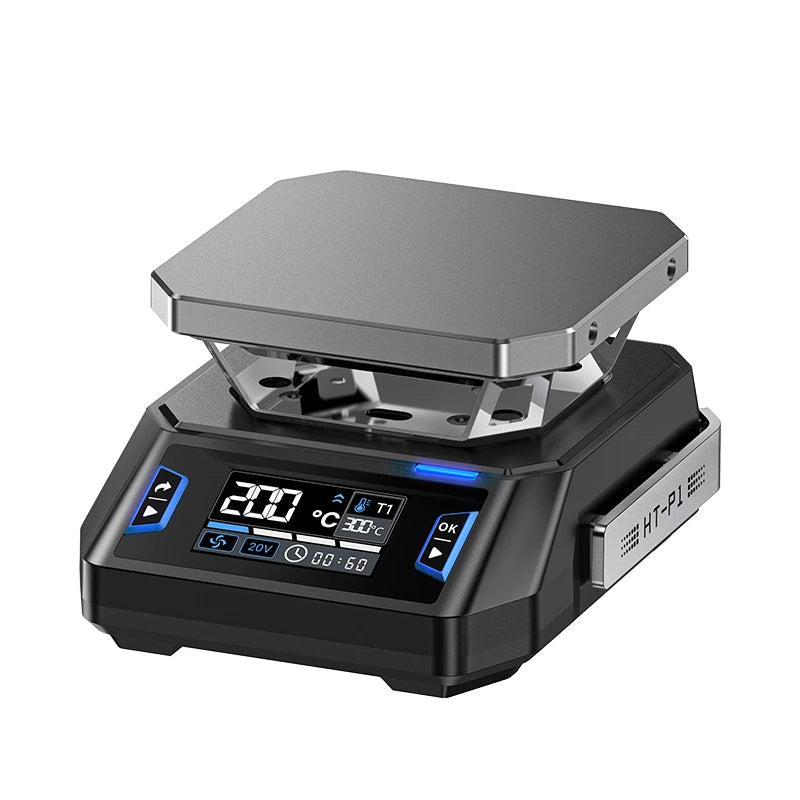

FNIRSI HT-P1 is a portable 150W mini hot plate with PID control, 100–350°C range, DC/USB-C PD input, dual heating & reflow modes for PCB work.
Feature

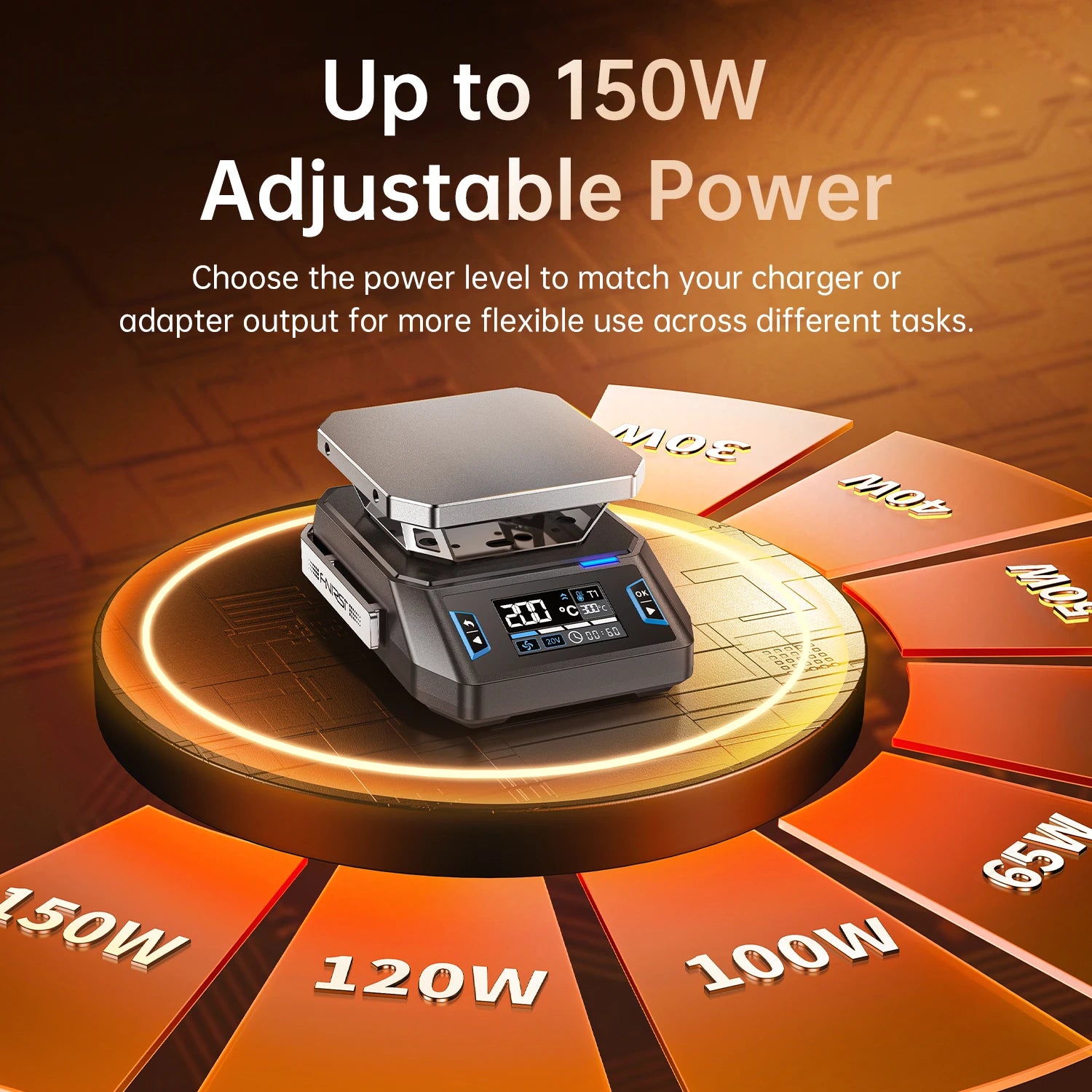

- High-Efficiency 150W Heating System: Delivers rapid thermal response with adjustable 30W–150W power output, ensuring stable performance for PCB rework and component heating tasks.

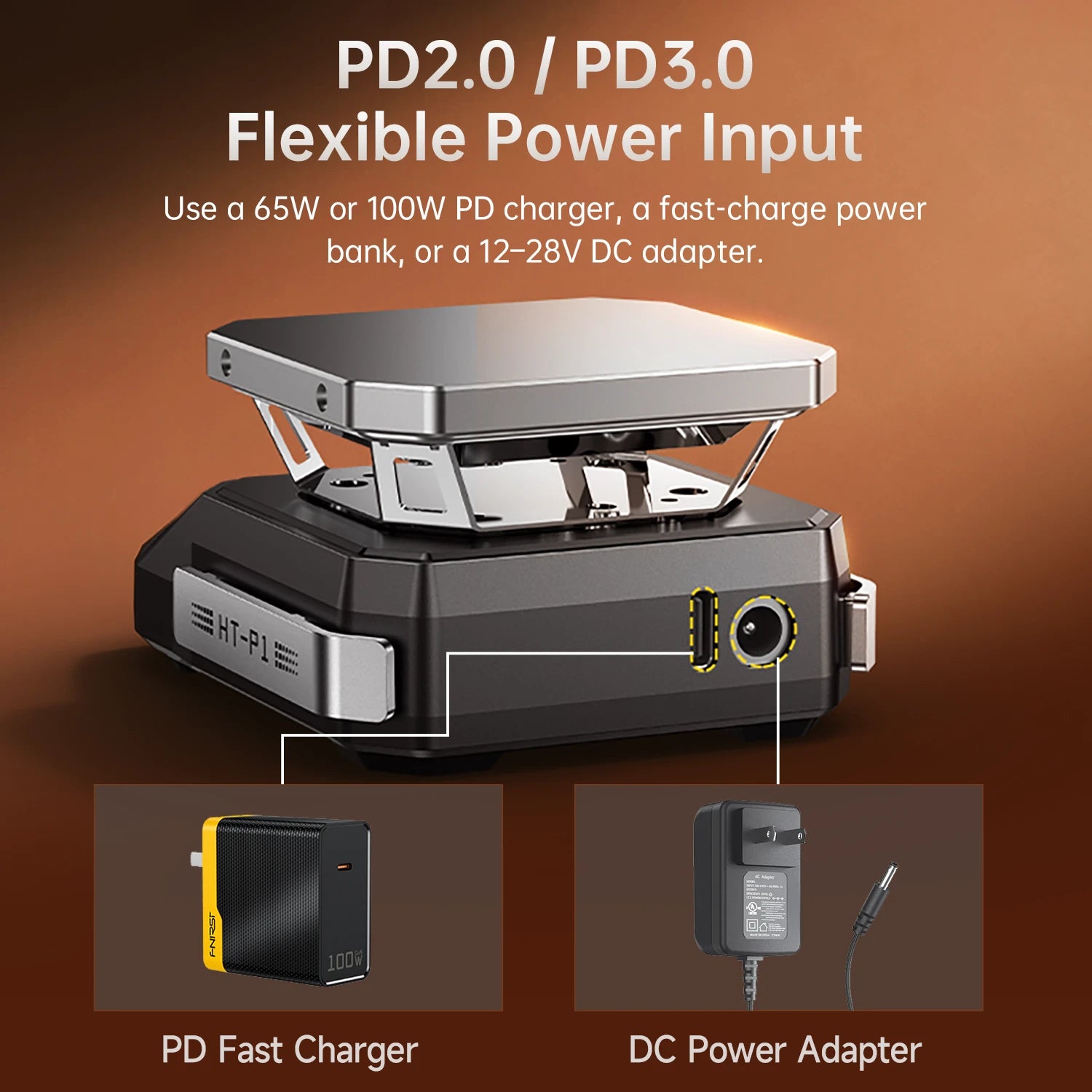

- Dual Power Input Flexibility: Supports DC 12V–28V and USB Type-C PD input (PD2.0/PD3.0/PD3.1 for HT-P1B), enabling mobile and bench-top operation.
- Precision PID Temperature Control: Maintains stable output with ±3°C accuracy across 100°C–350°C working range for consistent soldering performance.

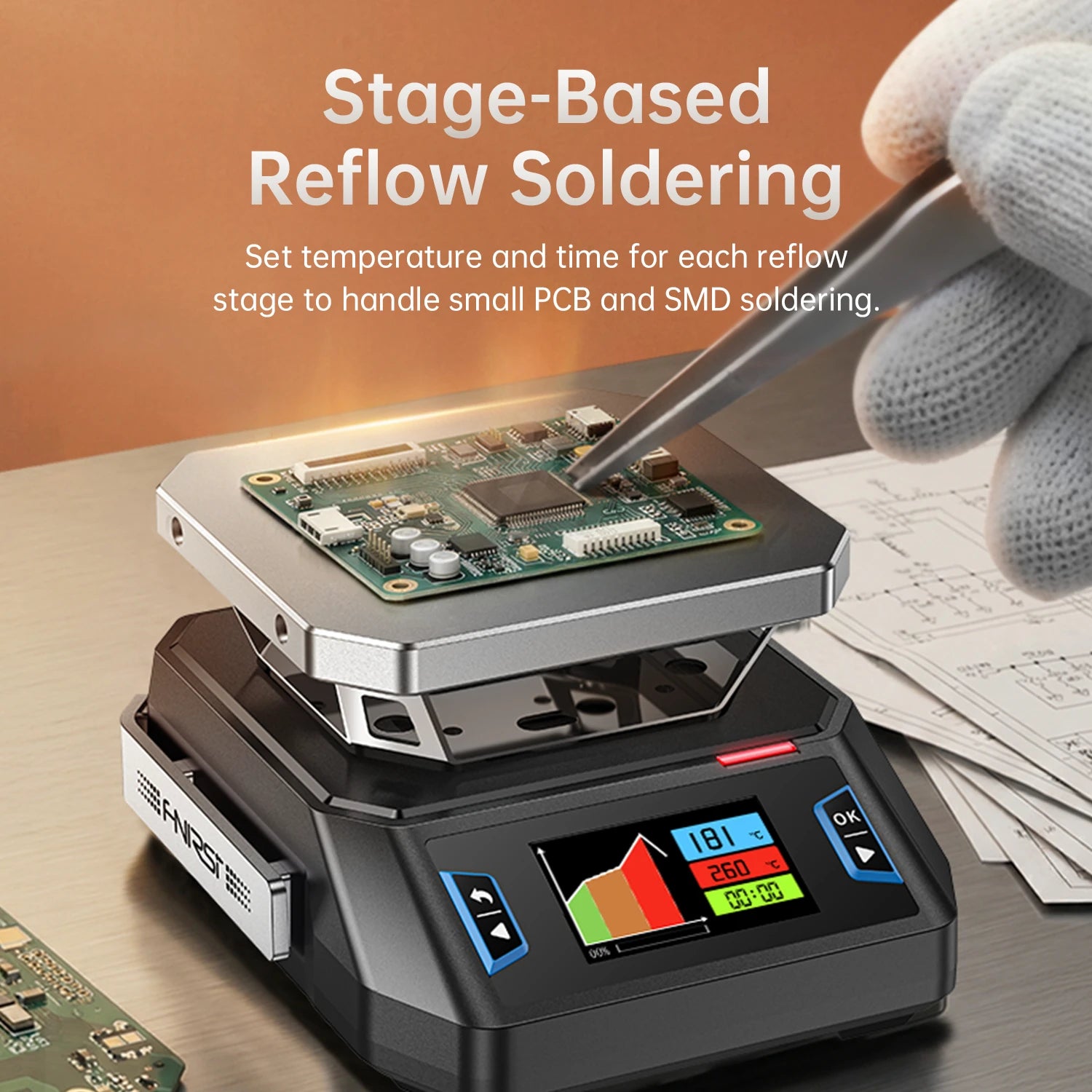

- Dual Working Modes: Constant temperature heating and simulated reflow soldering mode for multi-stage thermal profiles.
- 50×50mm Heating Area: Optimized compact heating surface for small PCB boards, SMD rework, and electronic component desoldering.
- 3 Preset Temperature Memory: T1/T2/T3 quick-switch presets for efficient workflow switching during repair operations.
- 1.44” Full-Color Display: Shows real-time temperature, target temperature, voltage, power usage, heating time, and system status clearly.
- Advanced Safety Protection System: Includes over-temperature protection, low-voltage warning, long-time protection, and tilt detection (20°–50° adjustable).
- Power Adaptation Control: Adjustable power rating ensures compatibility with different adapters and prevents unstable heating or restarts.
- Firmware Upgrade Support: USB Type-C firmware update capability ensures continuous optimization and system improvements.
- Compact Portable Design: Lightweight 157g body with detachable structure for easy maintenance and portability.
- Smart System Settings: Adjustable brightness, volume, temperature unit, auto-exit timing, and multilingual interface (EN supported).
- Stable Thermal Performance: Maintains consistent heating with intelligent control logic for professional-grade PCB rework tasks.
Specifications
Model
HT-P1A / HT-P1B
Power Input
DC 12V–28V / USB-C PD
Power Range
30W-150W
Standby Power
1.6W
Temperature Range
100°C-350°C
Temperature Stability
±3°C
Heating Area
50 × 50 mm
Display
1.44” Color Screen
Weight
≈157g
Tilt Detection
20°-50°
Protocol
PD2.0 / PD3.0 PD3.1 *(HT-P1B only)
Dimensions
≈68.8 × 81.8 × 44.5 mm
Note
* USB-C and DC input cannot be used at the same time
Package List:

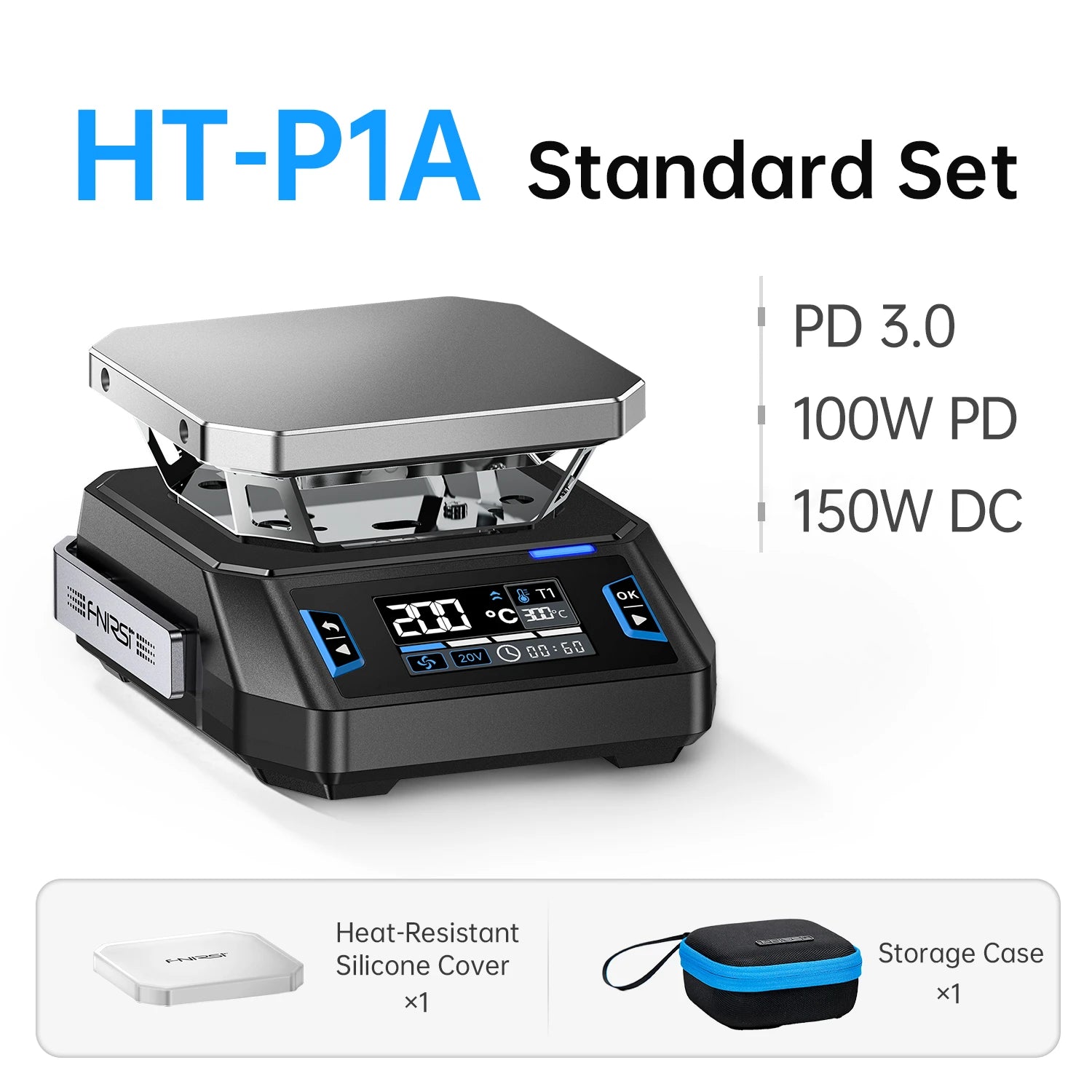

Standard Set (Std.)
◉ HT-P1 Hot Plate with a Heat-Resistant Silicone Cover (Models A or B)◉ Transparent Cover
◉ User Manual
◉ Storage Case

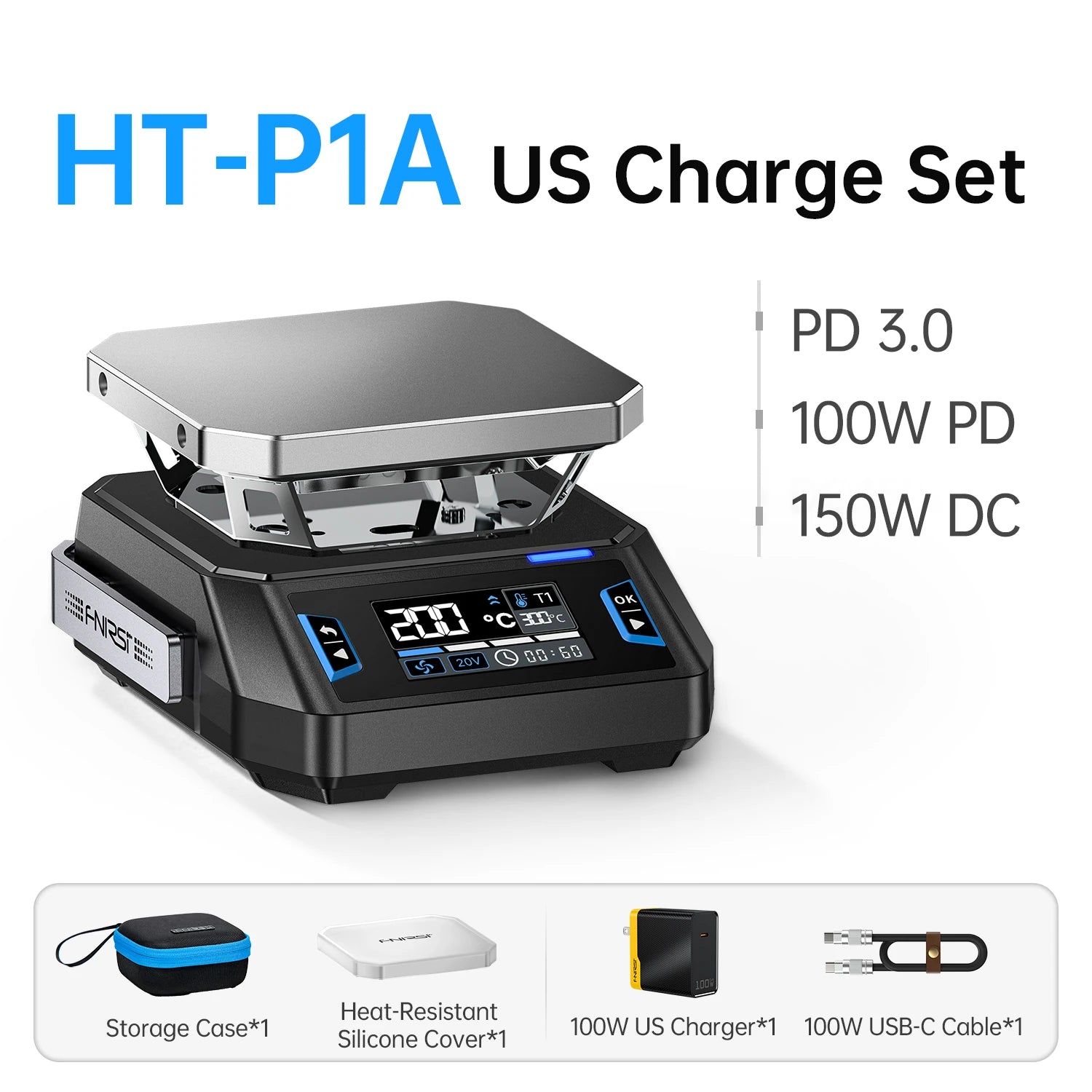

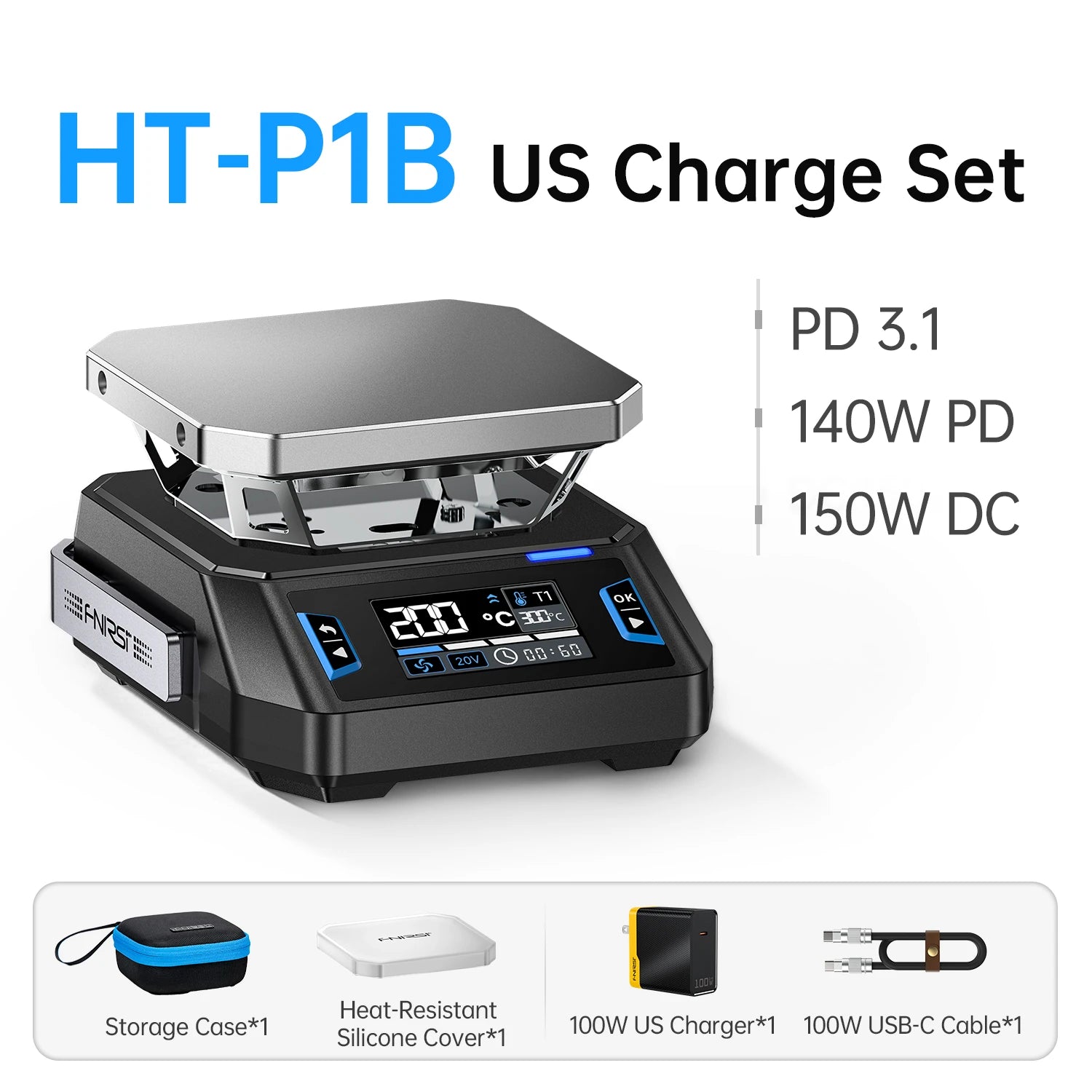

Charge Set (Pro)
◉ HT-P1 Hot Plate with a Heat-Resistant Silicone Cover (Models A or B)◉ Transparent Cover
◉ 100W PD Charger (EU or US Plug)
◉ 100W USB-C Cable
◉ User Manual
◉ Storage Case
Package List:
Standard Set (Std.)
◉ HT-P1 Hot Plate with a Heat-Resistant Silicone Cover (Models A or B)◉ Transparent Cover
◉ User Manual
◉ Storage Case
Charge Set (Pro)
◉ HT-P1 Hot Plate with a Heat-Resistant Silicone Cover (Models A or B)◉ Transparent Cover
◉ 100W PD Charger (EU or US Plug)
◉ 100W USB-C Cable
◉ User Manual
◉ Storage Case
Using Environment and Precautions
The device should be stored in a soft case, and the operating environment should be at a temperature of -5~40℃, and the relative humidity should not exceed 80%.
The device should be stored in a clean and dry place to avoid moisture, mold, heavy pressure, mechanical damage,humidity and direct sunlight.
Avoid using in the rain or fog, avoid dropping or shocking.
When the screen on the LCD does not light up, it indicates that the voltage is too low, and it needs to be charged in time.
