Highlights

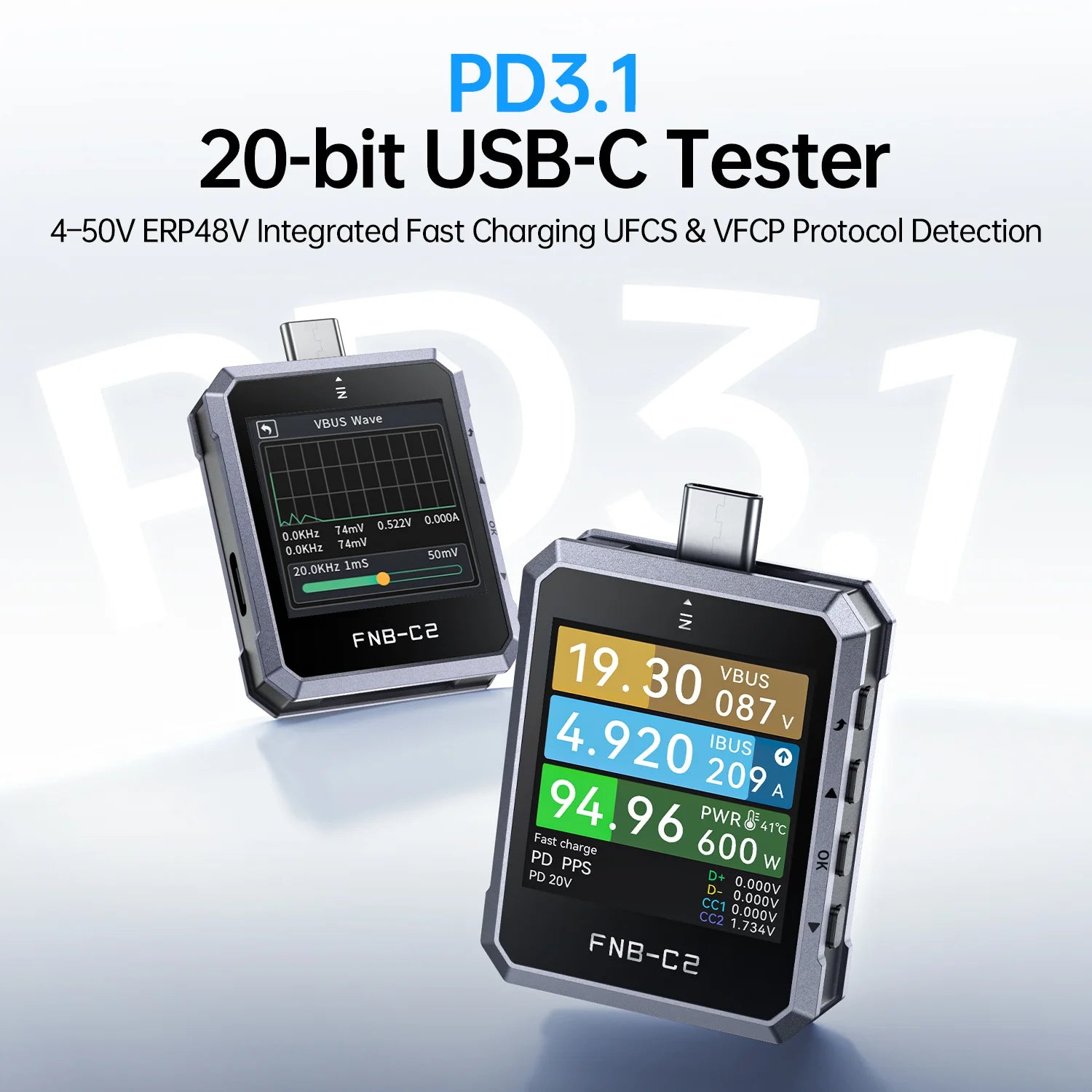

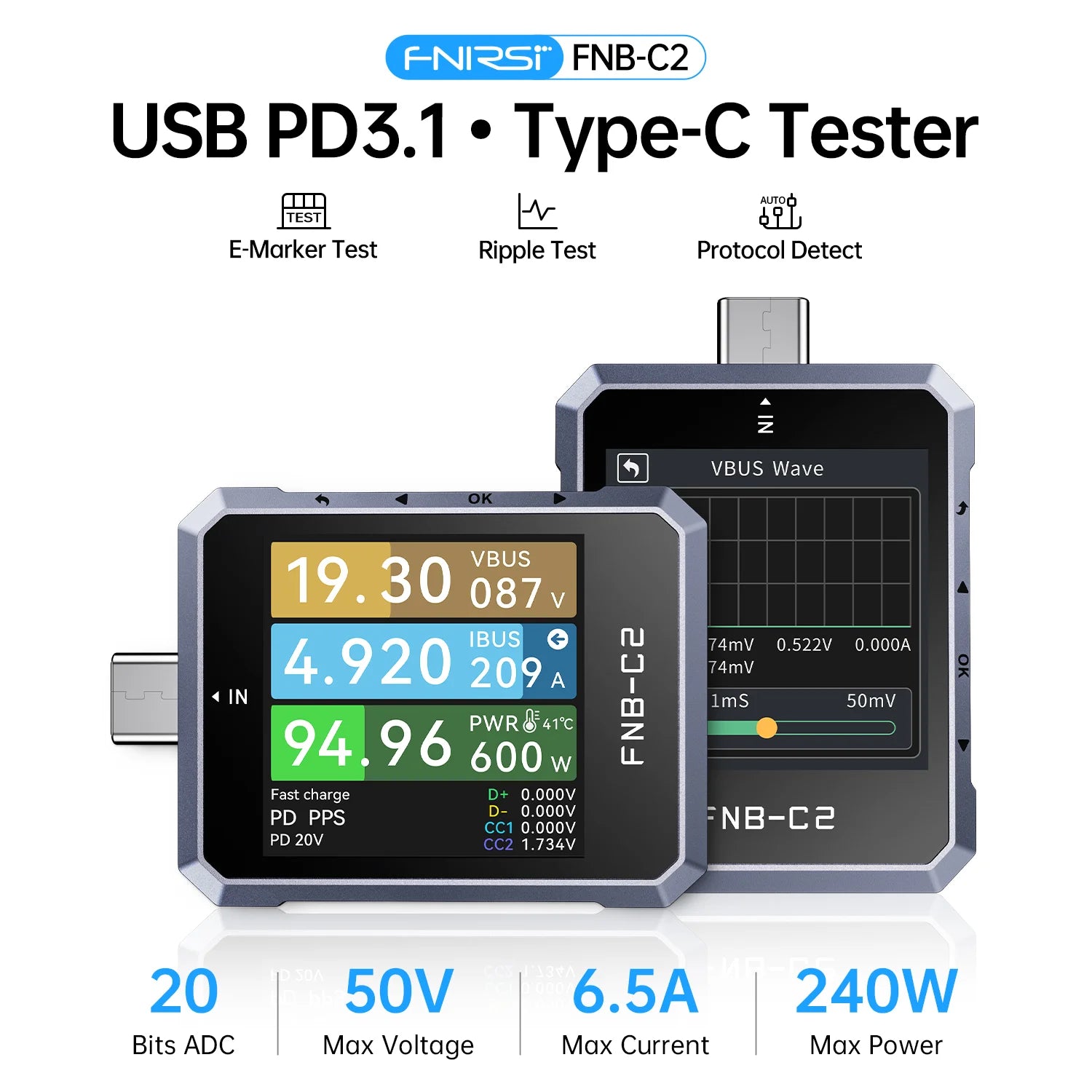

◉ 20-bit ADC & 7-digit resolution, lab-grade measurement accuracy
◉ PD3.1(EPR) & UFCS supported, auto fast charge protocol detection
◉ 50V/6.5A/240W wide range, all-power USB-C scenario coverage
◉ Dual-mode ripple test & 9h curve recording, professional power analysis
◉ E-Marker reading & cable simulation, full USB-C cable detection
◉ 10-group energy stats, battery capacity & efficiency calculation
◉ PD monitoring & QC-PD conversion, fast charge compatibility troubleshooting
◉ 1.54-inch HD display, 4-way gravity rotation & driver-free PC connection
Features

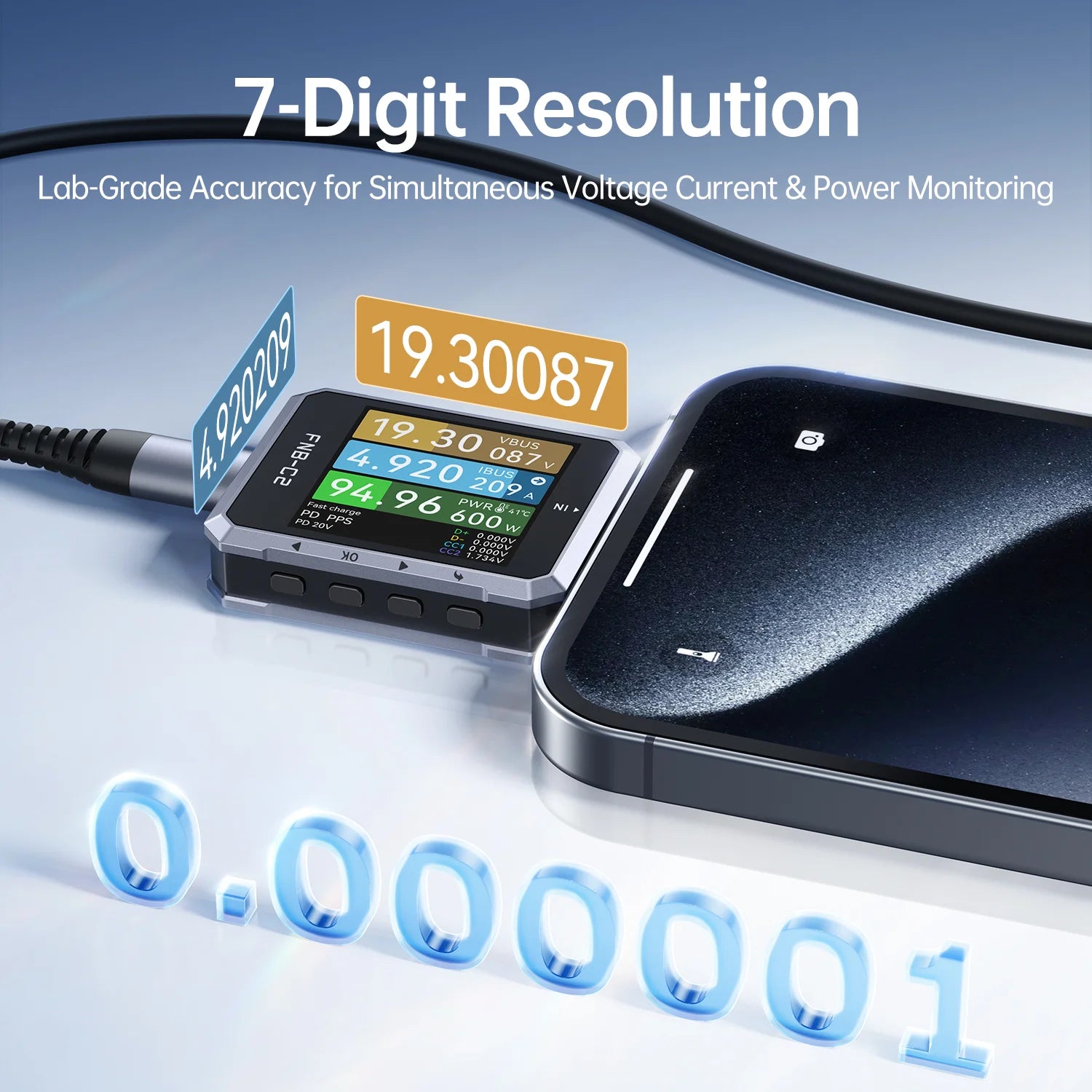

- 20-bit High-Precision ADC Measurement: Adopts an external 20-bit high-precision ADC chip, supporting 7-digit display for voltage, current and power with a resolution of 0.000001V/A/W and lab-grade accuracy.
- Wide Range of Measurement Metrics: Enables monitoring of 4~50V voltage, 0~6.5A current and 0~240W power, compatible with 100W/140W/240W high-power charging scenarios.
- PD3.1 and Multi-Protocols Compatibility: Fully supports PD3.1 EPR protocol with external physical chip for PD communication, realizing stable and safe fast-charging protocol interaction.

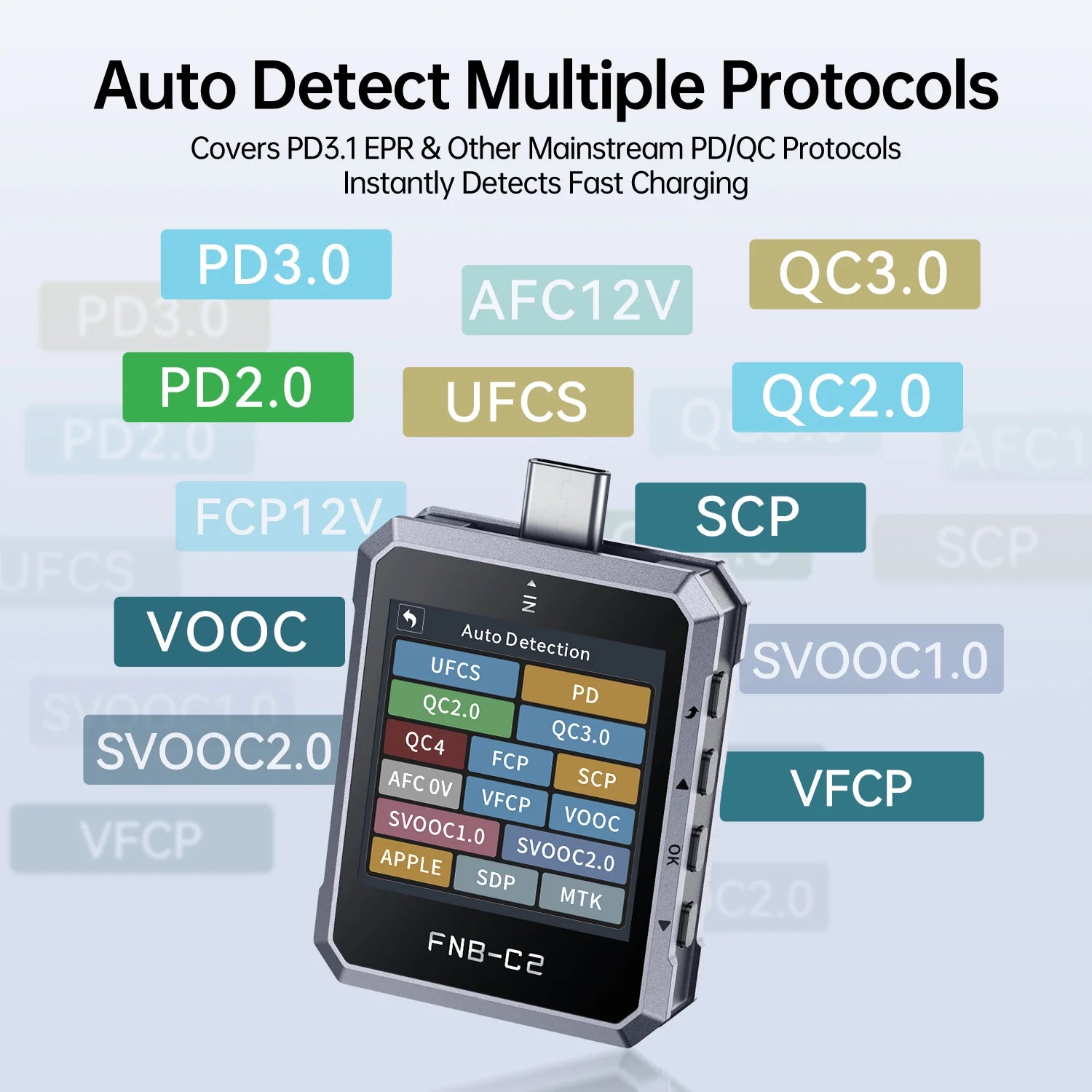

- Comprehensive Fast-Charging Protocol Detection: Automatically detects and triggers mainstream protocols including UFCS, QC2.0/3.0/4/5, Huawei FCP/SCP, OPPO VOOC/SVOOC and VIVO VFCP.

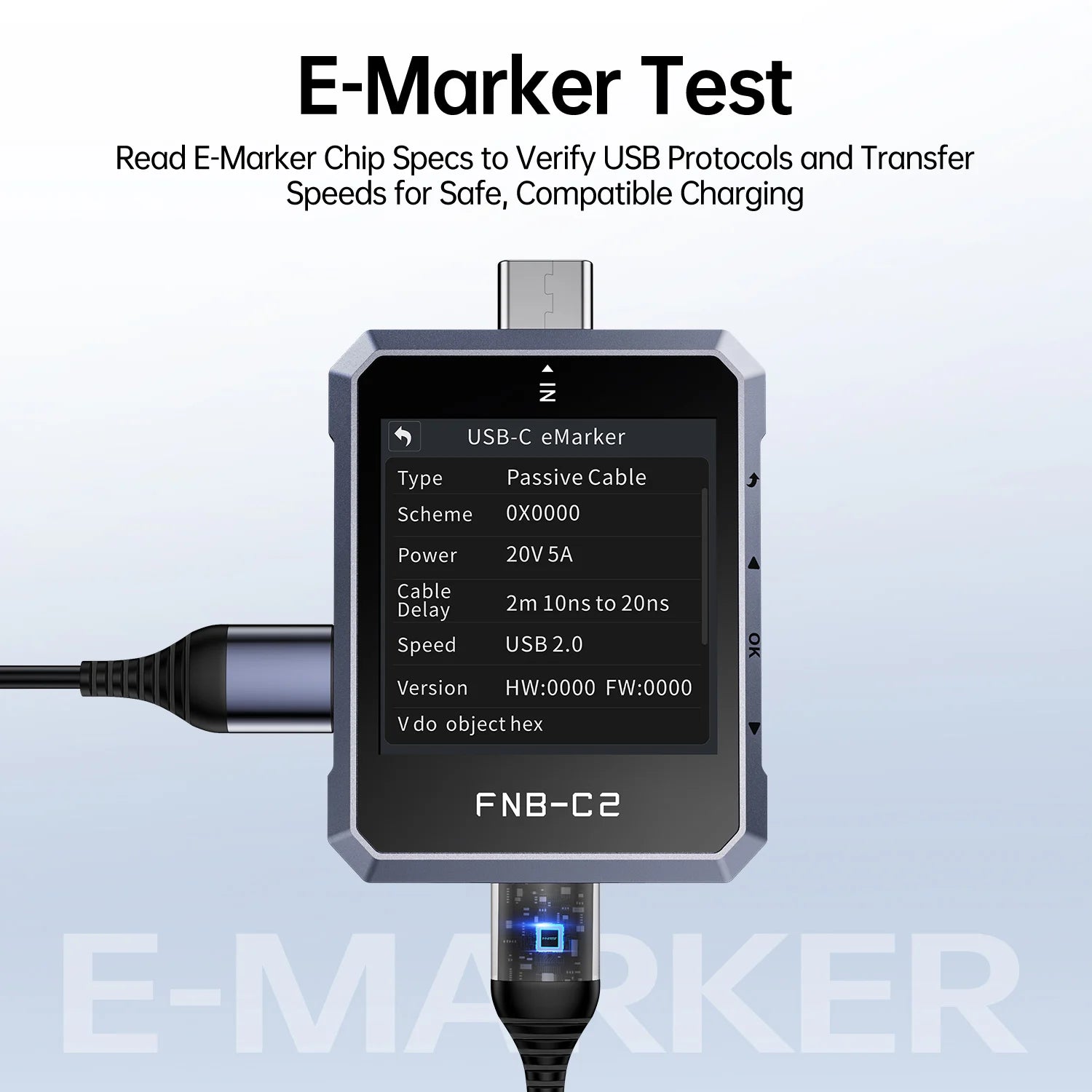

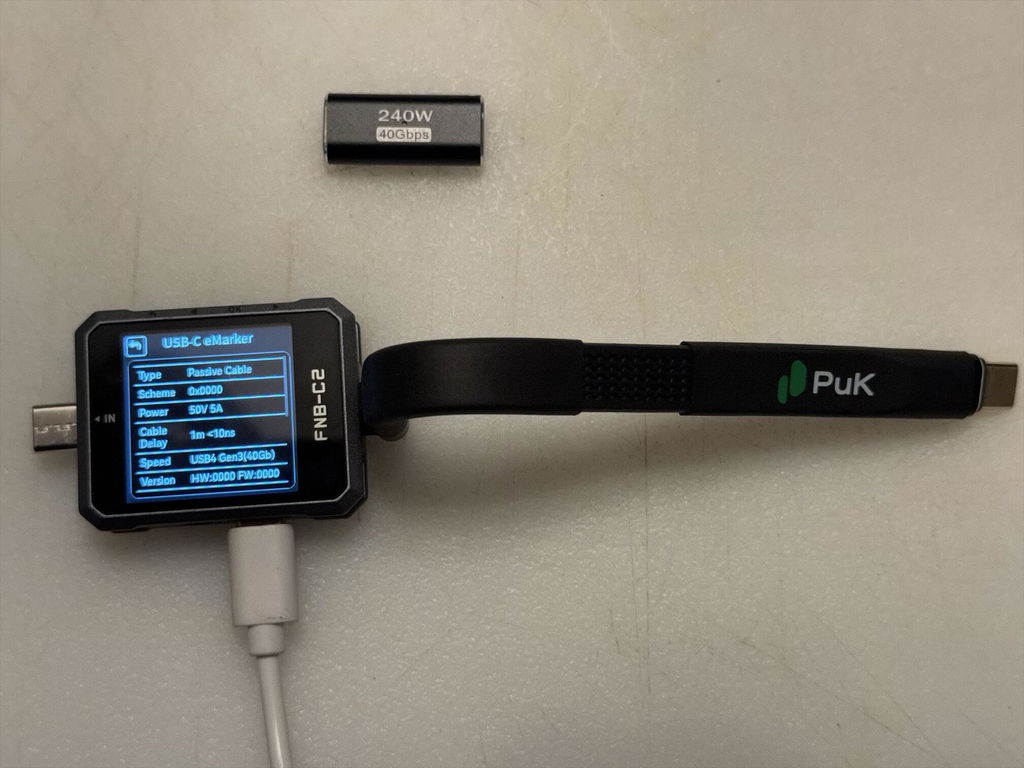

- USB-C E-Marker Chip Identification: Reads detailed information of 3A/5A/50V/EPR/TBT3/TBT4 cables such as type, power, length, transmission speed and version.

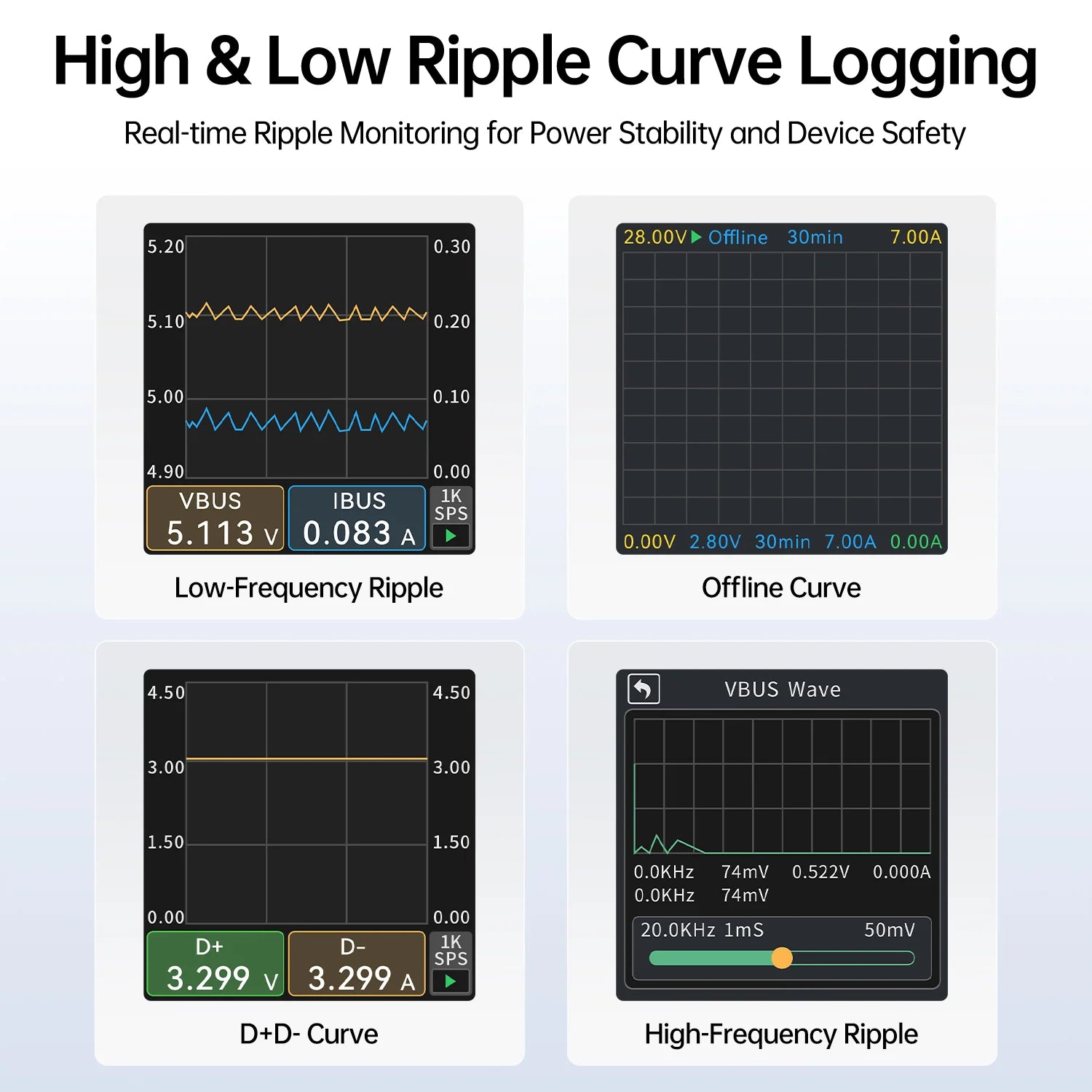

- Double-Mode Ripple and Waveform Testing: Supports low-speed waveform drawing (2sps~1Ksps) for voltage/current/D+/D- and high-speed ripple testing (20Ksps~2Msps) for AC-coupled voltage.
- Real-Time VBUS Waveform Monitoring: Displays USB power bus voltage waveform with adjustable frequency from 20.0KHz to 2.0MHz for intuitive power stability judgment.
- PD Protocol Monitoring and Packet Capture: Captures real-time PD protocol negotiation data between charging and powered devices to troubleshoot charging compatibility issues.
- QC to PD Protocol Conversion: Realizes adaptation between QC-only devices and PD-dominant chargers to improve fast-charging compatibility across different protocols.
- Multi-Group Energy and Capacity Statistics: Provides 10 switchable sets for capacity, electricity and time statistics, supporting automatic calculation of battery capacity and conversion efficiency.
- Long-Time Curve Recording Function: Enables 9-hour continuous recording of voltage and current curves with customizable data saving interval of 1~120 seconds and adjustable start/end rules.

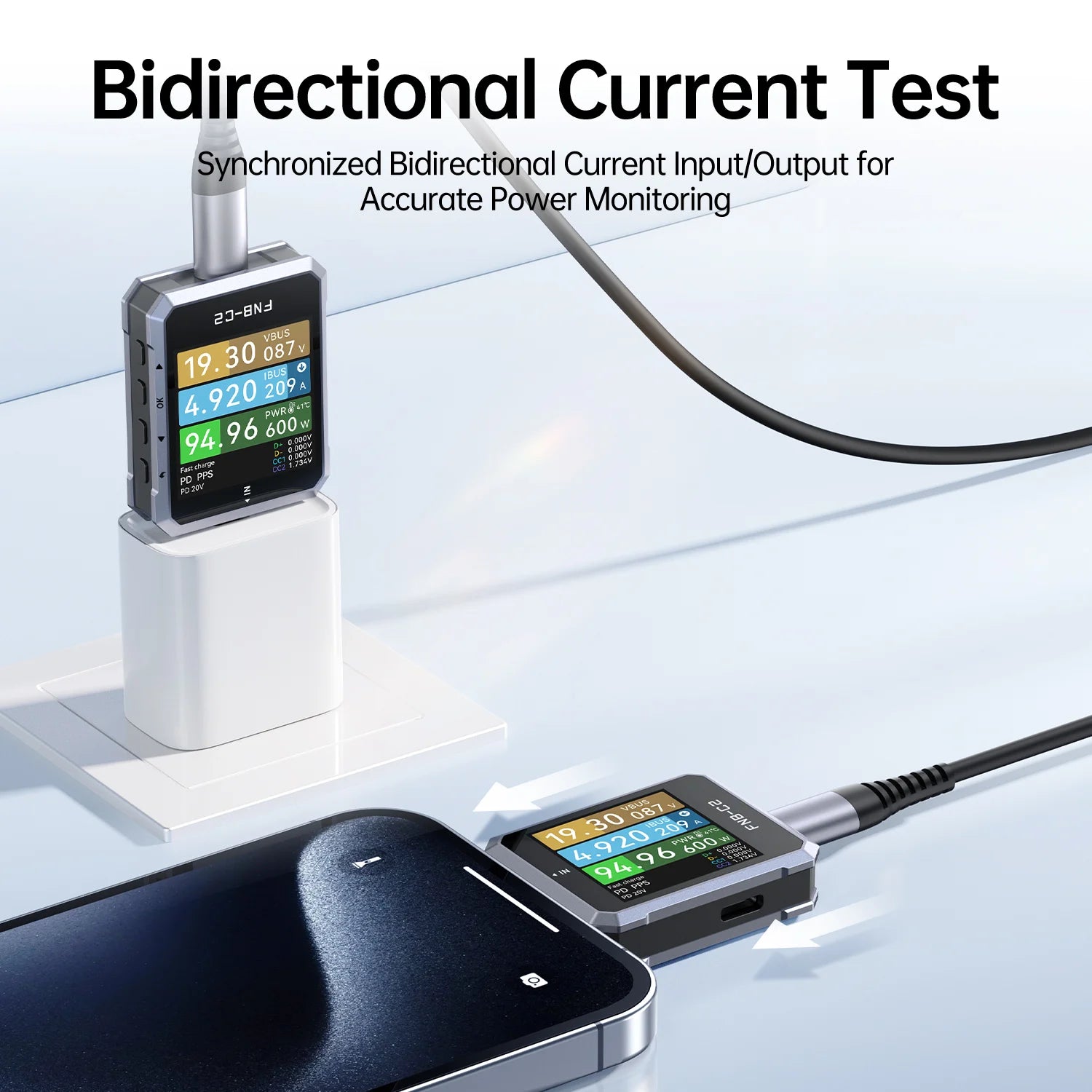

- Bidirectional Current USB-C Interface: Equips standard USB-C 24-PIN male and female ports with USB 4 Gen3 features, supporting bidirectional current and reversible insertion.
- Onboard Temperature Real-Time Monitoring: With 1℃ resolution, it monitors the device's working temperature in real time to prevent high-temperature risks during high-power operation.

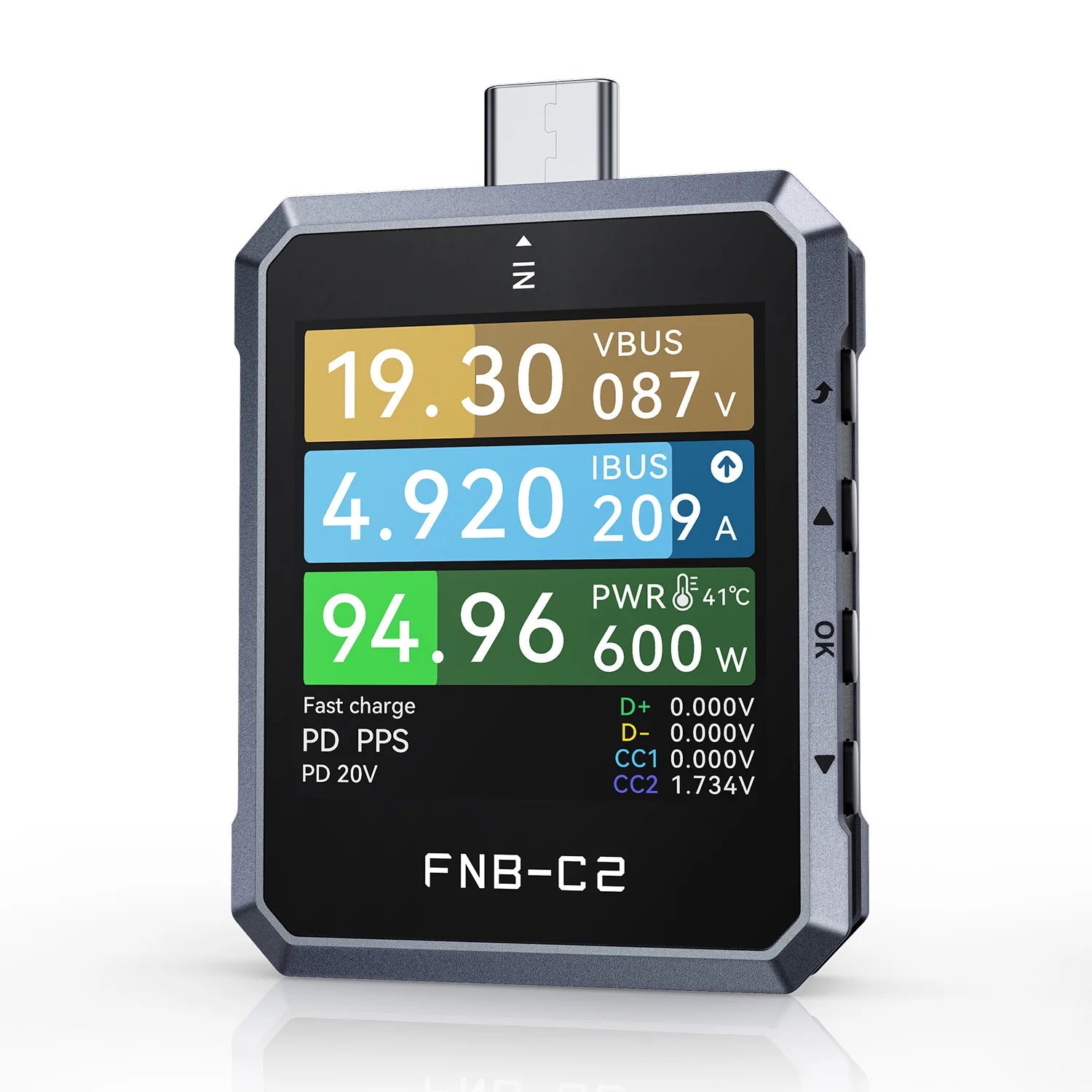

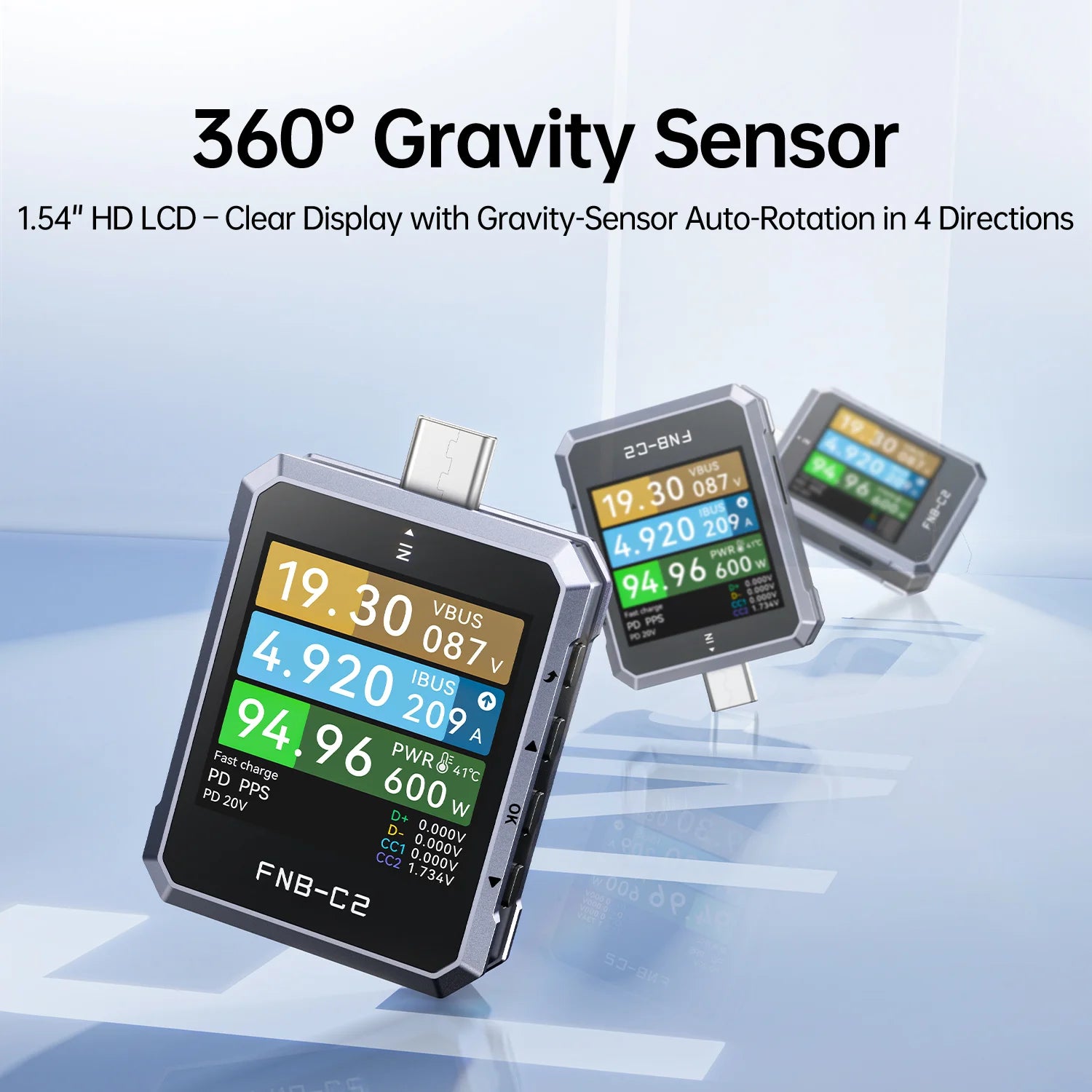

- HD Display with Gravity Sensor Rotation: Features a 1.54-inch 240×240 TFT-LCD screen and built-in gravity sensor supporting 4-directional automatic screen rotation for all interfaces.

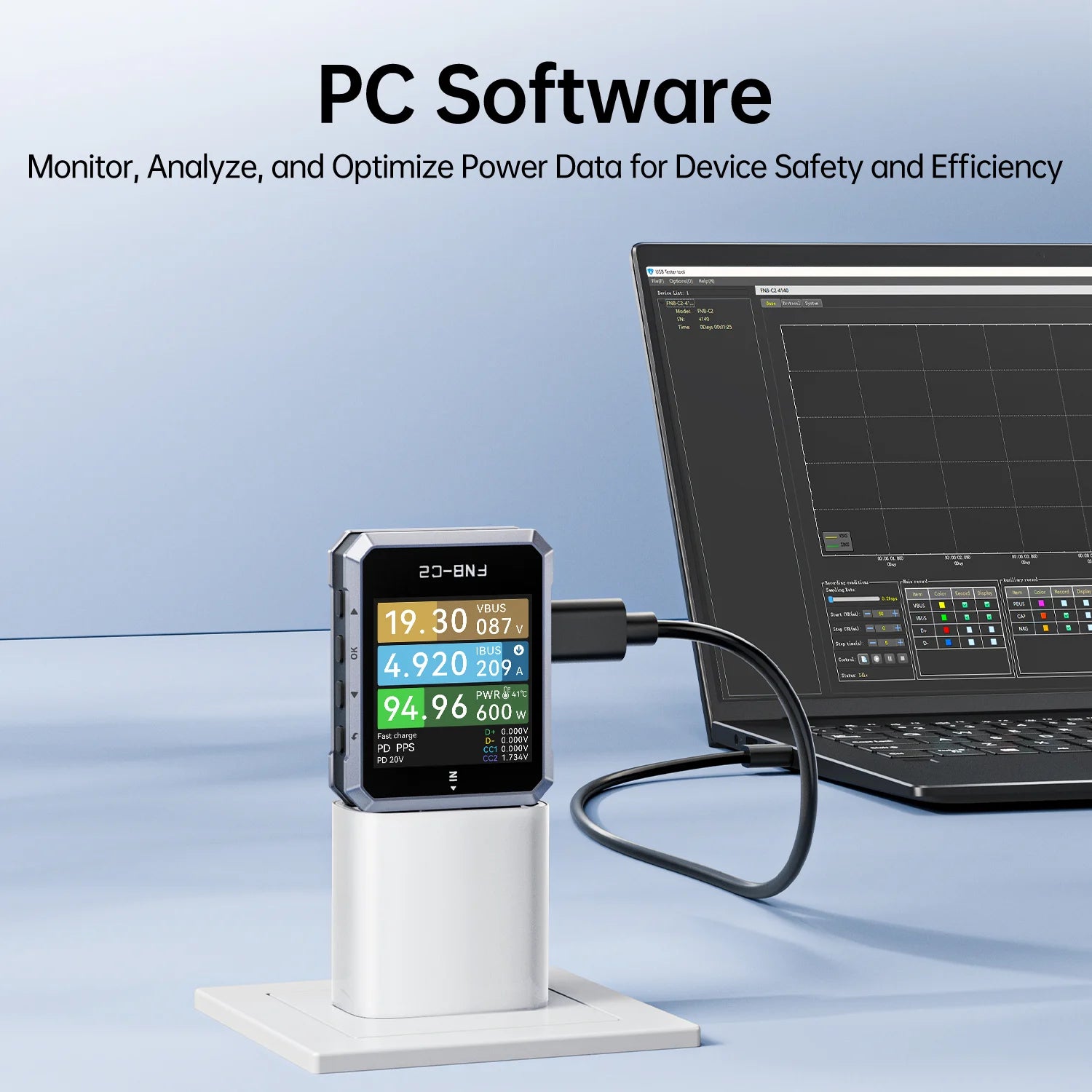

- Driver-Free PC Connection and Upgrade: HID PC port is compatible with Windows/Mac OS without drivers, supporting function expansion and one-click firmware upgrade via USB disk recognition.
- USB-C Cable Simulation Test: Simulates various cable configurations such as NO E-marker(60W), 20V5A(100W) and 50V5A(240W,EPR) to test charging performance under different conditions.
- Customizable Device System Settings: Supports adjustment of screen brightness, auto dim, theme color and language, with one-click reset of all settings to factory defaults.
Specifications
✦ Accuracy: ±(a%(‰) of reading + N digits)
Model
FNIRSI-C2
ADC
20-Bit
Monitoring Voltage
Range: 4 ~ 50V
Resolution: 0.000001V
Accuracy: ±(0.2‰+2)
Resolution: 0.000001V
Accuracy: ±(0.2‰+2)
Monitoring Current
Range: 0 ~ 6.5A
Resolution: 0.000001A
Accuracy: ±(0.5‰+2)
Resolution: 0.000001A
Accuracy: ±(0.5‰+2)
Monitoring Power
Range: 0 ~ 240W
Resolution: 0.000001W
Accuracy: ±(0.5‰+2)
Resolution: 0.000001W
Accuracy: ±(0.5‰+2)
D+/D− Voltage
Range: 0 ~ 3.3V
Resolution: 0.001V
Accuracy: ±(1.0%+2)
Resolution: 0.001V
Accuracy: ±(1.0%+2)
CC1/CC2 Voltage
Range: 0 ~ 3.3V
Resolution: 0.001V
Accuracy: ±(1.0%+2)
Resolution: 0.001V
Accuracy: ±(1.0%+2)
Device Temperature
Range: ℃
Resolution: 1℃
Accuracy: ±(1.2%+3)
Resolution: 1℃
Accuracy: ±(1.2%+3)
Capacity
Range: 0 ~ 9999.99Ah
Resolution: 0.00001Ah
Resolution: 0.00001Ah
Energy Consumption
Range: 0 ~ 9999.99Wh
Resolution: 0.00001Wh
Resolution: 0.00001Wh
Recording Time
Range: 9 h 0 m 0 s
Resolution: 1 s
Resolution: 1 s

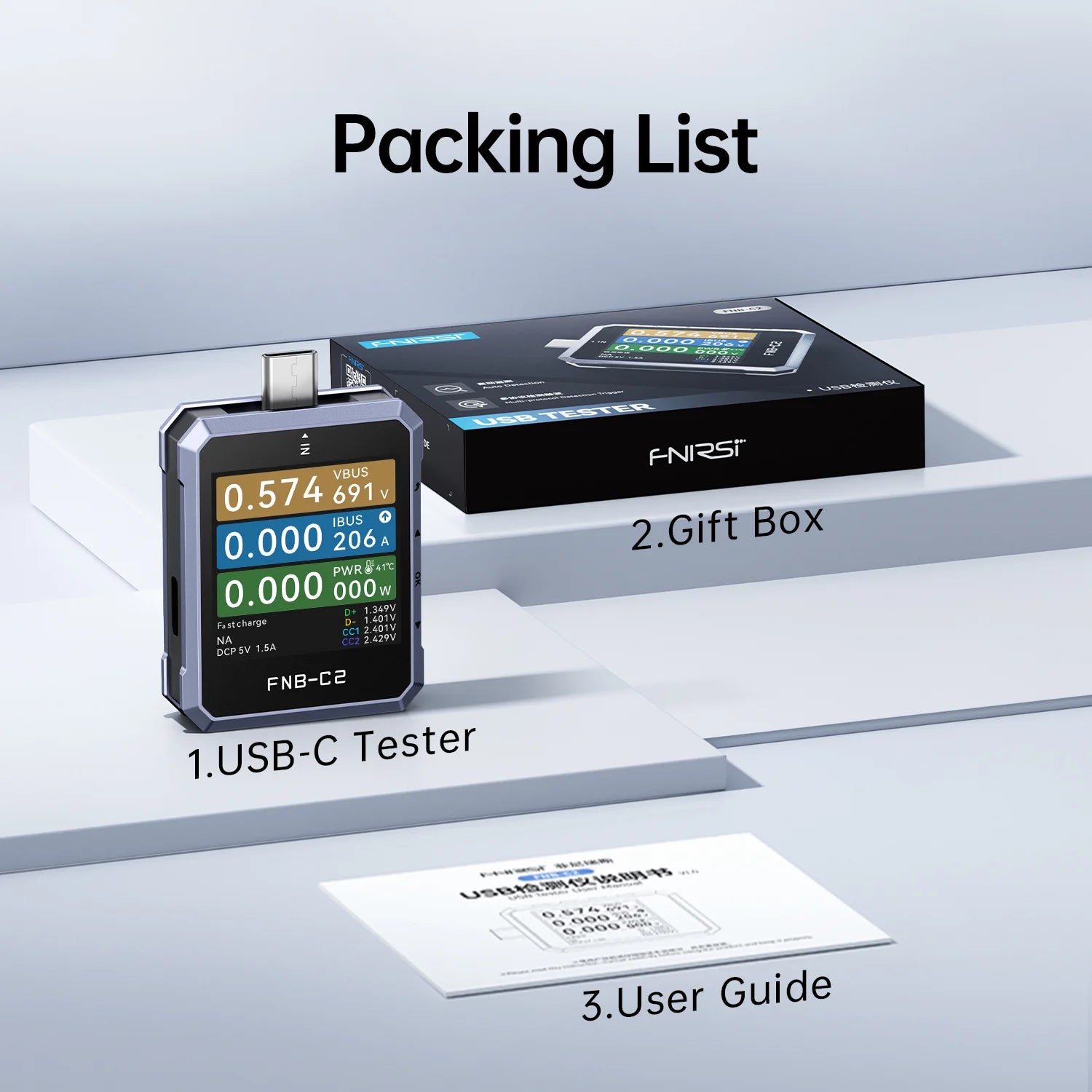

Package List:
◉ FNIRSI-C2 USB-C Tester *1
◉ Gift Box *1
◉ User Guide *1
◉ Gift Box *1
◉ User Guide *1
Package List:
◉ FNIRSI-C2 USB-C Tester *1
◉ Gift Box *1
◉ User Guide *1
◉ Gift Box *1
◉ User Guide *1
Using Environment and Precautions
The device should be stored in a soft case, and the operating environment should be at a temperature of -5~40℃, and the relative humidity should not exceed 80%.
The device should be stored in a clean and dry place to avoid moisture, mold, heavy pressure, mechanical damage,humidity and direct sunlight.
Avoid using in the rain or fog, avoid dropping or shocking.
When the screen on the LCD does not light up, it indicates that the voltage is too low, and it needs to be charged in time.
