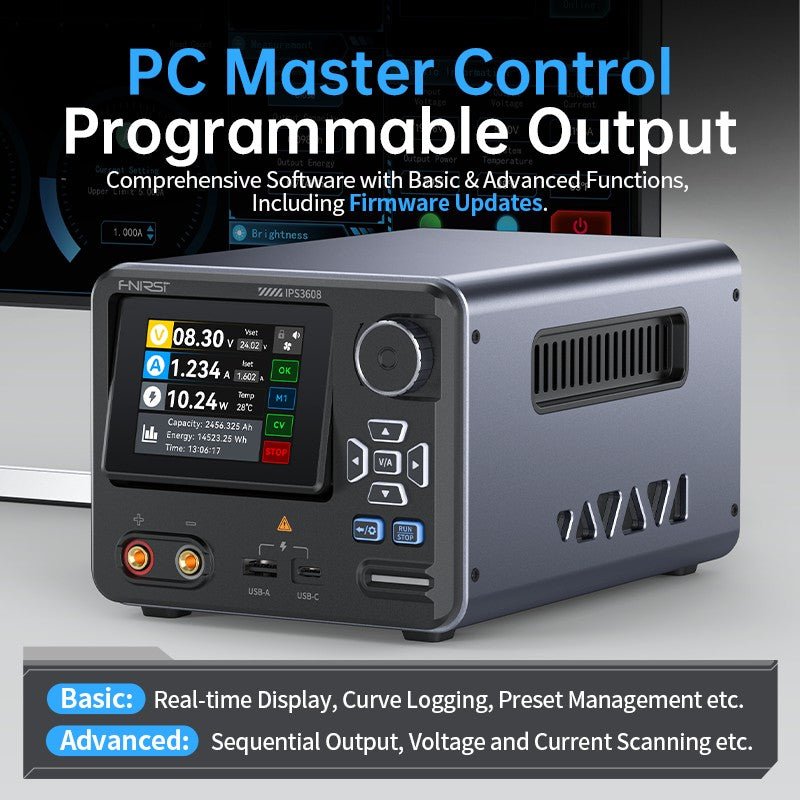

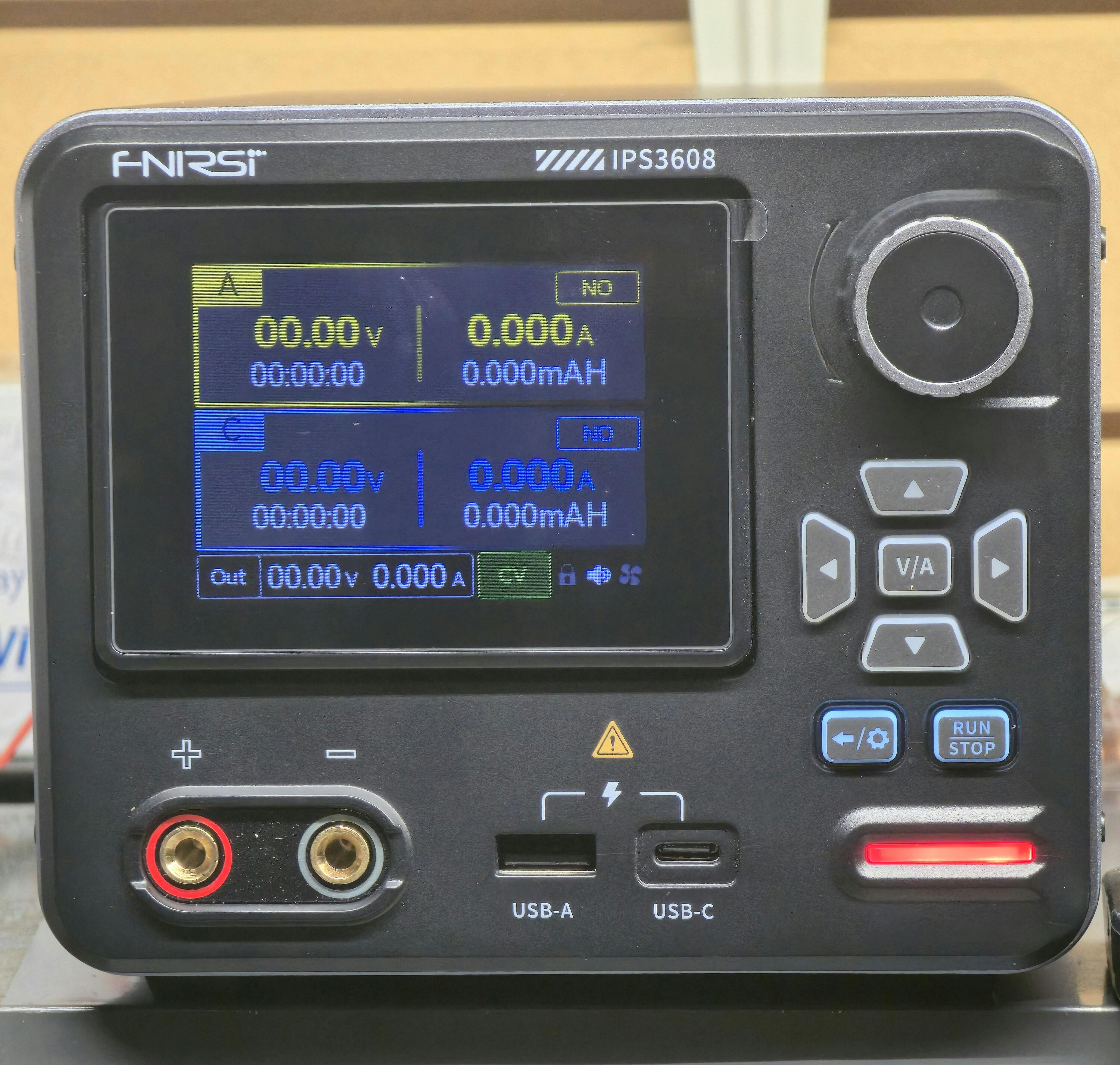

FNIRSI® IPS3608 AC-DC Intelligent Digital Control Power Supply

$139.99 USD
$215.99 USD
$139.99 USD
Extra $15 USD off coupon IPS3615, click to copy!
Plug: US Plug
📁 Manuals & FirmwaresDownload
FNIRSI® IPS3608 AC - DC Intelligent Digital Control Power Supply - FNIRSI

FNIRSI® IPS3608 AC-DC Intelligent Digital Control Power Supply

$215.99 $139.99

FNIRSI® IPS3608 AC-DC Intelligent Digital Control Power Supply

$215.99 $139.99
Plug: US Plug

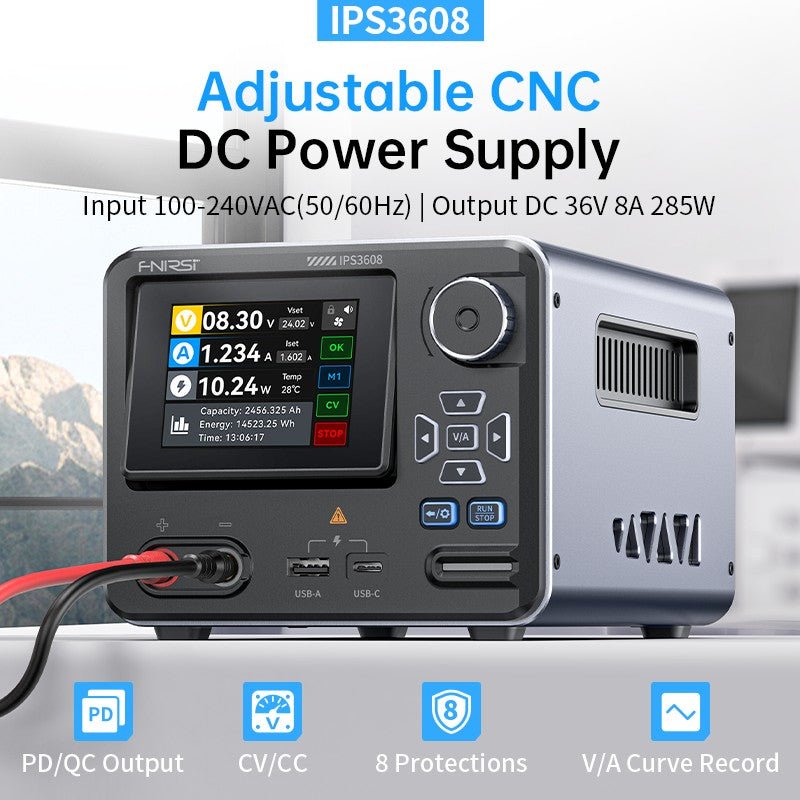

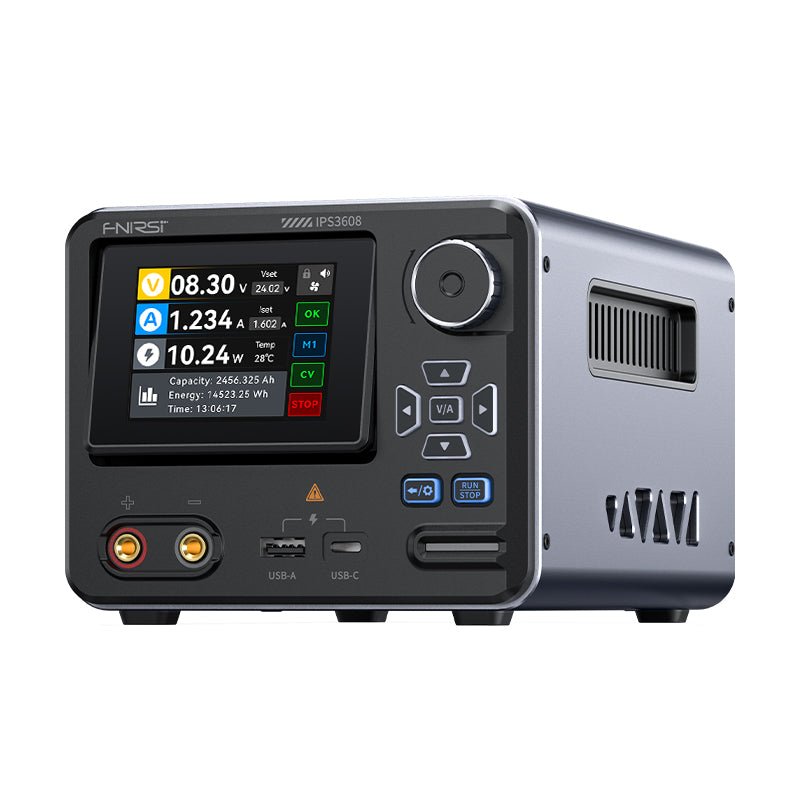

IPS3608 is an AC-DC intelligent digital control power supply that uses digital control technology to efficiently convert AC power into DC power. It is much more intelligent than traditional power supplies. It has the characteristics of convenient parameter adjustment, high-precision output, strong dynamic response, convenient digital control interface, and multiple electrical protections.


Specifications

Basic Parameters:

Model
IPS3608
Screen Material
2.8-inch color screen
Backlight
Adjustable backlight brightness
Language
中文, English
Product Size
≈138×214×115mm
Product Weight
≈1539g


Battery Parameters:

Input
Voltage Range: 100-240VAC(50/60Hz)
Setting Resolution
Voltage: 0.01V
Current: 0.001A
Readback Value Accuracy
Output Voltage: ±(0.3%+3 bits)
Output Current: ±(0.15%+5 bits)
Operating Environment
-10℃~40℃, 0%~75%RH

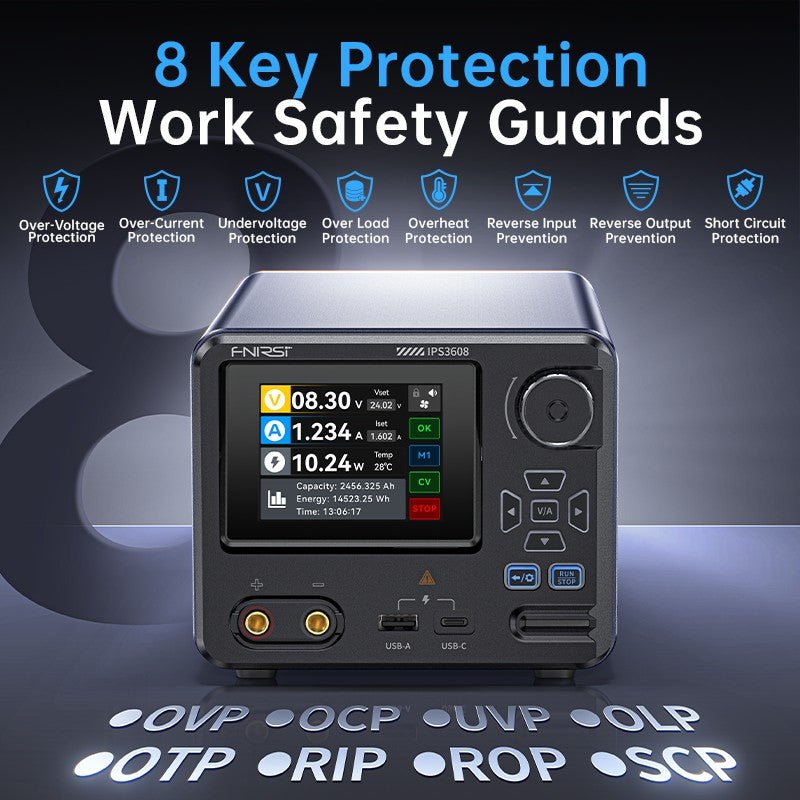

Protection Mechanism
◾ Overvoltage protection
◾ Overcurrent protection
◾ Overpower protection
◾ Overtemperature protection
◾ Undervoltage protection
◾ Short circuit protection
◾ Input reverse connection protection
◾ Output reverse injection protection
Output
Voltage: DC 0~36V
Current: 0~8A
Power: 0~285W
Load Regulation Rate
±(0.2%+2 bits)
※Accuracy calculation method: one byte is the minimum resolution, such as 5V, the error is ±(5 x 0.3% + 3 x 0.01), that is, 5 ± 0.045V


Fast Charging Protocol:

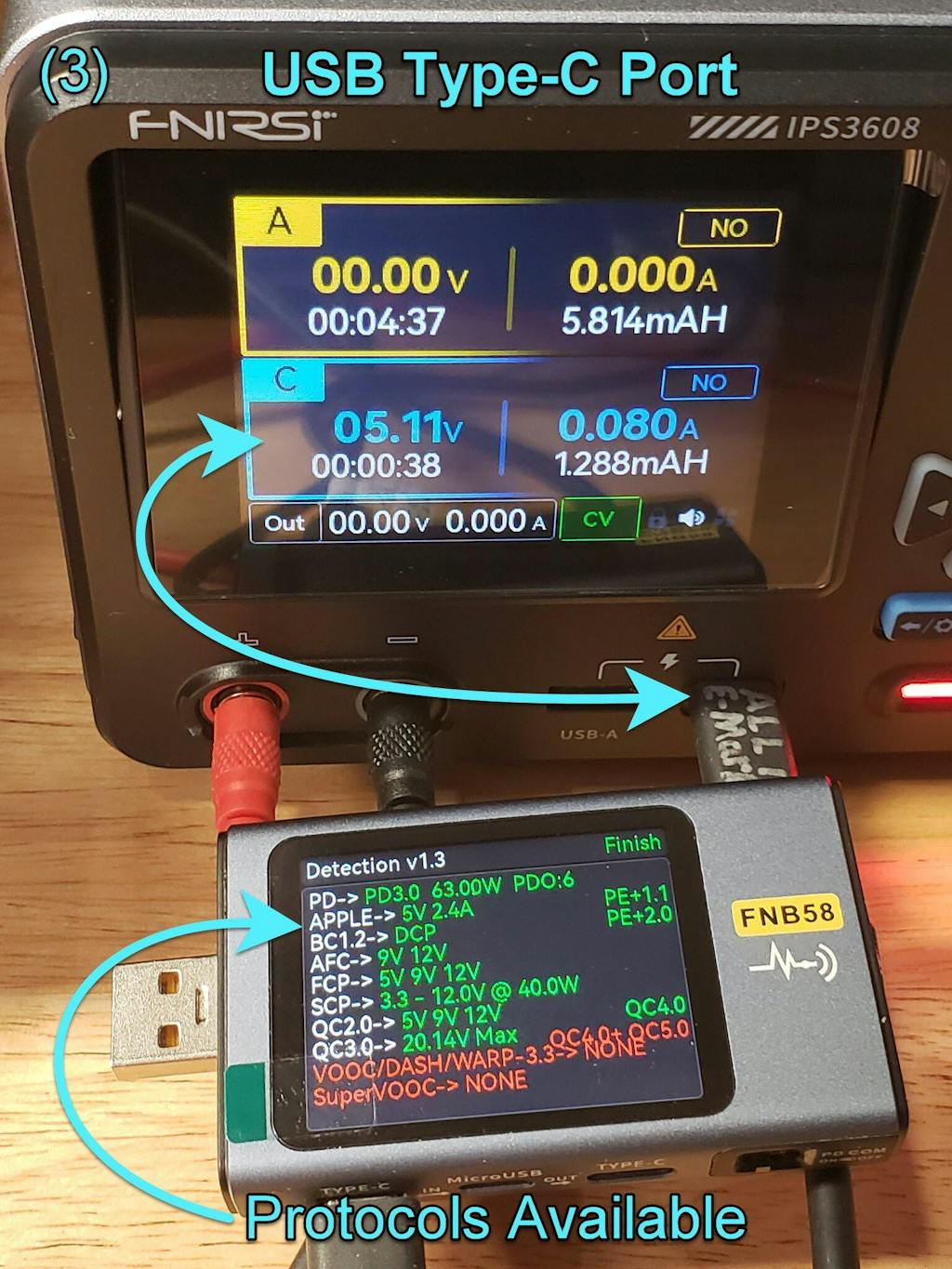

USB-C

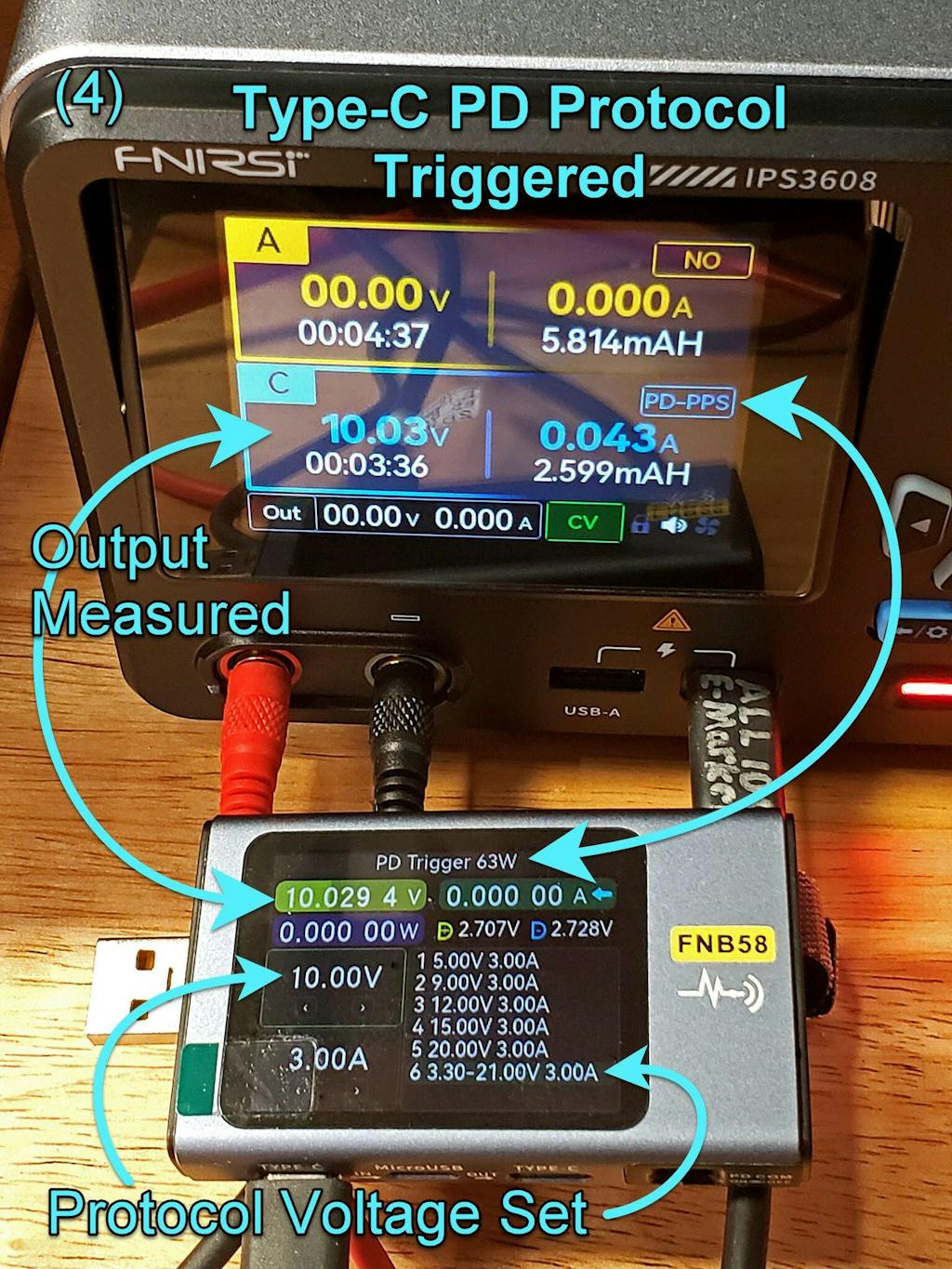

PD3.0

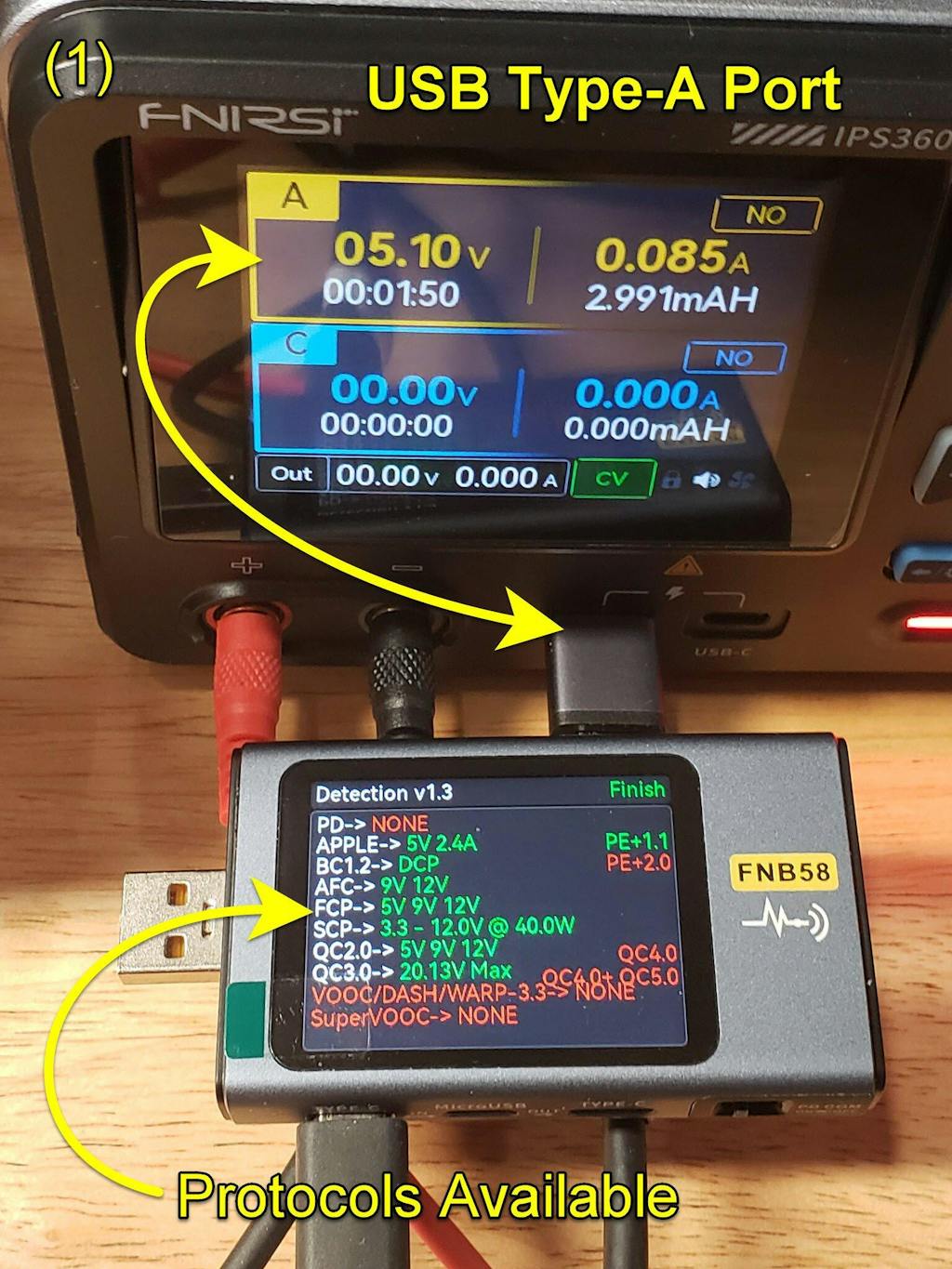

USB-A
HUAWEI FCP
HUAWEI SCP
AFC

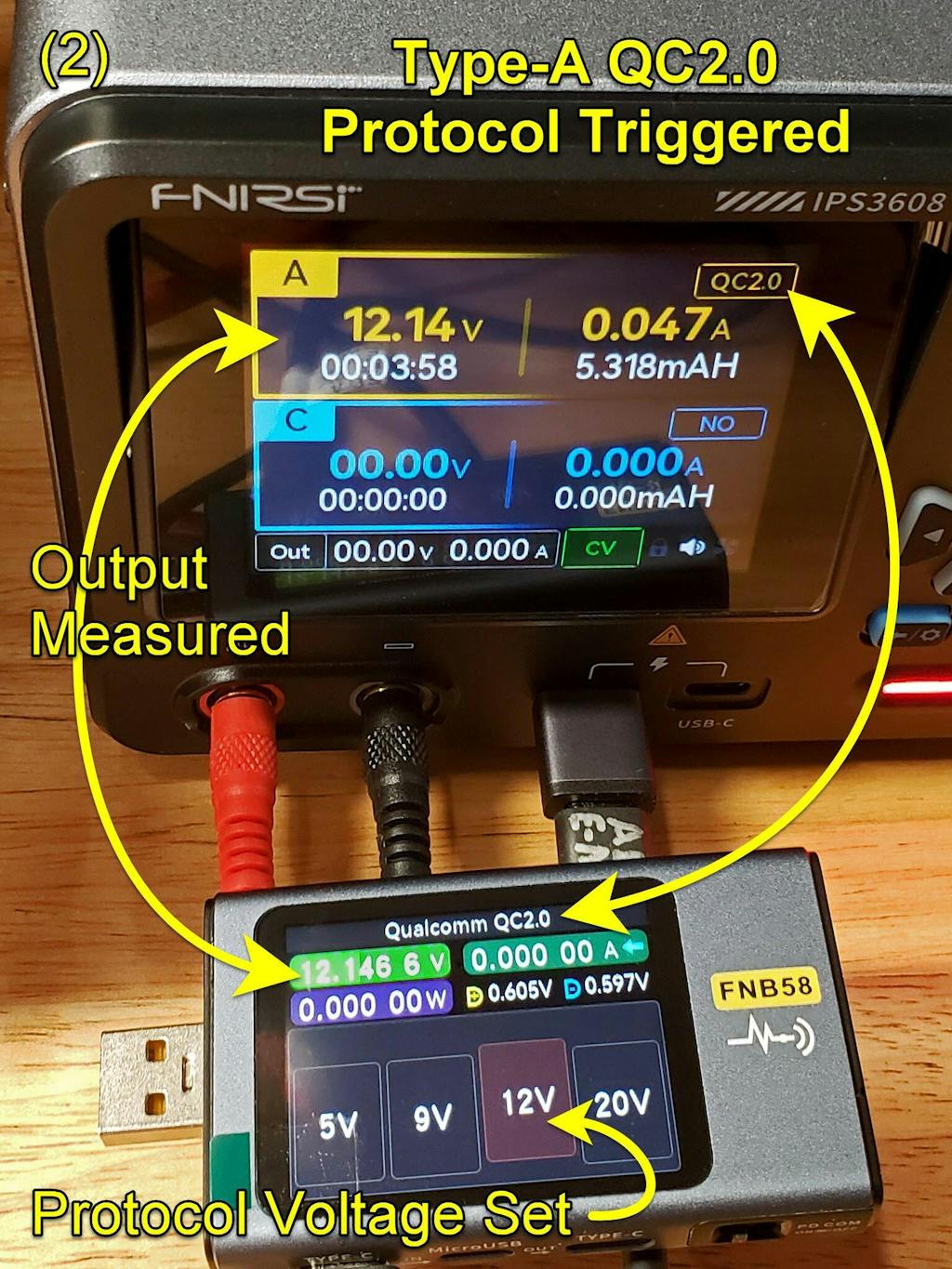

QC2.0
QC3.0

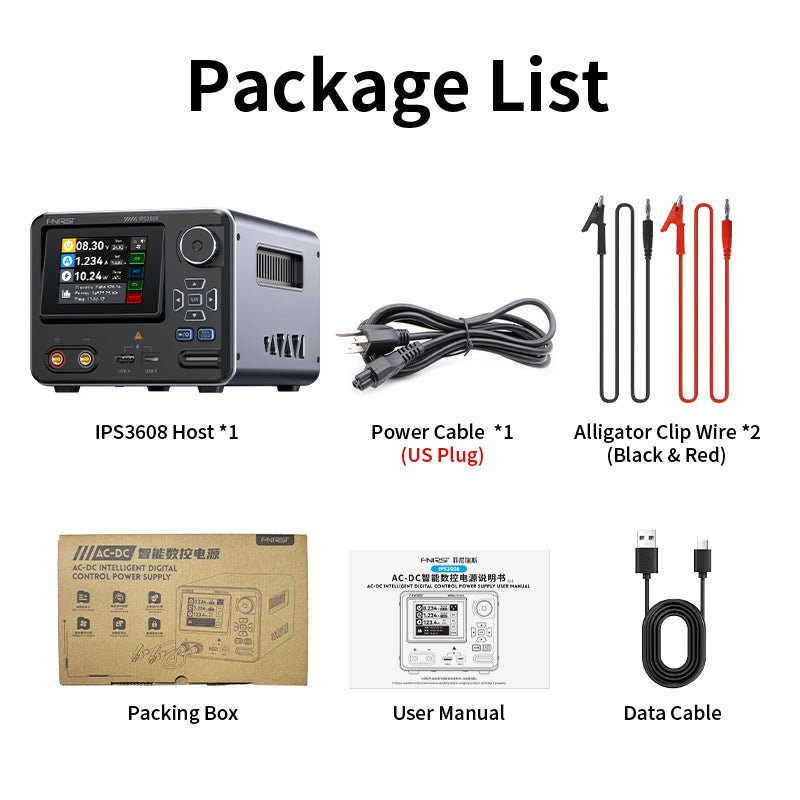

Package List:

◉ IPS3608 Host × 1
◉ Power Cable × 1 (US or EU Plug)
◉ Alligator Clip Wire × 2 (Black & Red)
◉ Data Cable × 1
◉ User Manual × 1
◉ Packing Box × 1

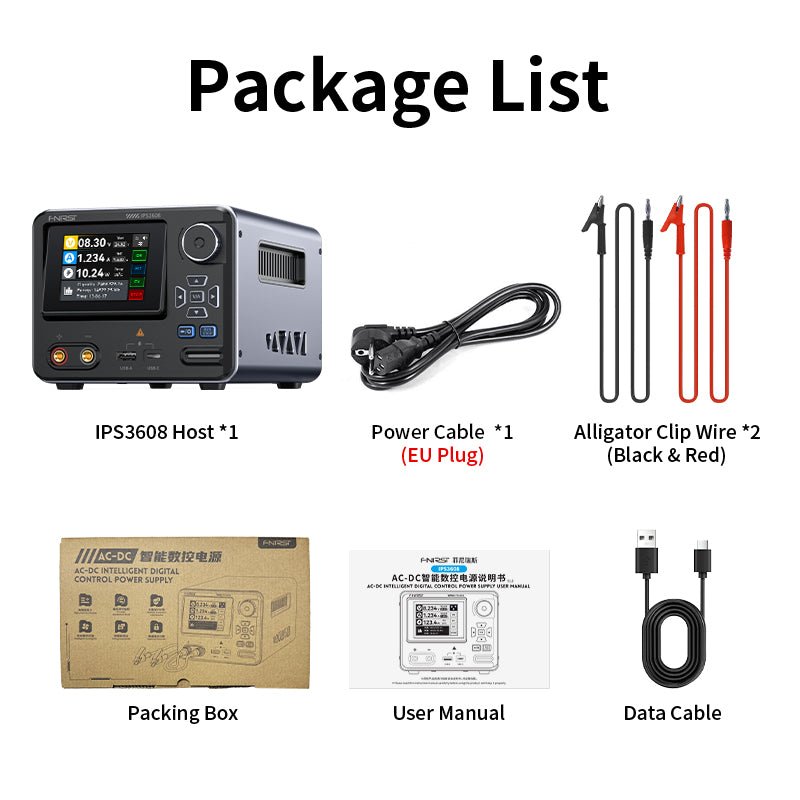

Package List:

◉ IPS3608 Host × 1
◉ Power Cable × 1 (US or EU Plug)
◉ Alligator Clip Wire × 2 (Black & Red)
◉ Data Cable × 1
◉ User Manual × 1
◉ Packing Box × 1

Using Environment and Precautions

The device should be stored in a soft case, and the operating environment should be at a temperature of -5~40℃, and the relative humidity should not exceed 80%.

The device should be stored in a clean and dry place to avoid moisture, mold, heavy pressure, mechanical damage,humidity and direct sunlight.

Avoid using in the rain or fog, avoid dropping or shocking.

When the screen on the LCD does not light up, it indicates that the voltage is too low, and it needs to be charged in time.
