Highlights
✦ Fnirsi oscilloscope has a real-time sampling rate of up to 1GSA/S and an analog bandwidth of 100MHZ * 2. Fnirsi oscilloscope can be triggered by single/normal/automatic, it can be used freely for both periodic analog signals and aperiodic digital signals.
✦ DDS Function Signal Generator : Chopping output 2.5 VPP, signal frequency steps are 1 HZ, support 14 kinds of function signals and a customizable chopping signal, which can store up to 1000 customized chopping signals.
✦ Easily Measuring : Cursor measurement function, when manually reading amplitude-frequency parameters, you do not need to read the background scale unit and quantity, and you can directly get the peak-to-peak value and frequency without conversion.
✦ Easy to Observe : Equipped with high-efficiency one-button AUTO, adaptive 25%, 50%, 75% trigger, can display the measured waveform without cumbersome adjustment; the display is equipped with a 7-inch 800*480 resolution high-definition LCD screen.
✦ Lissajous Graphic Display & FFT Viewing: Lissajous graphic display function can be used to compare the amplitude, frequency and phase of the two sets of signals. FFT viewing function can roughly estimation of the harmonic content of the signal.
**Advanced Signal Analysis and Generation**

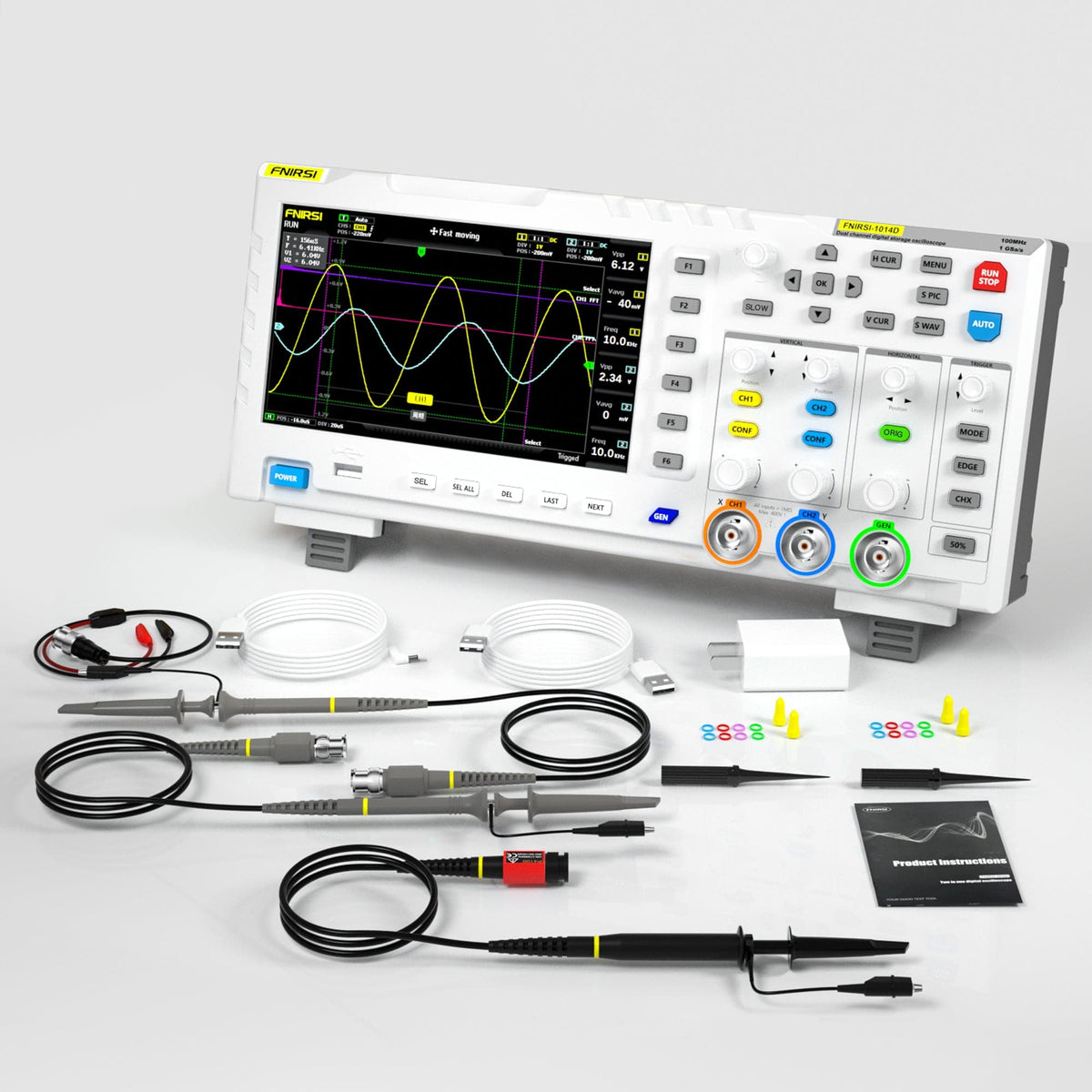

The FNIRSI-1014D Digital Oscilloscope is a versatile tool designed for both hobbyists and professionals in the electrical field. With a dual channel input and a 100MHz*2 analog bandwidth, this oscilloscope is capable of capturing signals with precision and clarity. The 1GSa/s real-time sampling rate ensures that even the fastest signals are captured without any loss of detail. The oscilloscope's trigger modes, including single, normal, and auto, allow for flexible triggering options, making it suitable for both periodic and aperiodic signals.
**Comprehensive Signal Generation and Storage**
The FNIRSI-1014D oscilloscope is not just a signal analyzer; it doubles as a signal generator. With its built-in DDS function, it can produce 12 standard function signals and a customizable chopping signal. The chopping output feature, with a 2.5vpp amplitude, is particularly useful for generating irregular shaped signals. The oscilloscope's storage depth of 240Kbit and 1GB storage space allow for the storage of up to 1000 screenshots and 1000 sets of waveform data, making it an ideal tool for capturing and analyzing complex signals.
**User-Friendly Interface and Convenience**
The oscilloscope's user-friendly interface is designed to enhance the user experience. The 7-inch 800 * 480 resolution color TFT LCD display provides bright and clear visuals, while the cursor measurement function simplifies manual reading of amplitude and frequency parameters. The one-button auto feature automatically adjusts the oscilloscope for optimal viewing, and the one-button waveform storage and screenshot function make it easy to capture and save important waveforms. The powerful waveform image manager allows for efficient browsing, viewing, and analysis of captured signals, making it a valuable tool for both hobbyists and professionals.
Features:
- Dual Channel
- 2 in 1: Digital Oscilloscope + DDS Function Signal Generator
- 1GSA/S sampling rate, 100MHz * 2 analog bandwidth.
- Complete trigger function (single/normal/automatic).
- Capable of storing up to 1000 customized chopping signals.
- high-voltage protection module.
- One-button AUTO and adaptive trigger (25%, 50%, 75%).
- 7-inch 800*480 resolution high-definition LCD screen.
- Powerful Waveform Picture Manager.
- One-key Screenshot and Saving.
- Cursor measurement function.
- USB Picture Export
- Lissajous Graphic Display & FFT Viewing.
- Ideal for both periodic analog and aperiodic digital signals.
Digital Oscilloscope Specification:
Brand
FNIRSI
Model
1014D
Channels
2
Material
High-quality ABS
Analog Bandwidth
100MHz * 2
Sampling Rate
1GSa/s
Vertical Sensitivity
50mV/div ~ 500V/div
Horizontal Timebase
5OS/div ~ 10nS/div
Storage Depth
240Kbit
Input Resistance
1MΩ
ADC Precision
8bits
Rise Time
< 3nS
Coupling
AC/DC
Trigger Modes
Auto / Normal / Single
Trigger Edge
Rising edge / Falling edge
External Trigger Voltage
0~40 V
Maximum Test Voltage:
40V (lX probe), 400V (10X probe)
Waveform Manager
Support (1000 pic + 1000 waveform)
USB Export
Support
Capture Output
Support
Power Supply
5V 2A/3A/4A
Frequency Precision
±0.01%
Roll Mode
Support
One-button AUTO
Support
Display
7-inch 800*480 resolution color TFT LCD
Dimensions
310mm * 145mm * 70mm
Parameter
12 kinds in total
Generator
14 kinds in total
Signal Generator Specification:
Channels
1
Waveform Type
14 standard signals (@ 2.5vpp) + 1 customizable signal (Only the Frequency is adjustable)
Capture Output
Supprot
Sine Wave Max Frequency
10MHz
Other Wave Max Frequency
2MHz
Customize Signal Max Frequency
1MHz
Frequency Resolution
1Hz
Using Environment and Precautions
The device should be stored in a soft case, and the operating environment should be at a temperature of -5~40℃, and the relative humidity should not exceed 80%.
The device should be stored in a clean and dry place to avoid moisture, mold, heavy pressure, mechanical damage,humidity and direct sunlight.
Avoid using in the rain or fog, avoid dropping or shocking.
When the screen on the LCD does not light up, it indicates that the voltage is too low, and it needs to be charged in time.
Copyrights
The product specifications are subject to change without notice, allfinal interpretation rights were reserved by FNIRSI Technology Co., Ltd, All trademarks, product images，technical parameters are properties of FNIRSI Technology Co.. Ltd. All rights reserved.
Warranty
30-Day return and refund guarantee (Refer to our Refund Policy), 2-year warranty (only available for orders purchased directly from fnirsi.com), lifetime technique support by FNIRSI.
