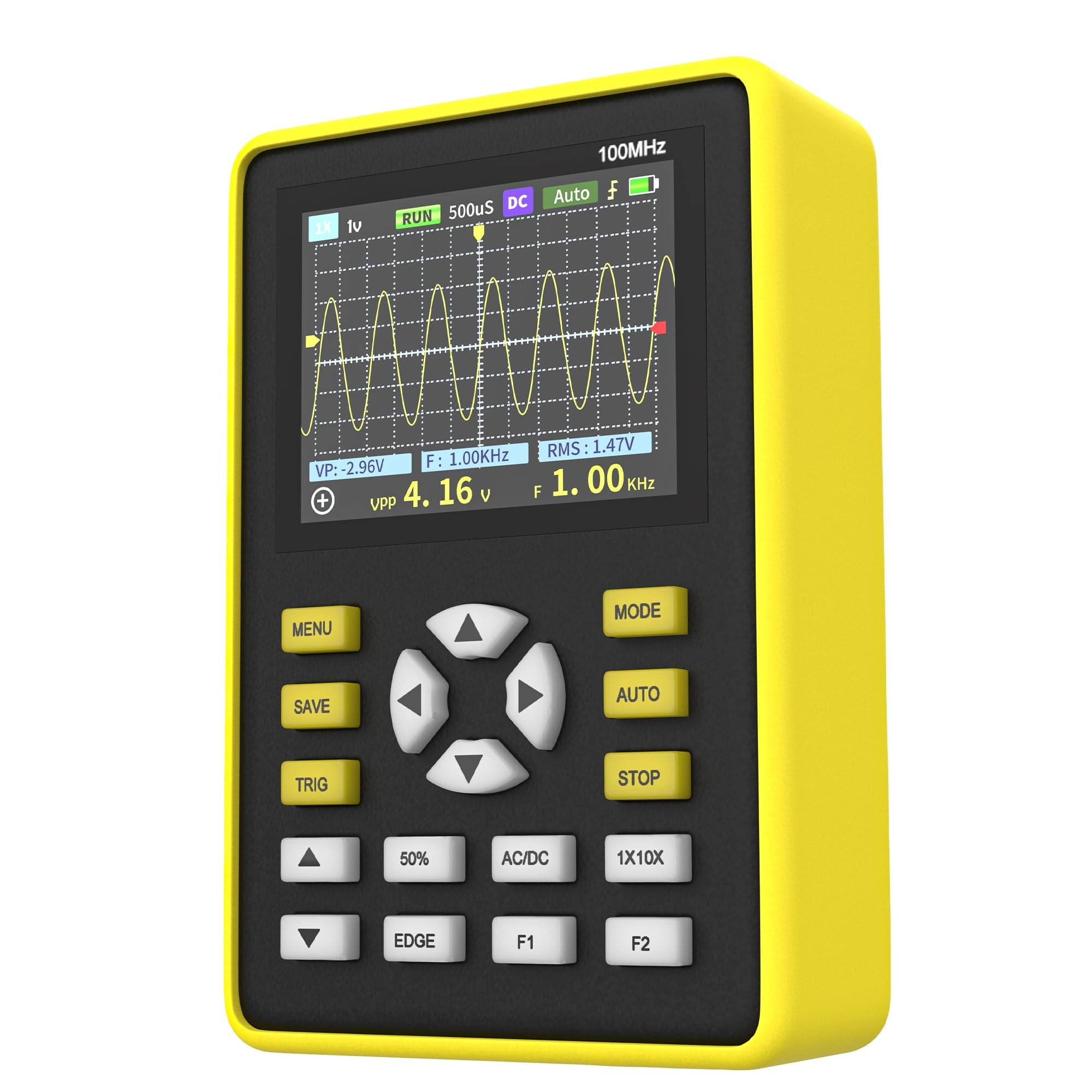

FNIRSI 5012H Digital Handheld Pocket Oscilloscope

FREE SHIPPING OVER $30

Product Details

Basic Specifications:

- Analog Bandwidth: 100MHz

- Maximum Real-Time Sampling Rate: 500MS/s

- Vertical Sensitivity: 50 mV/div ~ 100 V/div

- Horizontal Time Base Range: 50S/div ~ 6nS/div

- Maximum Test Voltage: 80V (1X probe), 800V (10X probe)

- Storage Depth: 128KB

- Input Resistance: 1M

- ADC Precision: 8 bits

- Coupling Mode: AC/DC

- Trigger Mode: Single, Normal, Auto

- Trigger Edge: Ascending/Descending Edge

- External Trigger Voltage: 0-80V

- Display: 2.4 inch - 320*240

- Power Supply: 3000mAh Lithium Battery

- Size: 114mm x 74mm x 33mm

- Weight: 250g

Introduction:

FNIRSI-5012H is a fully functional, cost-effective handheld oscilloscope aimed at users in the maintenance and R&D industries. Equipping with100MHz analog bandwidth and a real-time sampling rate of 500MS/s. Built-in high voltage protection module, up to 400V continuous voltage and 800V peak voltage. With 2.4-inch 320*240 resolution high-definition LCD screen. 64M storage space, can store up to 2000 waveform pictures. Built-in 3000mah high-quality lithium battery, battery life up to 12 hours. And also with high-quality silicone protective case, anti-slip and anti-fall, soft and comfortable.

Display and Technology:

- Display: 2.4 inch color screen

- Afterglow display technology

- Memory compression technology for flicker-free waveform refresh

Functionality and Features:

- Intelligent anti-burn, 1X can withstand up to 600V withstand voltage

- Full trigger function (single, normal, automatic)

- One-button waveform storage with built-in 64M storage space

- Powerful waveform file manager supporting various functions

- Up to 12 parameters measurement including voltage, frequency, and time

- Freeze function for waveform display (pause function)

- High efficiency one-button AUTO

- Screen brightness adjustment

- Anti-slip anti-drop silicone sleeve for protection

- Ultra small volume, easy to carry

Connectivity and Power:

- Equipped with a 3000mAh rechargeable lithium battery for 8 hours of continuous use

- Power supply via Micro USB data line

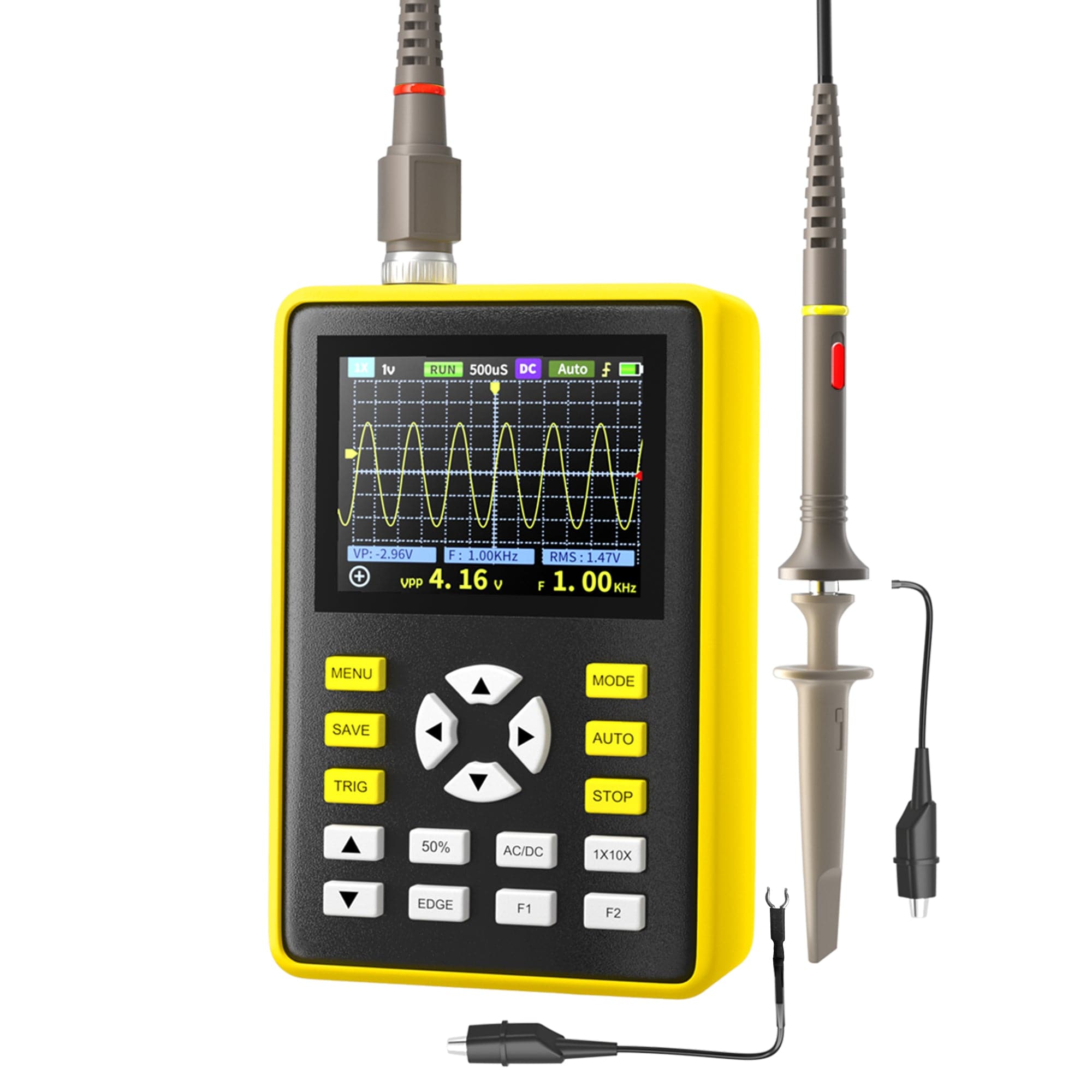

- Package includes: FNIRSI-5012H oscilloscope host, matching 100MHz probe (1X and 10X), Micro USB data line, user manual (English), high-quality package

Package Size:

- ‎ 7.09 x 4.41 x 1.89 inches; 0.66 pounds

- 18 × 11 × 4.8 cm; 0.299 kg

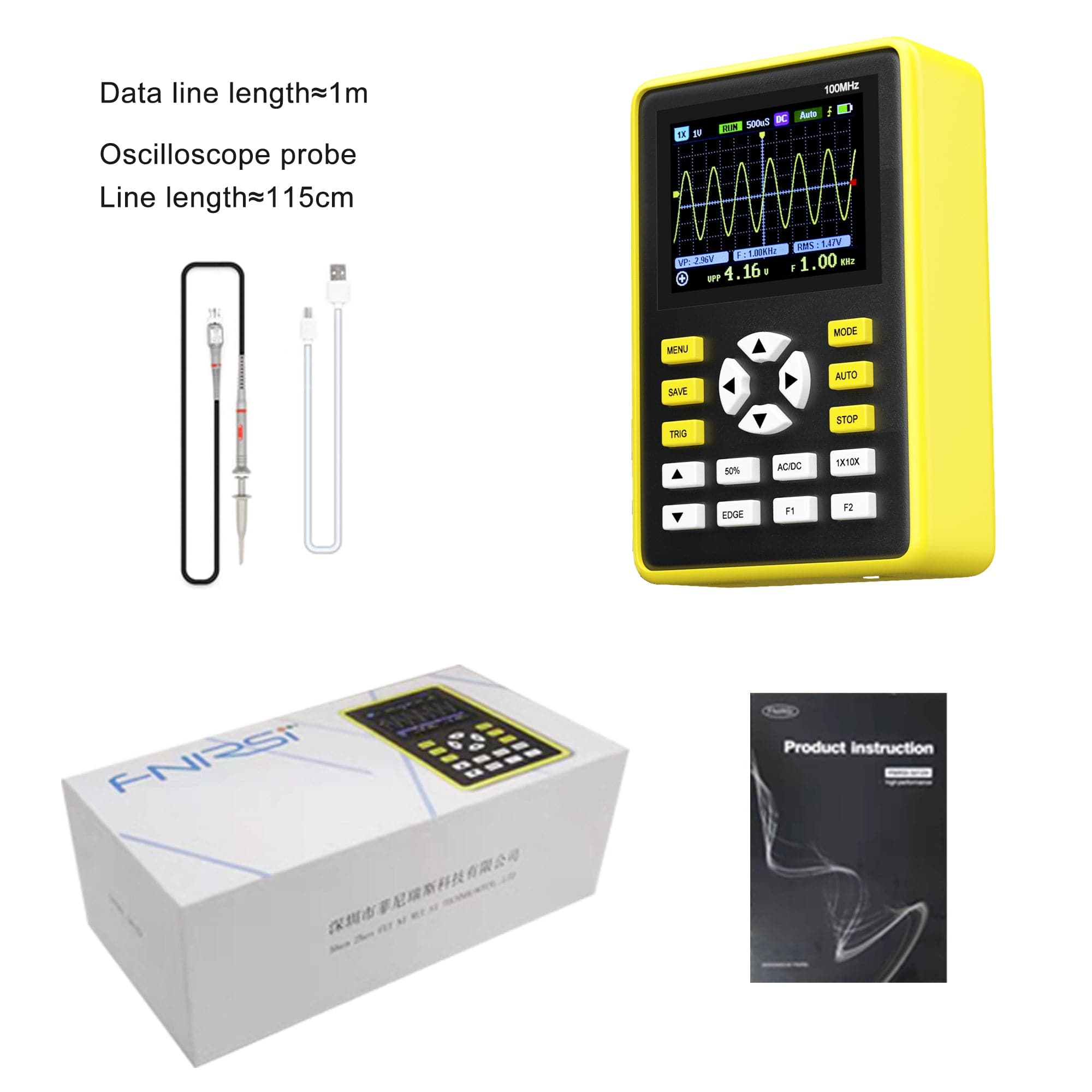

Package Contents:

- 1 x FNIRSI-5012H oscilloscope host

- 1 x Matching 100MHz probe(1X and 10X)

- 1 x Micro USB data line

- 1 x User manual (English)

- 1 x High quality package

Manual:

Warning Tips:

1. Electrical Safety:Always ensure that the device is used in accordance with electrical safety standards to prevent electric shock or damage to the equipment.

2.High Voltage: Exercise caution when working with high voltage signals. Make sure to use appropriate safety measures and protective gear to avoid injury.

3. Proper Grounding: Ensure that the oscilloscope is properly grounded to prevent electrical hazards and ensure accurate measurements.

4. Overloading: Avoid applying signals that exceed the specified input voltage range to prevent damage to the device.

5. Heat Dissipation: Allow the device to dissipate heat effectively by ensuring proper ventilation around the device during operation.

6. Firmware Updates: When performing firmware updates, ensure that the process is carried out correctly to avoid any potential disruptions or errors in the operation of the device.

7. Battery Usage: Follow the manufacturer's instructions for charging and using the battery to prevent overheating, fire, or explosion hazards.

8. Storage and Transportation: Store and transport the device carefully to prevent physical damage or exposure to extreme environmental conditions.

9. User Manual: Always refer to the user manual for proper usage instructions, safety precautions, and troubleshooting guidelines.

10. Maintenance: Regularly inspect and maintain the device to ensure optimal performance and safety. If any abnormalities are detected, discontinue use and seek professional assistance.
